NKK Switches Toggle Switch Panel Mount On-Off-On DPDT Screw Terminal 30 V dc 125 V ac S823

Free Delivery in India | Lowest Global Shipping Charges

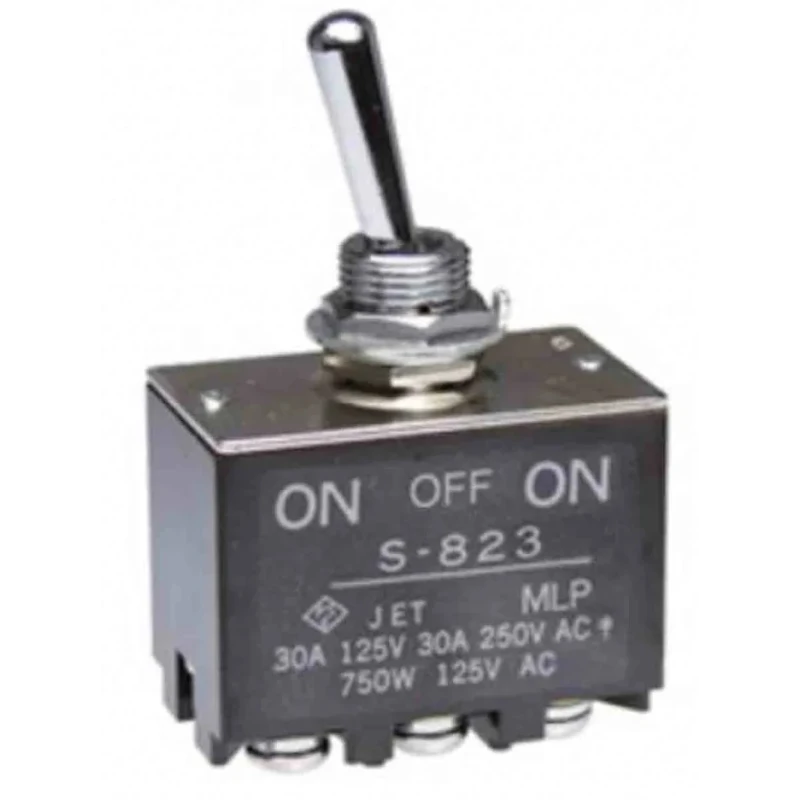

NKK Switches Toggle Switch Panel Mount On-Off-On DPDT Screw Terminal 30 V dc 125 V ac S823

Name: NKK Switches Toggle Switch Panel Mount On-Off-On DPDT Screw Terminal 30 V dc 125 V ac S823
Brand: NKK Switches
SKU: 421918
Price: 20.22 USD
Availability: InStock



Category Toggle Switch Brand NKK Switches Condition New

Specifications

Country of Origin	Japan
Brand	NKK Switches
Height	68mm
Length	42mm
Model	S823
Mount Type	Panel
Series	S
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Switch Configuration	3PDT
Minimum Operating Temperature	-10°C
Panel Cutout Size	12.5 mm
Terminal type	Screw
Standards/Approvals	UL, CSA
Switch Operation	On-Off-On
Actuator Length	22mm
Contact DC Voltage	30V dc
Switch Contact Current	30A
Mechanical Life	50000Operations
Contact AC Voltage	125V ac
Actuator Material	Chrome Plated Brass

Key Features

Supports a high contact current of 30A for robust performance.
Equipped with screw terminal type for secure connections.
Panel cutout size precisely measures 12.5 mm for accurate mounting.
Actuator is made of chrome plated brass ensuring durability and corrosion resistance.
Operates reliably within the temperature range of -10°C to 70°C.
Designed for mechanical life up to 50,000 operations ensuring longevity.
Certified with UL and CSA standards for quality assurance.

Product Description

NKK Switches S823 Toggle Switch is a panel mount switch designed for industrial and electrical control applications. It features an On-Off-On operation with DPDT (Double Pole Double Throw) contact configuration, allowing versatile switching functionality at 30 V dc and 125 V ac ratings.

The switch is built with high-quality materials such as chrome plated brass actuator and brass contacts plated with silver or nickel for enhanced conductivity and corrosion resistance. Its robust design supports a high contact current of 30A, suitable for demanding electrical environments.

This toggle switch is engineered to operate reliably in temperature ranges from -10°C to 70°C, ensuring stable performance under variable environmental conditions. It guarantees a mechanical life of at least 50,000 operations, testifying to its durability and long service life.

The device mounts securely to panels using a 12.5 mm cutout and employs screw terminals for dependable wiring connections. Its dimensions - 68 mm in height and 42 mm in length - provide compatibility with various equipment setups.

NKK Switches S823 meets UL and CSA certification standards, assuring compliance with international safety and performance regulations. Manufactured in Japan, this product belongs to the S series of toggle switches known for quality and reliability.

High contact current capacity of 30A ensures strong electrical handling. On-Off-On switch operation enables versatile circuit control. Panel mount design with a 12.5 mm cutout facilitates straightforward installation. Durable chrome plated brass actuator resists wear and corrosion.

Wide operating temperature range from -10°C to 70°C for varied environments. Mechanical lifecycle of 50,000 operations supports long-lasting use. Complies with UL and CSA standards guaranteeing safety and quality.

This toggle switch is ideal for industrial, electronic, and automation applications requiring reliable panel mounting switch solutions. Explore a wide range of Toggle Switches on EnvMart for precise electrical control options.
