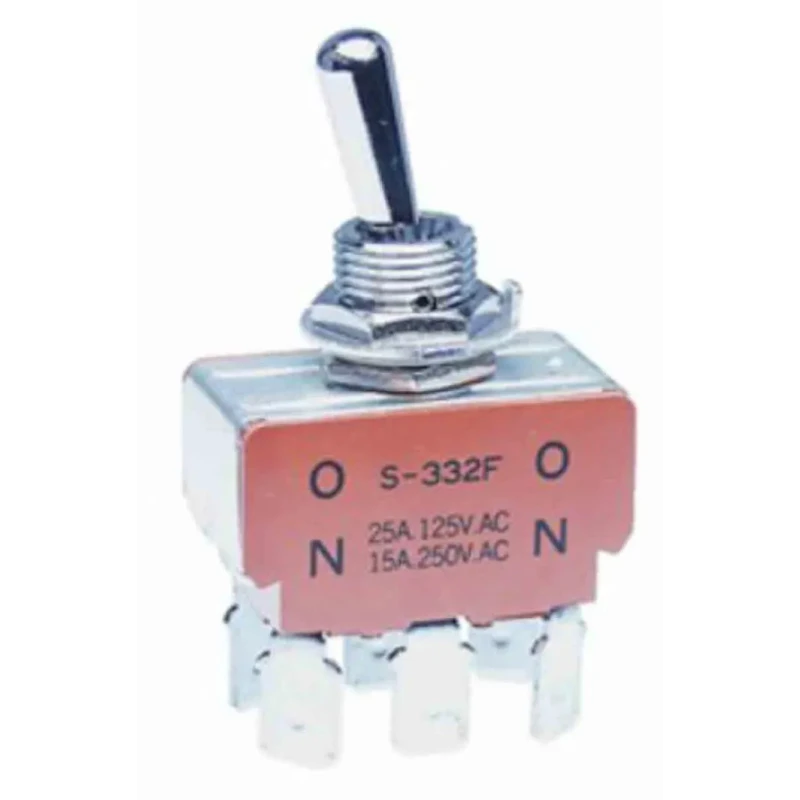

NKK Switches Toggle Switch Panel Mount On-On DPDT Quick Connect Terminal 30 V dc 125 V ac S332F

Free Delivery in India | Lowest Global Shipping Charges

NKK Switches Toggle Switch Panel Mount On-On DPDT Quick Connect Terminal 30 V dc 125 V ac S332F

Name: NKK Switches Toggle Switch Panel Mount On-On DPDT Quick Connect Terminal 30 V dc 125 V ac S332F
Brand: NKK Switches
SKU: 401098
Price: 1638.27 INR
Availability: InStock



Category Toggle Switch Brand NKK Switches Condition New

Specifications

Country of Origin	Philippines
Brand	NKK Switches
Height	59.8mm
Length	33.2mm
Model	S332F
Mount Type	Panel
Series	S
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-10°C
Panel Cutout Size	12.5 mm
Terminal type	Quick Connect
Standards/Approvals	CSA, UL
Switch Operation	On-On
Actuator Length	17.5mm
Contact DC Voltage	30V dc
Switch Contact Current	20A
Mechanical Life	50000Operations
Contact AC Voltage	125V ac
Actuator Material	Chrome Plated Brass

Key Features

This toggle switch features a DPDT contact configuration for reliable operation.
It is designed with On-On switch operation for dual circuit control.
Mount type is panel mount suitable for secure installation.
Terminals employ quick connect style for easy wiring and connectivity.
The switch supports a contact current rating of 20A for medium/high capacity use.
Panel cutout size measures 12.5 mm for precise fitting.
The actuator length is 17.5 mm and crafted from chrome plated brass for durability.
Operating temperature ranges from -10°C to 70°C ensuring broad environmental tolerance.

Product Description

NKK Switches S332F toggle switch is a high-quality panel mount switch designed with a Double Pole Double Throw (DPDT) contact configuration. Rated for 30 V dc and 125 V ac, it features quick connect terminals for efficient electrical connections, making it suitable for medium and high current applications up to 20A.

The switch operation is On-On type, allowing control of two separate circuits. It is designed for robust industrial and automation applications where reliable switching is critical.

The actuator is made of chrome plated brass, providing enhanced durability and corrosion resistance, with a length of 17.5 mm that allows easy manual operation. The panel cutout size is 12.5 mm, allowing precise mounting in control panels.

With an operating temperature range from -10°C to 70°C, this toggle switch performs reliably in a variety of environmental conditions. The height and length of the switch are 59.8 mm and 33.2 mm respectively, making it compact yet sturdy.

This product conforms to recognized industry safety standards including CSA and UL certifications. It belongs to the S series, known for high mechanical life rated at 50,000 operations, ensuring long-term performance and reliability.

The product is manufactured in Philippines and complies with RoHS3 standards, reflecting environmental compliance. DPDT contact configuration for dual circuit control. On-On switch operation with panel mount design. Quick connect terminal type for easy wiring.

20A contact current capacity for medium/high load applications. Chrome plated brass actuator for durability. Operating temperature range from -10°C to 70°C. Mechanical life of 50,000 operations ensures longevity. Meets CSA and UL certifications for safety.

Suitable for electrical, automation, and control systems.

This toggle switch is ideal for industrial, automation, electrical equipment, manufacturing, and control panel applications. Its reliable DPDT contacts and mechanical endurance make it a preferred choice for demanding environments.
