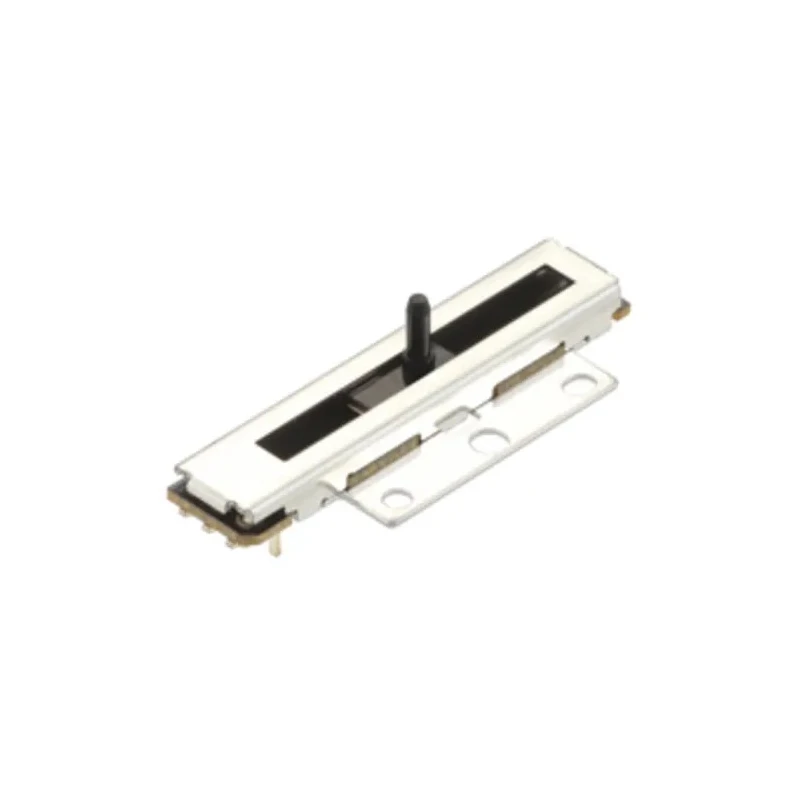

Alps Alpine Through Hole Resistive Position Sensor 5V, 3-Pin RDC1022A05
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Height | 5mm |
| Model | RDC1022A05 |
| Technology | Resistive |
| Sensor Type | Position Sensor |
| Width | 6.9mm |
| Mount Type | Through Hole |
| Series | RDC10 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 5V |
Key Features
- Through hole mount for secure mechanical connection to circuit boards.
- Resistive technology ensures precise position sensing.
- Operating voltage up to 5 volts suitable for low-voltage applications.
- Wide operating temperature range from -30°C to 85°C ensures reliable use in various environments.
- Compact sensor dimensions with 5mm height and 6.9mm width support space-constrained installations.
- 3-pin configuration simplifies integration and wiring.
- Manufactured in Japan with high-quality standards and reliability.
- Series RDC10 provides consistent performance in motion sensing applications.
Product Description
Alps Alpine RDC1022A05 through hole resistive position sensor is designed for accurate and reliable position detection in electronic systems. Operating at a maximum supply voltage of 5V and featuring a 3-pin through hole mount, this sensor offers a compact footprint with dimensions 5mm height and 6.9mm width, ideal for integration onto PCBs where space is limited.
The resistive technology utilized in this sensor enables precise measurement of positional changes, making it suitable for various electronic and industrial applications requiring position feedback.
With an operating temperature range of -30°C to 85°C, the RDC1022A05 is capable of performing reliably in diverse environmental conditions such as industrial machinery control, automation equipment, and instrumentation.
Manufactured in Japan, this sensor is part of the RDC10 series and meets high-quality manufacturing standards, although it is not certified for automotive use. Its through hole style mounting enhances mechanical stability on the circuit board platforms.
Through hole mount for secure mechanical connection to circuit boards. Resistive technology ensures precise position sensing. Operating voltage up to 5 volts suitable for low-voltage applications. Wide operating temperature range from -30°C to 85°C ensures reliable use in various environments.
Compact sensor dimensions with 5mm height and 6.9mm width support space-constrained installations. 3-pin configuration simplifies integration and wiring. Manufactured in Japan with high-quality standards and reliability.
Series RDC10 provides consistent performance in motion sensing applications. Not compliant with automotive standards, intended for general electronic sensor use.
This sensor is ideal for industrial electronics, laboratory instruments, automation systems, and other applications where accurate positional sensing is required to optimize performance and control.
Browse EnvMart’s extensive catalog of reliable Position Sensors and electronic components to meet your design and production needs efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this sensor is 5V, making it suitable for low-voltage applications.
The operating temperature range of the RDC1022A05 is from -30°C to 85°C, allowing reliable use in various environments.
This model has a height of 5mm and a width of 6.9mm, making it compact for space-constrained installations.
The sensor features a 3-pin configuration, which simplifies integration and wiring.
It uses a through hole mount, providing a secure mechanical connection to circuit boards.
This sensor utilizes resistive technology to ensure precise position sensing.
It is suitable for various electronic and industrial applications requiring position feedback, such as industrial machinery control and automation equipment.
No, this sensor is not compliant with automotive standards and is intended for general electronic sensor use.
This sensor is manufactured in Japan, adhering to high-quality standards.
The RDC1022A05 is part of the RDC10 series, which provides consistent performance in motion sensing applications.
The resistive technology enables precise measurement of positional changes, enhancing its effectiveness in applications requiring accurate position detection.
