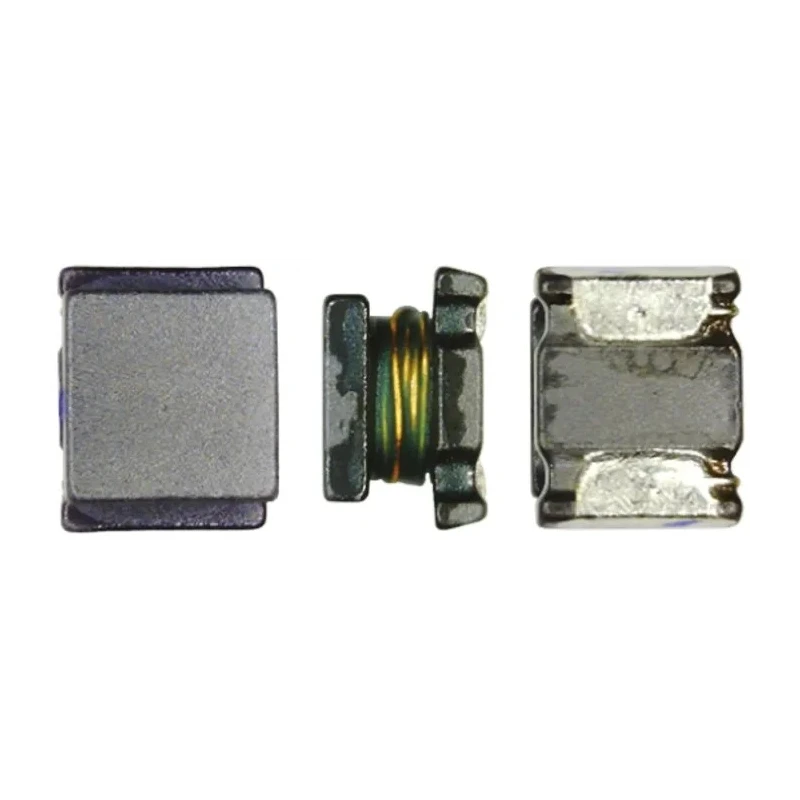

Murata Wirewound Surface Mount Inductor 330μH ±10% 60mA Ferrite Core 1210 Package LQH32CN331K23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32CN331K23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 60mA |
| Maximum DC Resistance | 13Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5.6MHz |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite core to ensure high efficiency and temperature stability.
- Packaged in a 1210 case size suitable for compact PCB mounting.
- Maximum DC current rating of 60mA to handle low power operation.
- Low DC resistance of 13Ω minimizes power loss during use.
- Operating temperature range from -40°C to 85°C for reliable performance in various conditions.
- Termination style is solder friendly for easy PCB assembly.
- RoHS compliant, ensuring environmental safety standards are met.
- Self-resonant frequency up to 5.6MHz supports a broad frequency range.
Product Description
Murata LQH32CN331K23L is a high-quality wirewound surface mount inductor, featuring a ferrite core with 330μH inductance and ±10% tolerance. It is designed for low current applications with a maximum DC current of 60mA, making it suitable for filtering and energy storage in electronic circuits.
The inductor comes in a compact 1210 package size with dimensions 3.2mm length, 2mm height, and 2.5mm depth, which facilitates space-saving PCB design. It offers low DC resistance of 13Ω to reduce voltage drop and power loss, enhancing efficiency and thermal stability.
Operating temperature spans from -40°C to 85°C, ensuring reliability across varied industrial and commercial environments. The termination style is solder, providing ease of mounting on printed circuit boards. This device is RoHS compliant, reflecting adherence to international environmental standards.
The inductor supports a maximum self-resonant frequency of 5.6MHz, useful for applications in switching power supplies and signal filtering. Packaged in embossed tape format, it supports automated manufacturing efficiency.
Ferrite core ensures high efficiency and thermal stability. Compact 1210 package for surface mounting on PCBs. Low DC resistance minimizes power loss. Wide operating temperature range for diverse environments. RoHS compliant to meet environmental regulations.
Suitable for filtering inductors in switch mode power supplies. Embossed tape packaging aids in automated insertion. Max self-resonant frequency of 5.6MHz for broad frequency applications. Solder termination style for reliable PCB connectivity.
This inductor is ideal for industrial, consumer electronics, and power management circuits requiring compact, high-performance passive components. Browse the Murata brand and Surface Mount Inductors category on EnvMart for a wide selection of similar components meeting various application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 330μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 60mA, making it suitable for low power applications.
The dimensions of the 1210 package are 3.2mm in length, 2mm in height, and 2.5mm in depth.
It supports a maximum self-resonant frequency of 5.6MHz, which is useful for a variety of applications.
The operating temperature range is from -40°C to 85°C, ensuring reliable performance in various conditions.
This inductor features a ferrite core, which enhances efficiency and thermal stability.
The termination style is solder, which facilitates easy mounting on printed circuit boards.
Yes, this inductor is RoHS compliant, meeting international environmental safety standards.
The inductor has a low DC resistance of 13Ω, which minimizes power loss during use.
It is packaged in embossed tape format, which supports automated manufacturing processes.
This model is suitable for applications such as filtering inductors in switch mode power supplies and energy storage in electronic circuits.
The country of origin for this inductor is Japan.
