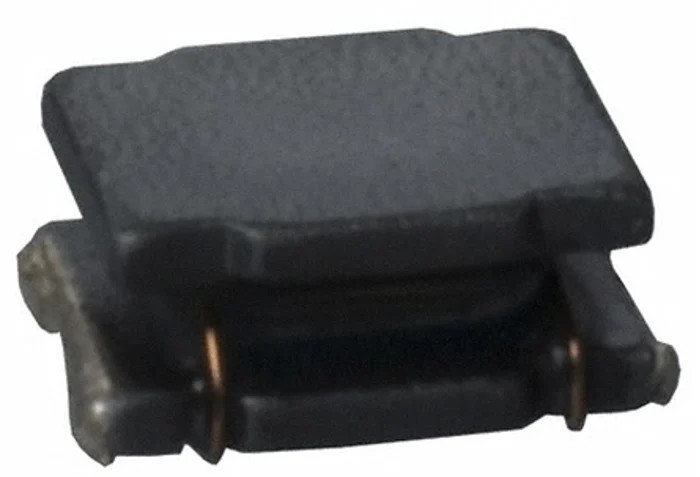

Murata LQH43PN470M26L Shielded Wirewound SMD Inductor, 47μH ±20%, 470mA, Ferrite Core, 4532 Case
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43PN470M26L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 4532 |
| Maximum DC Current | 470mA |
| Pin Count | 2 |
| Maximum DC Resistance | 718mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 8MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact shielded wirewound construction ensures high inductance and EMI reduction.
- 47μH rated inductance with ±20% tolerance for precise circuit requirements.
- Maximum DC current handling of 470mA allows for reliable power delivery.
- Ferrite core and resin coating provide enhanced mechanical strength and thermal stability.
- SMD 4532 case with 2-pin solder termination fits modern PCB layouts.
- RoHS compliant, suitable for environmentally conscious industrial applications.
- Operates in temperature ranges from -40°C to 85°C for broad ambient compatibility.
- Low DC resistance (718mΩ max) ensures minimal losses in high-frequency designs.
Product Description
Murata LQH43PN470M26L is a shielded wirewound surface mount inductor engineered for high-performance electronics. It features a 47μH inductance with ±20% tolerance, housed in a standard 4532 SMD case. The robust ferrite core and copper wire winding optimize electromagnetic interference suppression and support reliable power supply booster circuits.
This model utilizes advanced wirewound and shielding technology, ensuring improved EMI reduction and optimal circuit inductance. The product delivers up to 470mA of DC current, suitable for demanding power applications in compact devices. Mechanical stability is provided by resin coating over the ferrite core, making the inductor resistant to external shocks and minor board flexing.
The LQH43PN470M26L offers a maximum self-resonant frequency of 8MHz, making it advantageous for high-frequency circuits. Its low DC resistance, just 718mΩ max, minimizes energy losses and heat generation. With a temperature range from -40°C to 85°C, this inductor operates reliably in harsh environments and temperature-sensitive designs.
Designed for surface-mount installation, this inductor has a 4.5mm length, 3.2mm depth, and 2.6mm height, with two solder terminations for secure PCB fixing. RoHS compliance assures its suitability for global manufacturing and eco-conscious projects.
Typical industrial and electronic applications include digital cameras, mobile phones, portable TVs, gaming consoles, and other high-density handheld devices. It is especially relevant for power management, filtering, decoupling, and signal conditioning where compact, shielded inductors are required.
Murata LQH series SMD chip inductors are recognized for quality, durability, and precision. Engineers and manufacturers seeking high-reliability inductance solutions for modern circuit designs will appreciate the LQH43PN470M26L’s electrical and mechanical performance.
Browse more Murata Surface Mount Inductors in the Electronics & Electricals category on EnvMart for advanced passive components tailored to demanding industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Murata LQH43PN470M26L has an inductance value of 47μH with a tolerance of ±20%.
This inductor can handle a maximum DC current of 470mA, making it suitable for various power applications.
The dimensions of this inductor are 4.5mm in length, 3.2mm in depth, and 2.6mm in height.
The maximum self-resonant frequency of the LQH43PN470M26L is 8MHz, which is advantageous for high-frequency circuits.
This model features a ferrite core, which helps in optimizing electromagnetic interference suppression.
The inductor utilizes a solder termination style, which allows for secure PCB fixing.
The LQH43PN470M26L operates reliably within a temperature range of -40°C to 85°C.
Yes, the Murata LQH43PN470M26L is RoHS compliant, making it suitable for environmentally conscious applications.
The maximum DC resistance of this model is 718mΩ, which minimizes energy losses in high-frequency designs.
The LQH43PN470M26L features a wirewound construction, which enhances its inductance and EMI reduction capabilities.
This inductor is packaged in embossed tape, suitable for surface mount applications.
Typical applications include digital cameras, mobile phones, portable TVs, and gaming consoles, particularly in power management and filtering.
