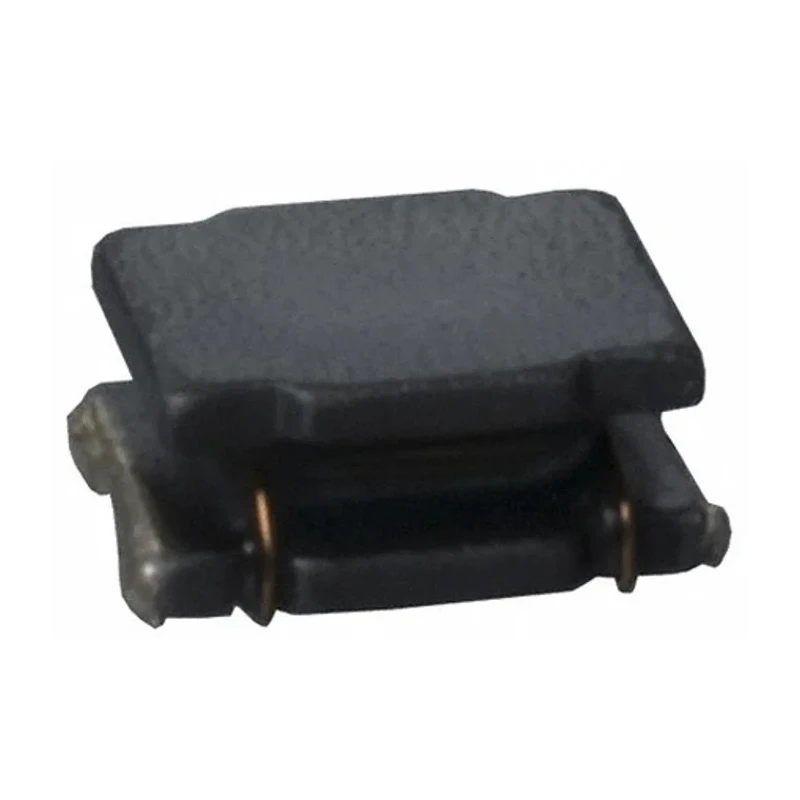

Murata Shielded Wirewound Surface Mount Inductor 22 μH ±20%, 700 mA, Ferrite Core, 4532 Package LQH43PN220M26L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43PN220M26L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 4532 |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 327mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 15MHz |
| Inductor Construction | Wirewound |
Key Features
- Designed for high inductance values with a ferrite core for enhanced magnetic performance.
- Rated maximum DC current of 700 mA enables effective power handling in compact electronics.
- Robust shielding minimizes electromagnetic interference for sensitive PCB designs.
- Wirewound construction provides stable inductance and low DC resistance (327 mΩ max).
- Suitable for high-frequency applications with a self-resonant frequency up to 15 MHz.
- RoHS-compliant and moulded for durability and environmental responsibility.
- Applications include mobile phones, cameras, TVs, game machines, and booster circuits.
Product Description
The Murata LQH43PN220M26L shielded wirewound surface mount inductor is designed for reliable performance in modern electronics requiring precise inductance and robust power handling. Featuring a ferrite core, this SMD chip inductor offers a nominal inductance of 22 μH with a tolerance of ±20 %, ideal for demanding power supply booster circuits and decoupling applications.
This component supports a maximum DC current of 700 mA, making it suitable for power-intensive devices while maintaining low DC resistance of 327 mΩ. The shielded construction significantly minimizes electromagnetic interference, safeguarding signal integrity on densely populated PCBs.
Compact dimensions (4.5 mm length, 3.2 mm depth, 2.6 mm height) facilitate its integration into space-constrained products. The wirewound structure enhances inductance stability and provides high efficiency for high-frequency operations, with a self-resonant frequency up to 15 MHz.
Murata’s resin-coating reinforces the structural durability, ensuring reliable operation over a wide temperature range from -40°C to 85°C. The inductor is RoHS-compliant, reflecting a commitment to sustainable manufacturing.
Typical applications include mobile phones, digital cameras, TVs, game consoles, and any electronics requiring Surface Mount Inductors for supply boosting or noise filtering. The termination style is surface mount, suitable for automated assembly in production environments.
The LQH43PN220M26L is part of Murata’s widely used LQH series, recognized for its high performance and reliability in consumer and industrial electronics. Ferrite core and shielded wirewound construction for low EMI and stable performance.
Supports high inductance values and power handling for compact circuit layouts. Ideal for high-frequency and supply booster circuits in mobile, camera, TV, and gaming electronics. RoHS-compliant and moulded for environmental protection and component longevity.
Dimensions and surface mount compatibility enable efficient, automated PCB integration. Explore other Murata inductors and surface mount components to optimize your circuit designs in the electronics category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal inductance of 22 μH with a tolerance of ±20%.
It supports a maximum DC current of 700 mA, making it suitable for power-intensive applications.
The maximum self-resonant frequency is up to 15 MHz, allowing for high-frequency applications.
The dimensions are 4.5 mm in length, 3.2 mm in depth, and 2.6 mm in height.
It features a ferrite core, which enhances its magnetic performance.
The maximum DC resistance is 327 mΩ, contributing to its efficient performance.
This unit has a surface mount termination style, suitable for automated assembly.
The operating temperature range is from -40°C to 85°C, allowing for versatile applications.
Yes, it is RoHS-compliant, reflecting a commitment to sustainable manufacturing practices.
Typical applications include mobile phones, digital cameras, TVs, and gaming consoles, particularly for supply boosting and noise filtering.
It is packaged in embossed tape, which facilitates easy handling and automated assembly.
This model is part of Murata's LQH series, known for high performance in electronic applications.
