| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Dimensions | 2.09 x 1.53 x 1.42 mm |
| Height | 1.42mm |
| Length | 2.09mm |
| Model | LQW2BAS56NJ00L |
| Depth | 1.53mm |
| Operating Temp | -55→ +125°C |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Package Type | 0805 |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Core |
| Inductance | 0.056μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 500mA |
| Pin Count | 2 |
| Maximum DC Resistance | 340mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.6GHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |

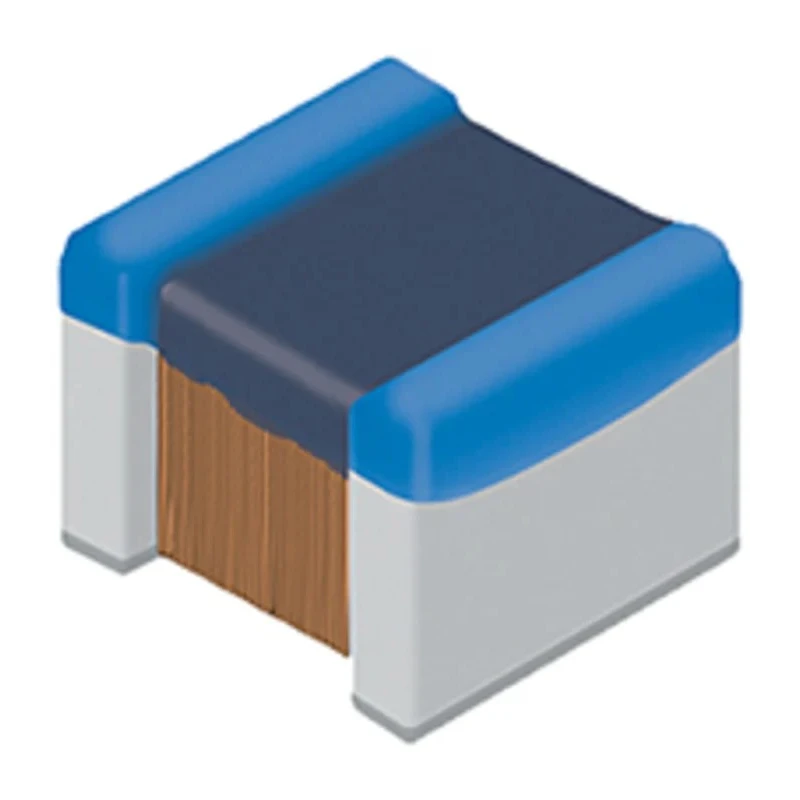

Murata LQW2BAS56NJ00L is a high-precision wirewound surface mount inductor designed for advanced electronic circuitry requiring stable inductance and low losses. This model features a non-magnetic core, minimizing magnetic interference and enhancing performance in sensitive signal applications.
The inductor package size is 0805 with compact dimensions of 2.09 mm length, 1.53 mm depth, and 1.42 mm height, making it ideal for space-constrained PCB designs. It supports a maximum DC current of 500 mA and a maximum DC resistance of 340 mΩ, ensuring efficient current handling and minimal losses.
Its operating temperature range from -55°C to 125°C makes it suitable for use in automotive, industrial, and consumer electronics applications where temperature resilience is critical. The device exhibits a high quality factor of 60 or more, making it well-suited for ultra-high frequency and super-high frequency circuits, including filtering and RF applications.
The LQW2BAS56NJ00L series uses moulded wirewound construction with solder termination style supporting standard PCB assembly processes. This product complies with RoHS directives, reflecting RoHS-certification for environmentally compliant manufacturing.
Packaged in paper tape on reels, it facilitates efficient automated pick-and-place mounting during production runs. Constructed with a non-magnetic core for interference-free operation. Compact 0805 surface mount package for space-saving PCB design.
Maximum DC current rating of 500 mA ensures reliable operation. Low DC resistance of 340 mΩ reduces energy losses. Wide operating temperature range (-55°C to 125°C) supports diverse environments. High quality factor (≥60) suitable for UHF-SHF frequency range.
Moulded wirewound inductor provides durability and performance stability. RoHS compliant manufacturing ensures ecological safety. Solder termination style compatible with standard PCB assembly. Supplied in paper tape packaging ready for automated production.
Ideal for electronics manufacturing, industrial controls, communications, automotive electronics, and RF circuit design. Explore the full product range for Surface Mount Inductors and related components on EnvMart for comprehensive sourcing.
