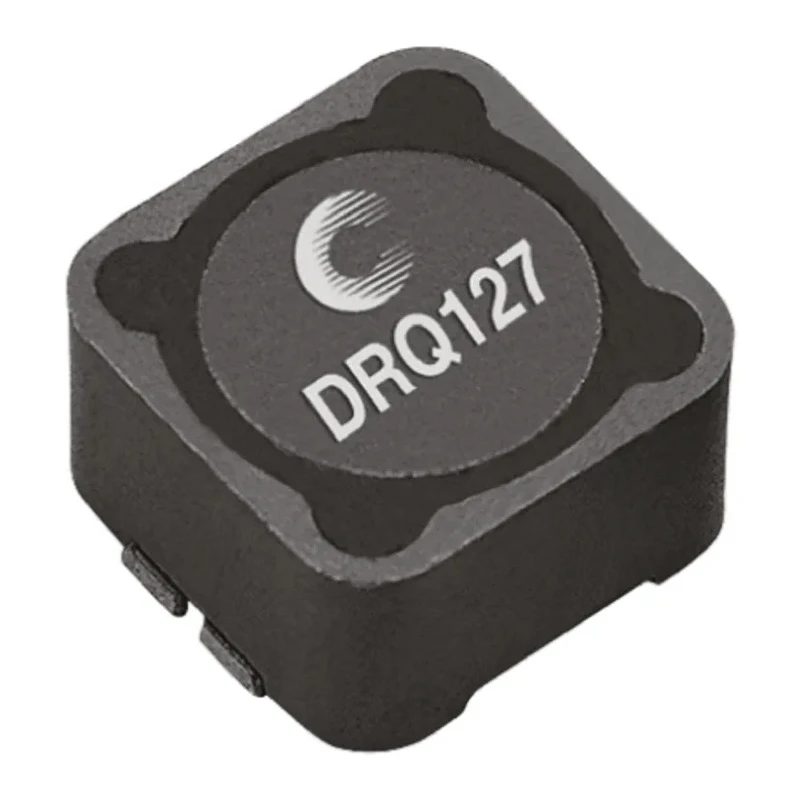

Eaton Shielded Surface Mount Inductor 220 μH ±20% 2.43 A Idc Ferrite Core 125°C DRQ127-221-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton Shielded Surface Mount Inductor 220 μH ±20% 2.43 A Idc Ferrite Core 125°C DRQ127-221-R

Name: Eaton Shielded Surface Mount Inductor 220 μH ±20% 2.43 A Idc Ferrite Core 125°C DRQ127-221-R
Brand: Eaton
SKU: 367416
Price: 1.54 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	8mm
Length	12.5mm
Model	DRQ127-221-R
Depth	12.5mm
Packaging	Reel
Series	DRQ
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	220μH
Standards/Approvals	RoHS
Package/Case	0127
Maximum DC Current	2.43A
Pin Count	4
Maximum DC Resistance	1.5Ω
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Wirewound

Key Features

Features a ferrite core and wirewound construction ensuring reliable inductance characteristics.
Inductance tolerance of ±20% accommodates standard manufacturing variance.
Maximum operating temperature of 125°C suitable for demanding environments.
Surface mount package style with 4 pins and a compact 0127 case size.
Maximum DC resistance is 1.5 ohms optimizing efficiency.
Shielded design to minimize electromagnetic interference in circuit applications.
Available in reel packaging for automated PCB assembly processes.
Operating temperature range from -40°C to 125°C provides versatility.

Product Description

The Eaton DRQ127-221-R is a shielded surface mount inductor engineered with a ferrite core and wirewound construction, delivering an inductance of 220 μH±20% and a maximum DC current capacity of 2.43 A. Its compact 0127 package case and a reel packaging style make it ideally suited for automated surface mount technology (SMT) processes in electronic manufacturing.

Designed to operate reliably across a wide temperature range from -40°C to 125°C, this inductor features a maximum DC resistance of 1.5 ohms which helps to maintain efficiency in power supply circuits. The shielded construction reduces electromagnetic interference, thus enhancing signal integrity in sensitive applications.

The DRQ series dual winding inductors can be used as either single inductors or coupled inductors with a 1:1 turns ratio, making them highly versatile for use in DC-DC converters, VRM inductors for CPU and DDR power supplies, input and output filter chokes, buck and boost converters, and transformer applications such as SEPIC and flyback.

Compliance with RoHS standards ensures this product meets environmental directives. The Eaton DRQ127-221-R model is manufactured in China and is a new product suitable for high-reliability industrial, electronic component, and power management applications in commercial and manufacturing environments.

Features a ferrite core and wirewound construction ensuring reliable inductance characteristics. Inductance tolerance of ±20% accommodates standard manufacturing variance. Maximum operating temperature of 125°C suitable for demanding environments.

Surface mount package style with 4 pins and a compact 0127 case size. Maximum DC resistance is 1.5 ohms optimizing efficiency. Shielded design to minimize electromagnetic interference in circuit applications. Available in reel packaging for automated PCB assembly processes.

Operating temperature range from -40°C to 125°C provides versatility. Explore more Surface Mount Inductors and Eaton products at EnvMart for reliable and optimized electronic solutions.
