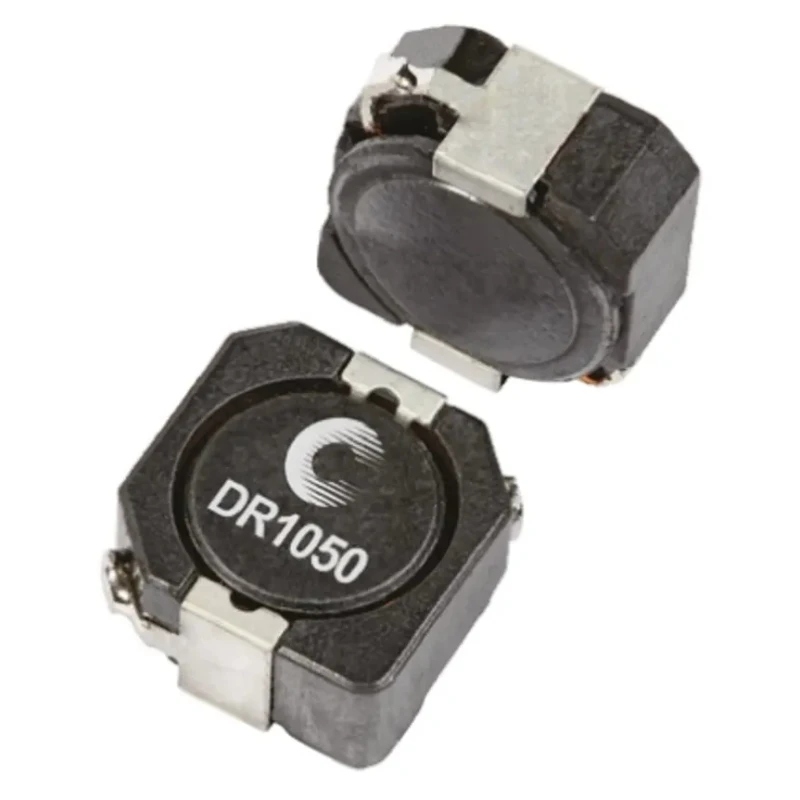

Eaton DR1050 Wirewound Surface Mount Shielded Inductor with Ferrite Core 15μH ±30 % 3.8A IDC DR1050

The Eaton DR1050 is a wirewound surface mount shielded inductor with a ferrite core designed for reliable inductance performance in compact electronic circuits. The device features a 15μH inductance with a tolerance of ±30%, and supports a maximum DC current of 3.8A, making it suitable for power filtering and noise suppression in various applications.

Its magnetically shielded drum core design minimizes electromagnetic interference, enhancing signal integrity in sensitive devices such as computers, DVD players, notebook power supplies, LCD panels, and DC-DC converters. The inductor's surface mount termination facilitates efficient PCB assembly and automated insertion.

With compact dimensions of 10.5mm length, 10.3mm depth, and 5mm height, the DR1050 offers a low profile suitable for space-constrained designs. It complies with RoHS standards and is rated for operating temperatures from -40°C to 125°C, ensuring durability in diverse industrial environments.

Constructed using a wirewound coil on a ferrite core. Magnetically shielded drum core to reduce interference. Compact reel packaging for production efficiency. Maximum self-resonant frequency of 1MHz for high-frequency applications.

Surface mount termination style. Compliance with RoHS standards. Suitable for power devices and noise filtering. Wide temperature range operation. Manufactured in China.

The Eaton DR1050 surface mount shielded inductor is ideal for industrial electronics, laboratory instrumentation, communications equipment, and manufacturing systems requiring compact, reliable inductors with robust shielding and thermal performance. Explore more Surface Mount Inductors and inductive components at EnvMart for your circuit design and manufacturing needs.
