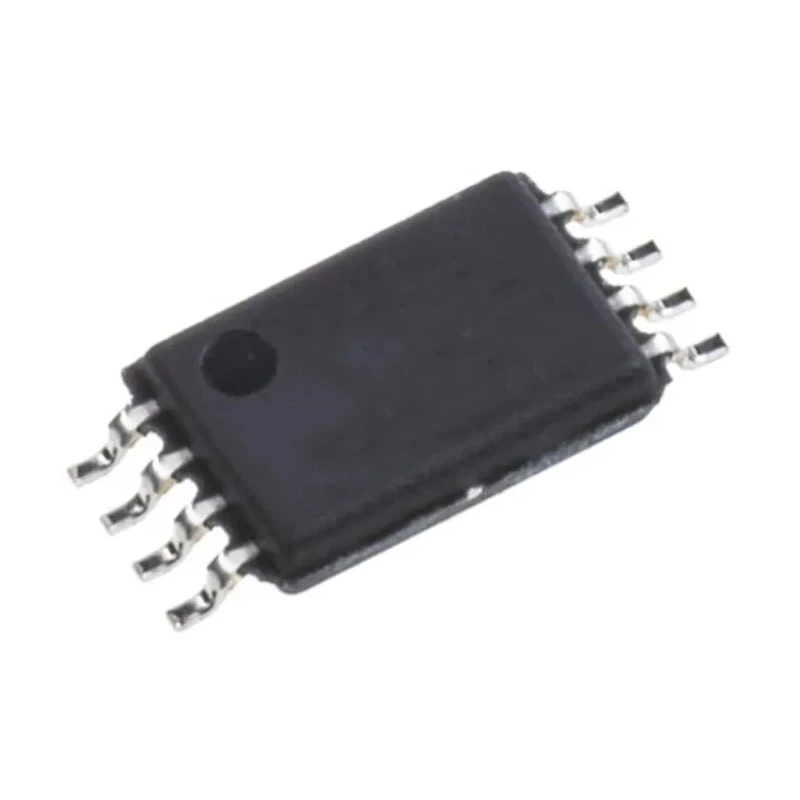

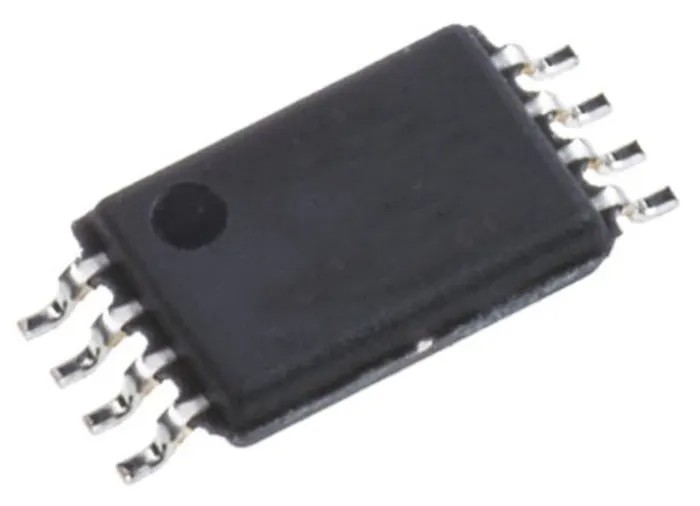

STMicroelectronics RFID & NFC Transceiver 8-Pin TSSOP-8 ST25DV16KC-IE6T3

STMicroelectronics ST25DV16KC-IE6T3 is a dynamic RFID & NFC transceiver integrated circuit packaged in an 8-pin TSSOP-8. It features a 16-Kbit electrically erasable programmable memory (EEPROM), accessible via dual interfaces: an I2C serial link and a Radio Frequency (RF) link. Designed for industrial, commercial, and consumer communication applications, it supports ASK and FSK modulation with a data rate of up to 53 kbps.

The EEPROM memory can be segmented into up to four flexible and protectable areas, providing configurable user memory management. It complies fully with NFC Forum Type 5 specifications and ISO/IEC 15693 standards for contactless communication, ensuring broad compatibility with NFC-enabled devices.

Operating over a wide supply voltage range of 1.8 V to 5.5 V and an extended temperature range from -40°C to 85°C, the device is engineered for durability in demanding environments. The integrated GPO pin communicates critical events to the contact interface including RF field detection and mailbox message availability, facilitating seamless data exchange.

The transceiver package supports compact surface mount technology (SMT) assembly, suitable for integration into space-constrained electronic designs.

This STMicroelectronics transceiver is an exemplary solution for RFID and NFC applications in industrial automation, inventory management, asset tracking, and consumer electronics.

Supports ASK and FSK modulation techniques for versatile signal encoding. Operates at a data rate of 53 kbps, enabling efficient data transfer. Equipped with 8 pins in a TSSOP-8 package for surface mounting. Wide supply voltage range between 1.8 V and 5.5 V enhances compatibility.

Wide operating temperature from -40°C to 85°C ensures reliable performance in harsh environments. Certified RoHS compliant for environmental safety. Contains up to 16-Kbit EEPROM with flexible memory areas accessible via I2C and RF interfaces.

NFC Forum Type 5 tag certified, compatible with ISO/IEC 15693 standards. Features fast transfer mode between RF and contact interfaces. Includes GPO pin for event signaling such as RF field detection and mailbox message availability.

Explore more RFID and NFC transceiver solutions and components on EnvMart to enhance your application performance and design flexibility.
