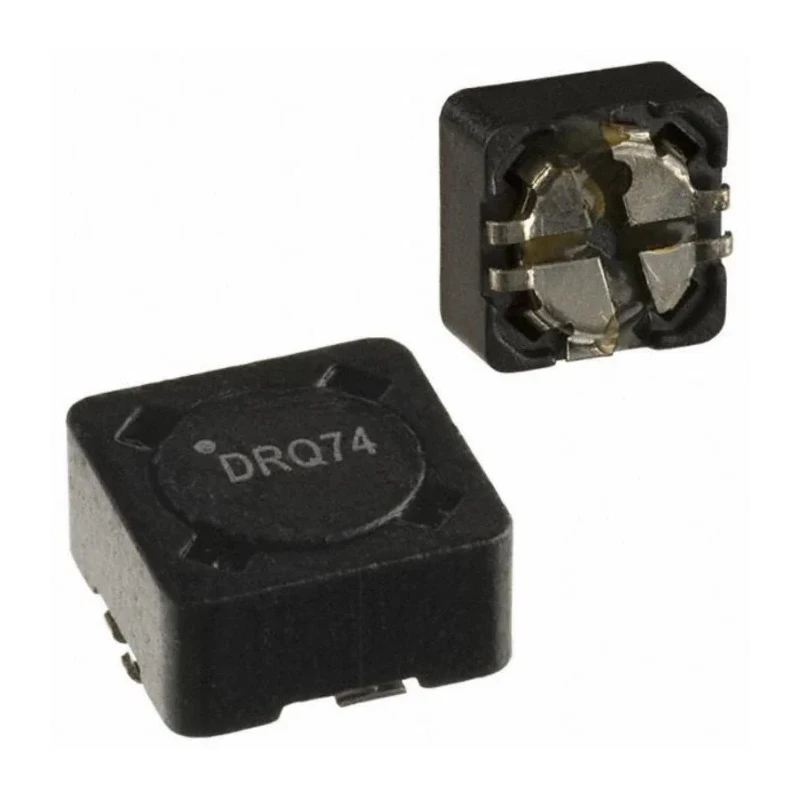

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±20% 1.41A DC Current 0704 Package DRQ74-470-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±20% 1.41A DC Current 0704 Package DRQ74-470-R

Name: Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±20% 1.41A DC Current 0704 Package DRQ74-470-R
Brand: Eaton
SKU: 367420
Price: 1.25 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	Philippines
Brand	Eaton
Height	4.45mm
Length	7.6mm
Model	DRQ74-470-R
Depth	7.6mm
Packaging	Reel
Series	DRQ
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	47μH
Standards/Approvals	RoHS
Package/Case	0704
Maximum DC Current	1.41A
Pin Count	4
Maximum DC Resistance	865mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Wirewound

Key Features

This inductor features a 0704 package size and surface mount termination style.
It provides ±20% inductance tolerance suitable for various electronic applications.
The core material is ferrite with a maximum operating temperature of 125°C.
The inductor is shielded with a wirewound construction and a maximum DC resistance of 865 mΩ.
It has a pin count of 4 and dimensions of 7.6 mm length and 4.45 mm height.
Designed for applications such as SEPIC and flyback transformers, buck and boost coupled inductors, and DC-DC converters.
This component supports VRM inductors for CPU and DDR power supplies as well as input and output filter chokes.

Product Description

Eaton DRQ74-470-R shielded wirewound surface mount inductor with ferrite core features a 47μH inductance with ±20% tolerance and a maximum DC current rating of 1.41 A. It is housed in a compact 0704 surface mount package measuring 7.6 mm in length and 4.45 mm in height, designed for reliable performance in demanding electronic circuits.

The inductor construction consists of wirewound coils on a ferrite core, providing effective shielding to reduce electromagnetic interference. It operates within a temperature range of -40°C to 125°C, supporting extended durability under industrial conditions.

Maximum DC resistance of 865 milliohms ensures efficient current handling with minimal loss. Featuring a 4-pin count and packaged on a reel for streamlined assembly processes, it is designed for modern surface mount technology applications.

The DRQ series inductors are suitable for versatile uses such as in SEPIC and flyback transformers, buck and boost coupled inductors, and DC-DC power converters. The product is ideal for VRM inductors powering CPUs and DDR memory as well as for input and output filter choke applications in power management circuits.

This inductor utilizes a ferrite core material for efficient magnetic properties. Shielded design minimizes interference in sensitive electronic assemblies. Compact 0704 package supports high-density PCB layouts. Wide operating temperature range ensures reliability in harsh environments.

Maximum self-resonant frequency of 100 kHz suitable for power electronics applications. Surface mount termination style enables automated PCB assembly. RoHS compliant for environmental safety and regulatory compliance. Explore more from Eaton and Surface Mount Inductors on EnvMart for your electronic component needs.
