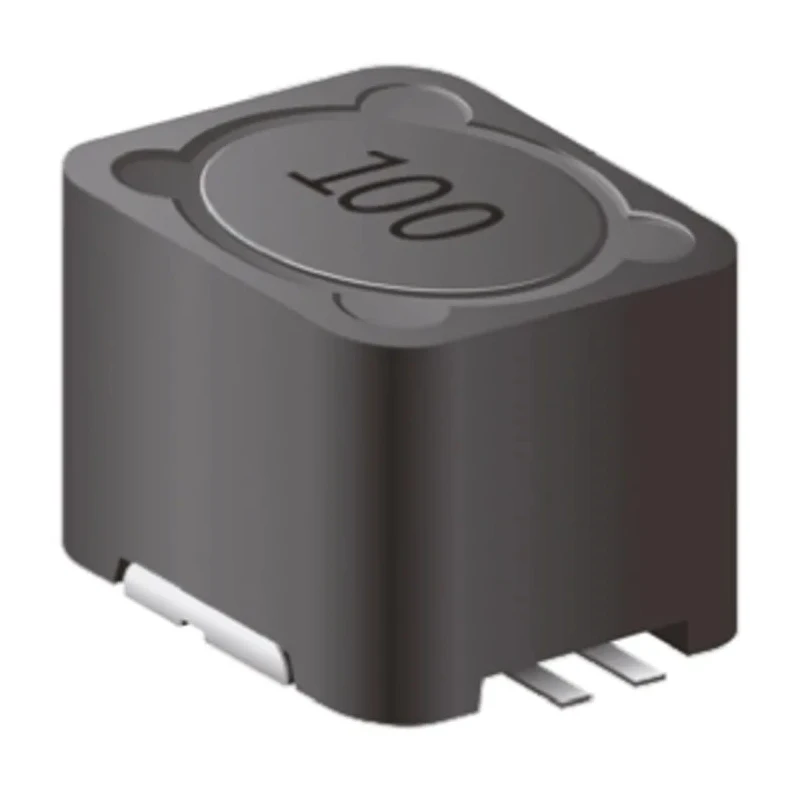

Bourns 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 56μH ±20% 3.4 A Idc Q:8 SRR1210

Bourns SRR1210 model is a shielded wirewound surface mount inductor with a ferrite core designed for industrial and electronic applications requiring reliable inductance and current handling. With a nominal inductance of 56μH ±20%, this inductor supports a maximum DC current rating of 3.4 A, making it suitable for use in power supply circuits including DC/DC converters, portable communication devices, camcorders, car radios, and LCD TVs.

The wirewound construction combined with magnetic shielding enhances performance stability by minimizing interference, while the ferrite core material contributes to efficient magnetic flux handling. The compact 1210 package measures 12mm in length, 10mm in height, and 12mm in depth, making it ideal for surface mount technology (SMT) assembly on PCBs.

This component supports operation across a wide temperature range from -40°C to 125°C and maintains a maximum DC resistance of 90mΩ, ensuring minimal power loss. The maximum self-resonant frequency of 4MHz and a minimum quality factor of 8 make this inductor competent for high-frequency power applications.

The inductor is RoHS compliant, assuring adherence to environmental and safety standards. It is supplied in reel packaging format that facilitates automated pick-and-place manufacturing processes to boost production efficiency.

Key features include wirewound construction, ferrite core shielding, compact surface mount design, and a broad operating temperature range, ensuring durability and dependable electrical performance.

This Bourns SRR1210 Shielded Wirewound Surface Mount Inductor is widely used in industrial electronics, power management, telecommunications, consumer electronics, and automotive electronics systems. Its robust design and specification make it a reliable choice for demanding electronic component applications.

Explore more Bourns inductors and surface mount components on EnvMart for related solutions. Compact 1210 package with 12mm length and 10mm height. Constructed with wirewound technology and ferrite core for reliable performance.

Features magnetic shielding and surface mount termination style. Operates within -40°C to 125°C temperature range. Maximum DC resistance of 90mΩ ensures low power losses. Suitable for DC/DC converter input/output and power supply applications.

Maximum self-resonant frequency is 4MHz with minimum quality factor of 8. RoHS compliant and supplied on reel packaging for efficient assembly.
