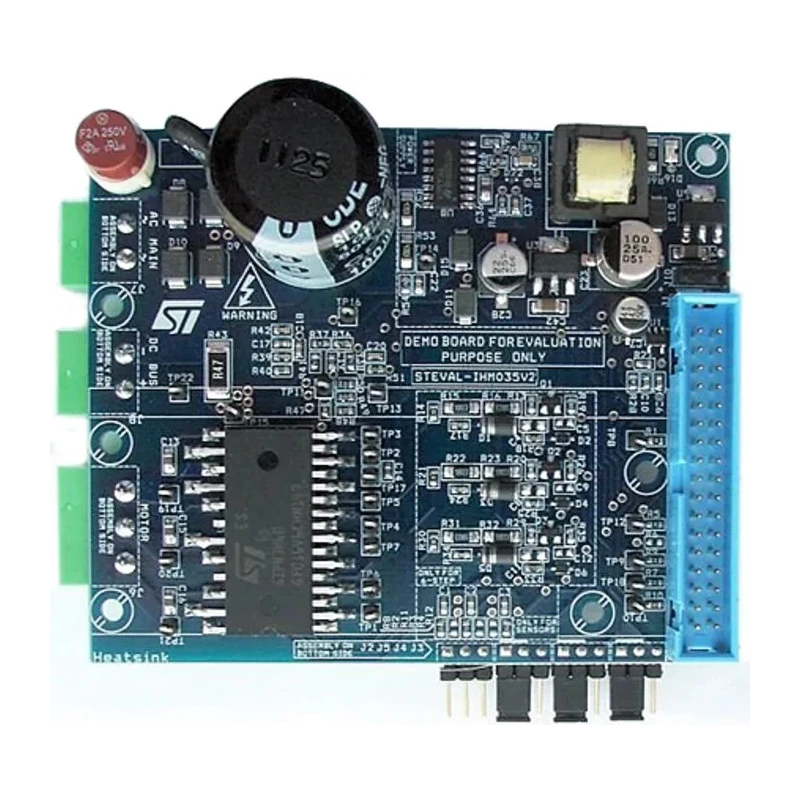

STMicroelectronics Evaluation Board Motor Controller for STGIPN3H60 STEVAL-IHM035V2 with 100W Power Output
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-IHM035V2 |
| Kit Classification | Evaluation Board |
| Featured Device | STGIPN3H60 |
| Kit Name | Evaluation Board |
Key Features
- Designed for high voltage, low power 3-phase brushless motors up to 100W nominal power.
- Compatible with both synchronous and asynchronous motors.
- Based on the STGIPN3H60 SLLIMM™-nano Intelligent Power Module.
- Supports control boards operating at 3.3V and 5V logic levels.
- Includes single shunt resistor for accurate current measurement.
- On-board temperature sensor for monitoring thermal conditions.
- Over-current protection feature with boost and disabling capability.
- Equipped with MC-connector for easy interfacing.
Product Description
STMicroelectronics STEVAL-IHM035V2 is a high-voltage evaluation board motor controller designed for precise field oriented control and scalar motor control applications. It drives low power 3-phase brushless motors, both synchronous and asynchronous types, delivering nominal power up to 100W. The board integrates the STGIPN3H60, a SLLIMM™-nano Intelligent Power Module (IPM), which enables efficient and reliable motor driving performance.
This evaluation board supports 3.3V and 5V control boards, making it versatile for various embedded development platforms. The board includes a single shunt resistor for precise current sensing and monitoring, along with an on-board temperature sensor to ensure the system operates safely within thermal limits. Additionally, it features built-in over-current protection that can boost or disable the drive as required to prevent damage.
The motor controller is equipped with an MC-connector for straightforward connection to motor and control circuitry. It supports both sinusoidal and trapezoidal control methods, allowing developers to tailor motor performance according to application requirements.
Ideal for industrial automation, robotics, power management development, and educational development kits, this evaluation board facilitates efficient motor control algorithm development and testing.
Designed for 3-phase brushless motor control with up to 100W nominal power output. Incorporates SLLIMM™-nano IPM STGIPN3H60 for efficient power management. Supports 3.3V and 5V control boards for flexible interface compatibility.
Provides single shunt resistor current sensing and on-board temperature monitoring. Includes over-current protection with boost and disabling function. MC-connector simplifies integration with motor systems. Compatible with sinusoidal and trapezoidal motor control techniques.
This Evaluation Board from STMicroelectronics is a valuable development tool in STEM education and commercial development environments focused on power, motor, and robotics applications. Explore more similar products and solutions in the Power, Motor & Robotics Development Tools category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board is designed to deliver a nominal power output of up to 100W for 3-phase brushless motors.
It is compatible with both synchronous and asynchronous 3-phase brushless motors.
This model supports control boards operating at both 3.3V and 5V logic levels, providing flexibility for various embedded platforms.
The board includes a single shunt resistor for accurate current measurement, ensuring precise monitoring of motor performance.
Yes, it is equipped with an on-board temperature sensor for monitoring thermal conditions during operation.
It features over-current protection with capabilities for boosting and disabling the drive to prevent damage.
The MC-connector simplifies the connection to motor and control circuitry, making integration straightforward.
It supports both sinusoidal and trapezoidal control methods, allowing for tailored motor performance based on application needs.
The country of origin for the STEVAL-IHM035V2 evaluation board is India.
The featured device in this evaluation board is the STGIPN3H60 SLLIMM™-nano Intelligent Power Module.
It is suitable for applications in industrial automation, robotics, power management development, and educational development kits.
The model number of this evaluation board is STEVAL-IHM035V2.
