Infineon Demo Board LDO Voltage Regulator Evaluation Board for Sensor Supply IC TLS105B0MB TLS105B0MB

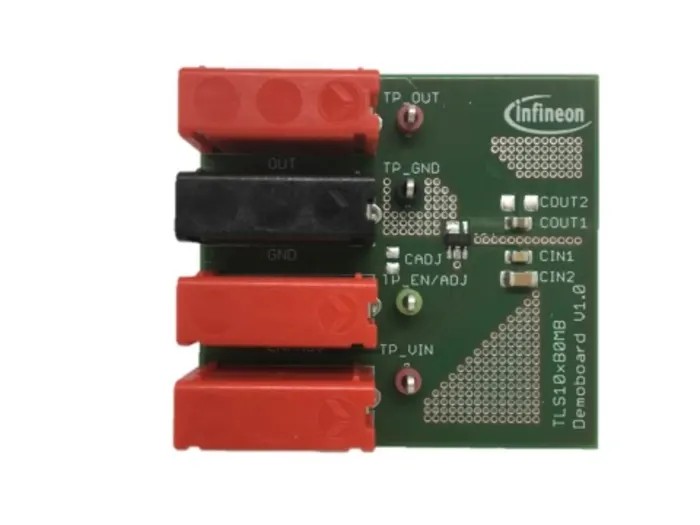

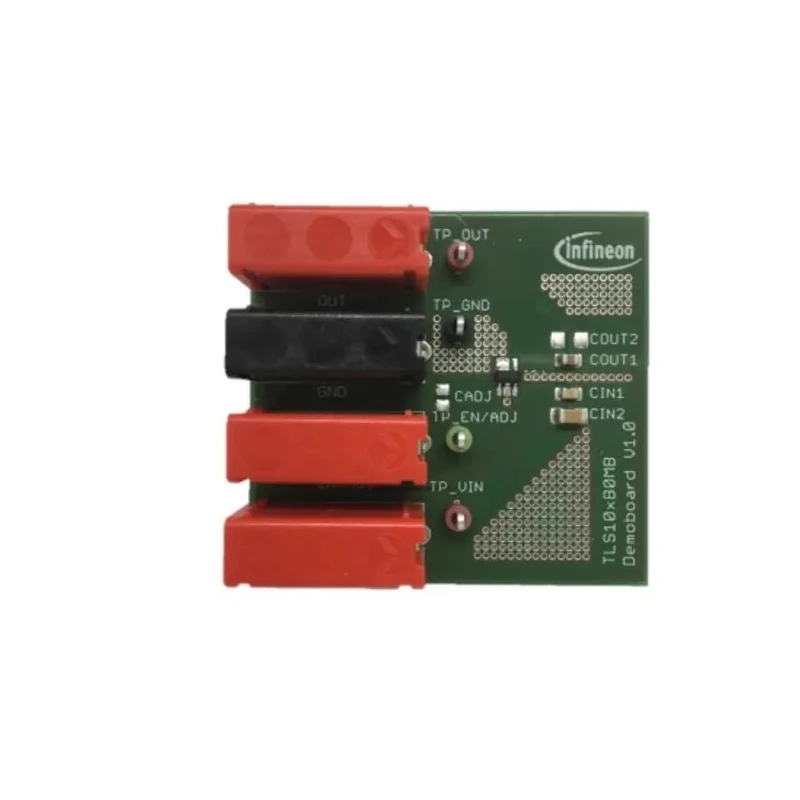

The Infineon TLS105B0MB demo board is an LDO voltage regulator evaluation board built to allow comprehensive electrical performance testing of the TLS105B0MB low drop out voltage tracker. This small, robust evaluation board features the TLS105B0MB device in a PG-SCT595-5 package.

The demo board is specifically designed to supply off-board systems, such as sensors in powertrain management systems located outside the Electronic Control Unit (ECU). Due to the cable connection between sensors and the ECU, protection against short to ground and short to battery is essential.

These protection mechanisms, including reverse battery protection and over-temperature protection, are integrated into the TLS105B0MB voltage tracker and demonstrated by this demo board's functionality. It offers a plug and play evaluation system enabling users to verify and configure the device easily.

The board is ideal for applications requiring sensor supply solutions in automotive or industrial powertrain systems, ensuring robustness against electrical faults and enhancing ECU safety.

Enables electrical performance evaluation of TLS105B0MB LDO voltage tracker. Compact PG-SCT595-5 package ensures space efficiency. Offers protection against common electrical faults including shorts and reverse polarity.

Supports automotive sensor supply outside the ECU environment. Facilitates easy integration and testing with plug and play capability. Over-temperature protection improves device reliability in harsh conditions. Evaluation board helps in firmware and hardware development phases.

This evaluation board is a key tool in research, development, and validation processes, particularly within automotive electronics, industrial control, and sensor supply domains. For further development and integration needs, browse our extensive category of development and Evaluation Boards designed for power and motor applications.
