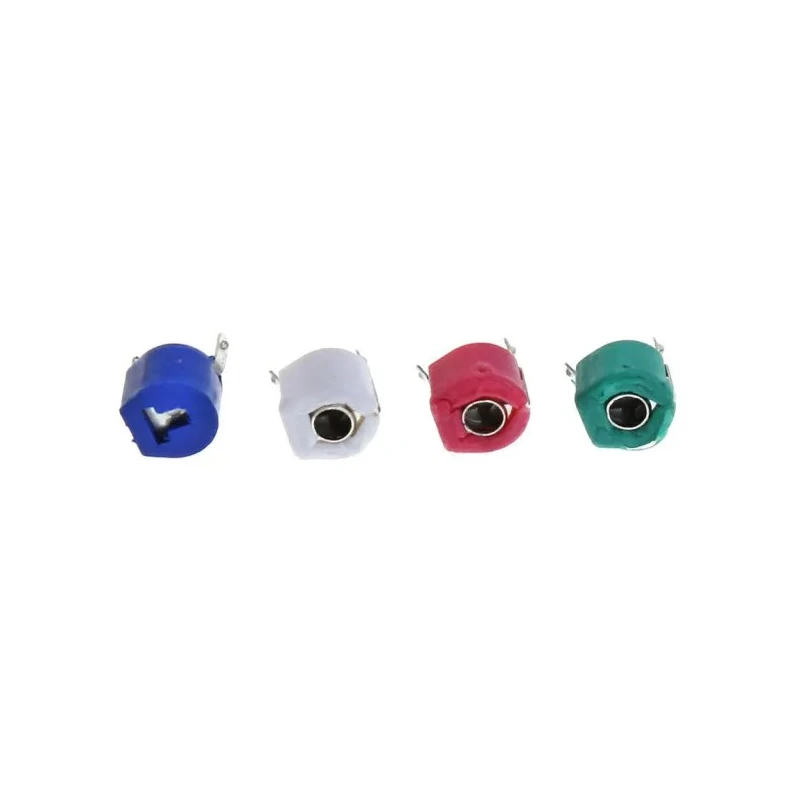

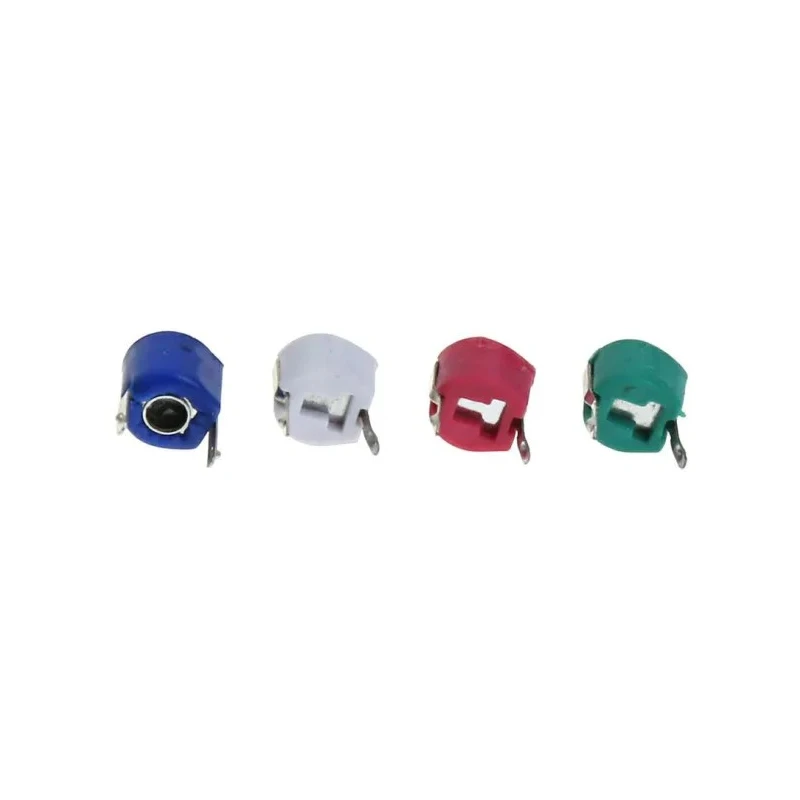

RS PRO Variable Trimmer Capacitor, Ceramic, 3 - 10 pF, 100 V DC, Through Hole, CVN Series 175-3544

RS PRO's 175-3544 Variable Trimmer Capacitor is a precision electronic component designed for fine-tuning capacitance in circuits requiring high accuracy. This capacitor features a ceramic dielectric, known for its stable electrical properties and resilience, making it suitable for demanding electronics applications. The capacitance can be adjusted between 3 pF and 10 pF, supporting the calibration of radio frequency, communication, and filter circuits where small capacitance changes are crucial.

With a rated DC and AC voltage of 100 V, this trimmer capacitor accommodates a range of low-voltage signal processing tasks. The through-hole mounting type enables secure placement and robust adhesion to PCBs, simplifying assembly while ensuring reliable operation.

Designed with a lead pitch of 5.3 mm and a thin lead diameter of 0.2 mm, it integrates easily with standard PCB layouts. The compact physical dimensions - 6 mm height, 6 mm length, and 5 mm width - make it ideal for space-limited electronic designs. Its tolerance range from 0% to 50% assures precise adjustment capability, which is beneficial for engineers calibrating circuit responses.

The capacitor operates efficiently within a wide temperature range of -25°C to 85°C, ensuring performance consistency in both laboratory and industrial environments. Typical applications include electric and electronic apparatus, communication equipment, and specialized signal processing assemblies.

Built to RS PRO's reliability standards, this ceramic trimmer capacitor is a core choice for professionals working in electronics manufacturing, repair, and product development. It serves industrial, laboratory, telecommunications, and commercial sectors wherever capacitance tuning is required.

Capacitance tuning range: 3 - 10 pF, offering flexibility for circuit calibration. Ceramic dielectric ensures stable performance and reduced losses. Rated voltages: 100 V DC/AC for signal and filter applications. Through-hole mount for secure integration in PCB designs.

Compact dimensions: 6 mm × 6 mm × 5 mm, suitable for tight spaces. Tolerance up to 50% for precision adjustments in sensitive circuits. Operating temperature: -25°C to 85°C for reliable operation in various environments.

Ideal for RF, communication, and signal adjustment applications. Explore more industrial Capacitors and RS PRO products in the Electronics & Electricals category for robust passive component solutions.
