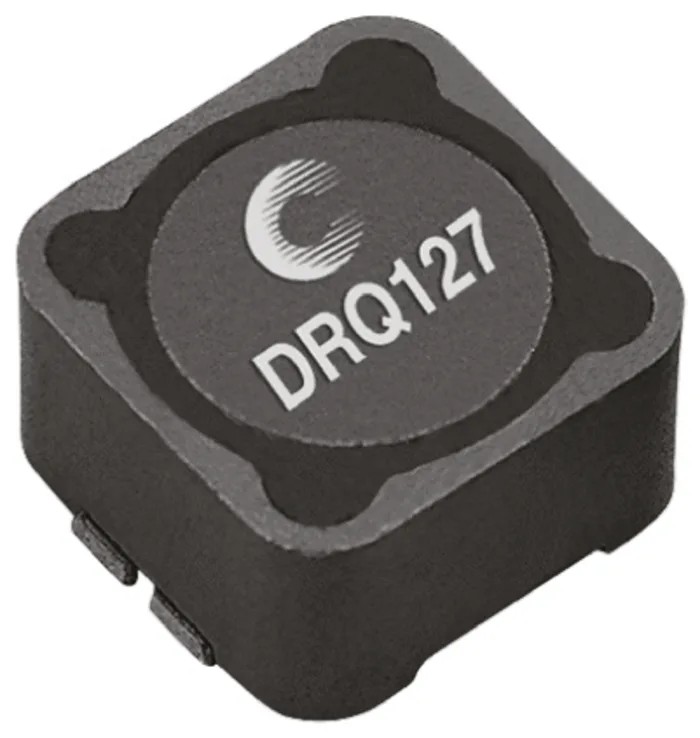

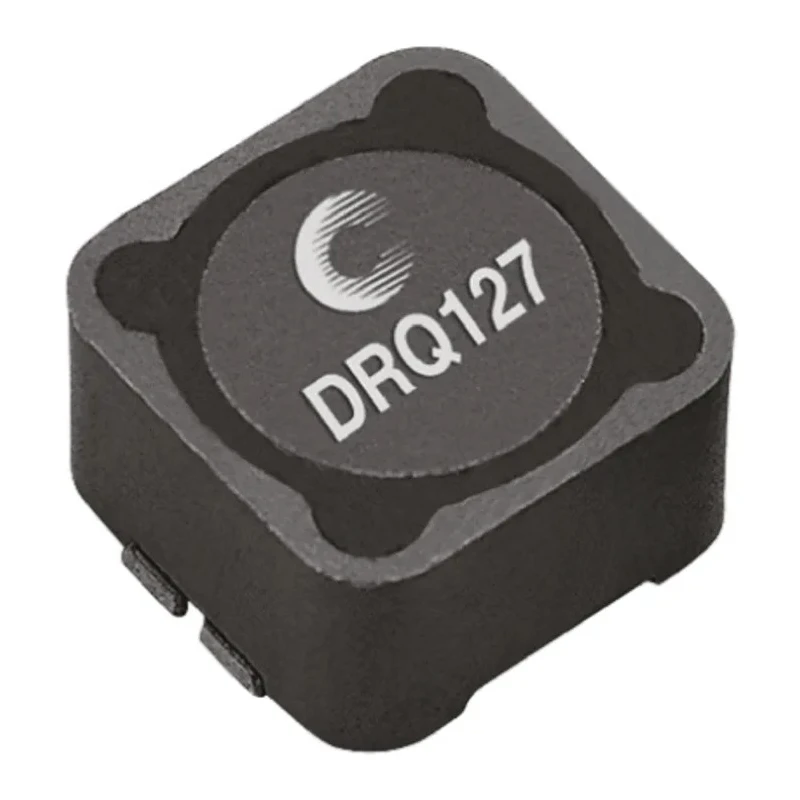

Eaton Shielded Surface Mount Inductor with Ferrite Core 10 μH ±20 % 11.2 A Idc DRQ127-100-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton Shielded Surface Mount Inductor with Ferrite Core 10 μH ±20 % 11.2 A Idc DRQ127-100-R

Name: Eaton Shielded Surface Mount Inductor with Ferrite Core 10 μH ±20 % 11.2 A Idc DRQ127-100-R
Brand: Eaton
SKU: 367414
Price: 1.36 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	8mm
Length	12.5mm
Model	DRQ127-100-R
Depth	12.5mm
Packaging	Reel
Series	DRQ
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10μH
Standards/Approvals	RoHS
Package/Case	0127
Maximum DC Current	11.2A
Pin Count	4
Maximum DC Resistance	68.6mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Wirewound

Key Features

Features a ferrite core construction for effective magnetic performance.
Provides an inductance tolerance of ±20 % ensuring precise operation.
Supports a maximum DC current of 11.2 amperes suitable for power applications.
Surface mount termination style for easy PCB assembly.
Operates reliably within a temperature range of -40°C to 125°C.
Designed with shielding to minimize electromagnetic interference.
Wirewound inductor construction enhances durability and performance.
Compliant with RoHS standards confirming environmental safety.

Product Description

Eaton DRQ127-100-R shielded surface mount inductor is designed with a ferrite core providing 10 μH inductance and a ±20 % tolerance. It supports up to 11.2 A maximum DC current, making it suitable for power inductor applications in electronic circuits.

Constructed as a wirewound inductor with shielding, this component effectively minimizes electromagnetic interference, ensuring stable operation. It features a surface mount termination style and is available packaged on a reel, facilitating ease of assembly in automated manufacturing environments.

The inductor measures 12.5 mm in length and depth and 8 mm in height within the 0127 package, supporting operation within temperature limits from -40°C to 125°C. It complies with RoHS environmental standards, aligning with industry regulations.

Applications include use as transformers in SEPIC and flyback converters, inductors for buck and boost coupled circuits, DC-DC converters, voltage regulator module (VRM) inductors for CPU and DDR power supplies, and input/output filter chokes.

Features a ferrite core construction for effective magnetic performance. Provides an inductance tolerance of ±20 % ensuring precise operation. Supports a maximum DC current of 11.2 amperes suitable for power applications.

Surface mount termination style for easy PCB assembly. Operates reliably within a temperature range of -40°C to 125°C. Designed with shielding to minimize electromagnetic interference. Wirewound inductor construction enhances durability and performance.

Compliant with RoHS standards confirming environmental safety. Package comes on a reel for production efficiency and automated insertion. Compact 0127 package size with dimensions Length 12.5 mm, Depth 12.5 mm, Height 8 mm.

This high-quality Eaton inductor is ideal for industrial electronics, power supply circuits, and communication equipment. Explore the Electronics & Electricals category on EnvMart for more Surface Mount Inductors and related components.
