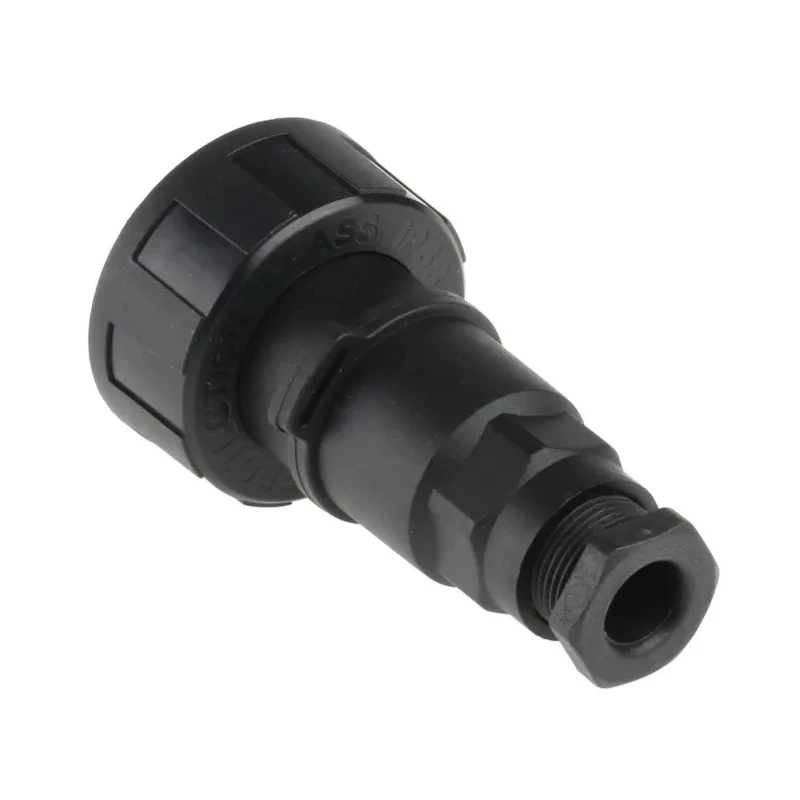

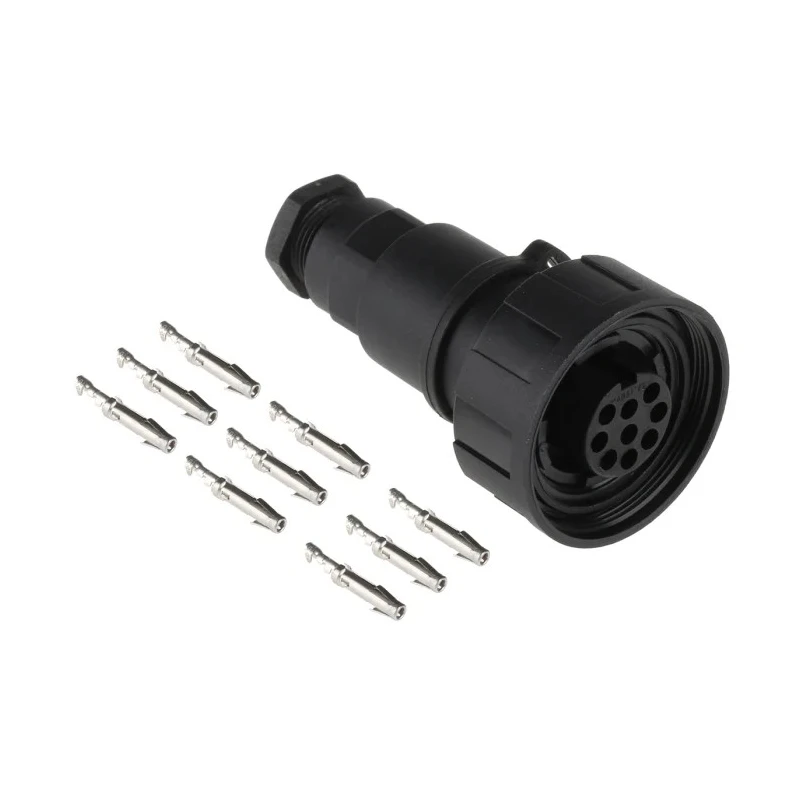

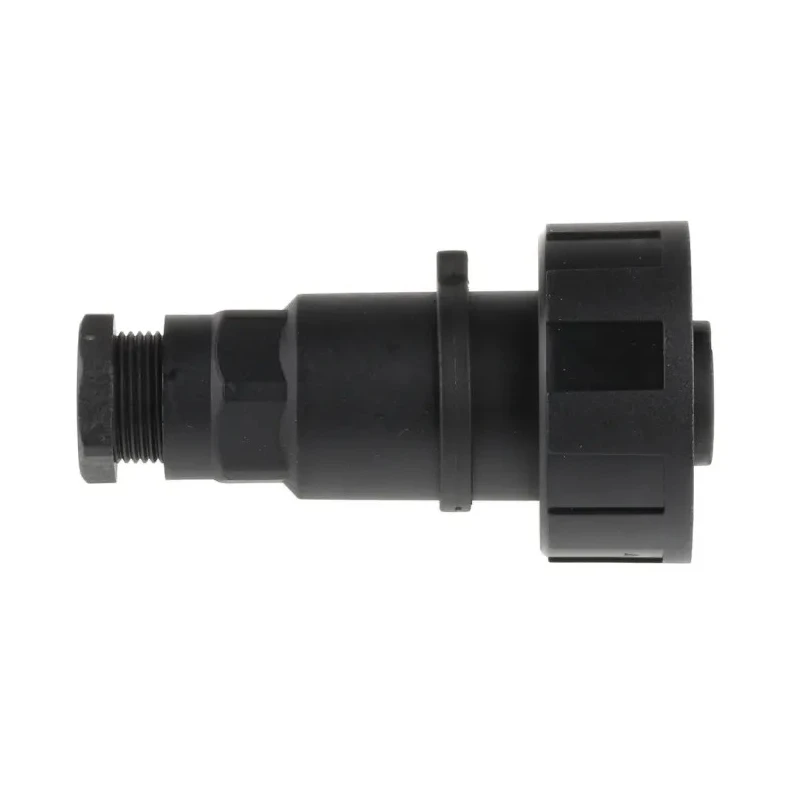

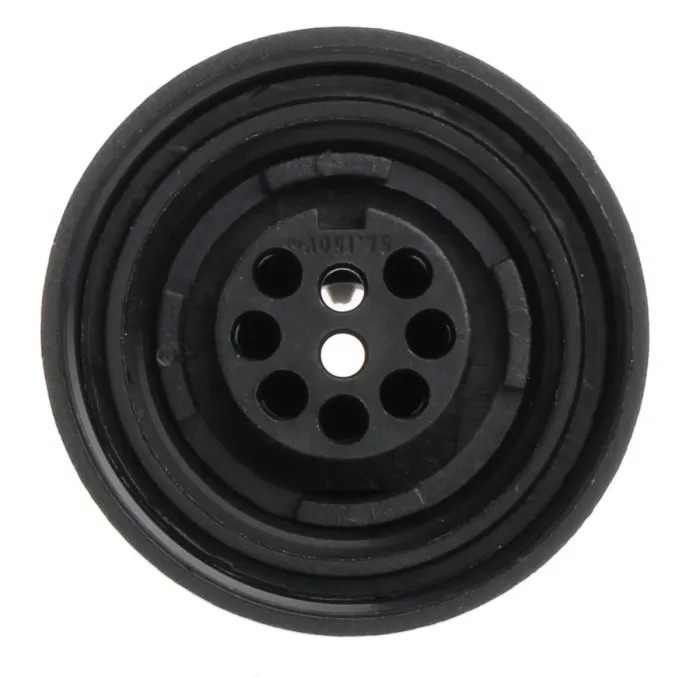

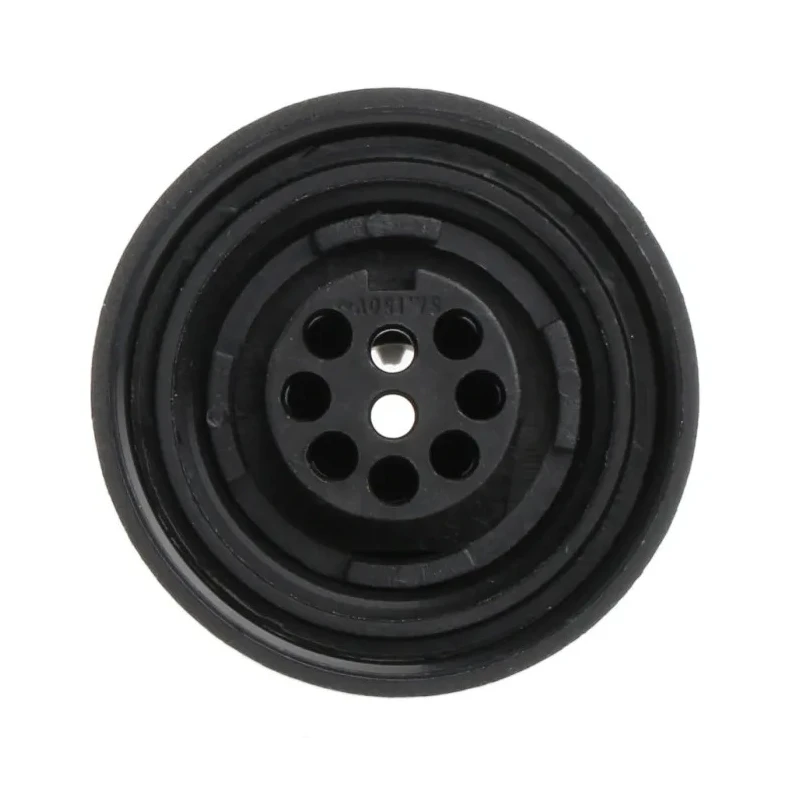

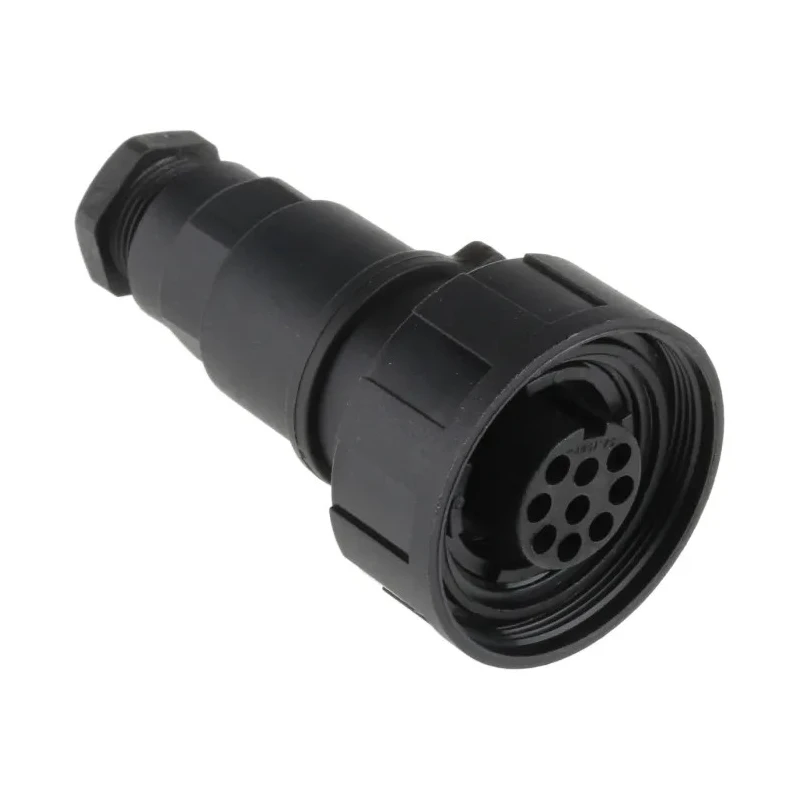

Bulgin Circular Connector 9 Contacts Cable Socket Female IP68 Standard Buccaneer Series PX0728/S
Specifications
| Country of Origin | Tunisia |
|---|---|
| Voltage | 150.0V |
| Brand | Bulgin |
| Orientation | Straight |
| Current | 5A |
| Model | PX0728/S |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Standard Buccaneer |
| Termination Type | Crimp |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Shell Size | 38 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | S |
| Frequently asked questions (FAQs)Q | Are there accessories available for this connector? |
Key Features
- 9-contact configuration ensures secure electrical connections.
- Robust cable-mount socket design with crimp termination for easy installation.
- IP68 protection for dustproof and waterproof performance in industrial environments.
- Straight body orientation and thread mating type for reliable alignment and mating.
- Operating voltage up to 150 V and current rating of 5A per contact.
- Glass-filled polyamide housing provides resistance to dust, oil, and saltwater.
- Gold-plated copper alloy contacts enhance conductivity and durability.
- Suitable for electrical equipment and industrial automation systems.
Product Description
The Bulgin PX0728/S Circular Connector is a high-performance socket designed for industrial, automation, and demanding electrical applications. This model features nine contact positions arranged for efficient cable mounting, and is part of the Standard Buccaneer Series, recognized for its robust build and superior protection.
The connector’s cable-mount socket is equipped with crimp termination, facilitating quick and secure installation without the need for specialized tools. Its straight body orientation and threaded mating type ensure precise alignment and strong mechanical connection, minimizing the possibility of mismatching during assembly.
Rated for an operating voltage up to 150V and supporting a 5A current per contact, the PX0728/S connector is engineered to safely transmit power and signals. Its glass-filled polyamide housing delivers excellent resistance against environmental contaminants, including dust, oil, and saltwater, which is critical for challenging industrial settings.
The connector offers IP68 protection when mated, keeping it dustproof and waterproof - even submerged in water for a limited period. Gold-plated copper alloy contacts are used to maximize conductivity and minimize corrosion, extending product life and reducing maintenance requirements.
The positive locking mating system further improves safety by preventing accidental disconnection or improper fitting. Insulation resistance greater than 104 MOhm provides added reliability for sensitive electrical circuits.
Easy assembly, no special tools required. Cable acceptance ranges from 6mm to 8mm, making it versatile for various wire gauges. The connector is unshielded and designed for continuous industrial use where performance and connectivity are essential.
Applications include electrical equipment manufacturing, industrial automation installations, and environments requiring CSA, UL, and VDE certified connection solutions. The PX0728/S is suitable for panel, chassis, PCB connections, or cable-to-cable scenarios.
This product is backed by well-known certifications and approvals, including CSA, UL, and VDE. It is manufactured in Tunisia and features a durable polymer housing with tin-plated contacts for uncompromising performance.
Browse more connectors and solutions in the Bulgin Standard Buccaneer Series and the Industrial Circular Connector category on EnvMart for tailored electrical installations and demanding industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this connector is 150V.
This model features a 9-contact configuration.
The current rating is 5A per contact.
It uses crimp termination for easy installation.
The connector has an IP68 rating, providing dustproof and waterproof protection.
The housing is made of glass-filled polyamide, and the contacts are made of gold-plated copper alloy.
The connector operates within a temperature range of -20°C to 70°C.
It features a threaded mating type for reliable alignment and connection.
The cable acceptance ranges from 6mm to 8mm.
It is manufactured in Tunisia.
It is suitable for electrical equipment manufacturing and industrial automation installations.
Yes, it is backed by certifications including CSA, UL, and VDE.
