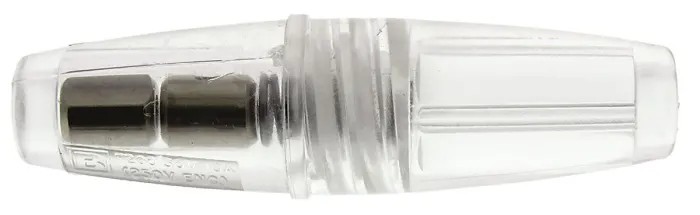

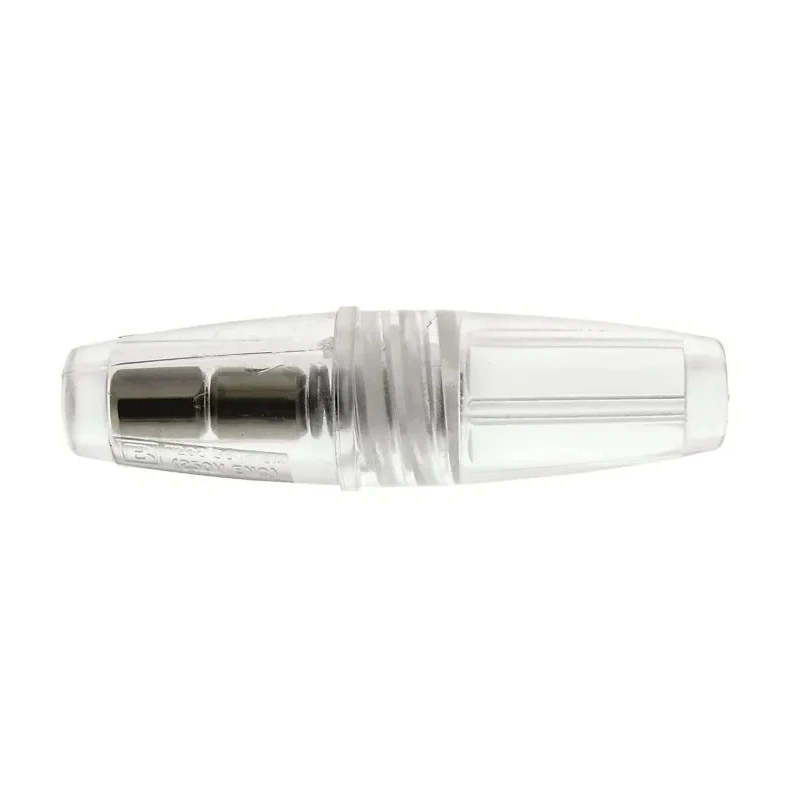

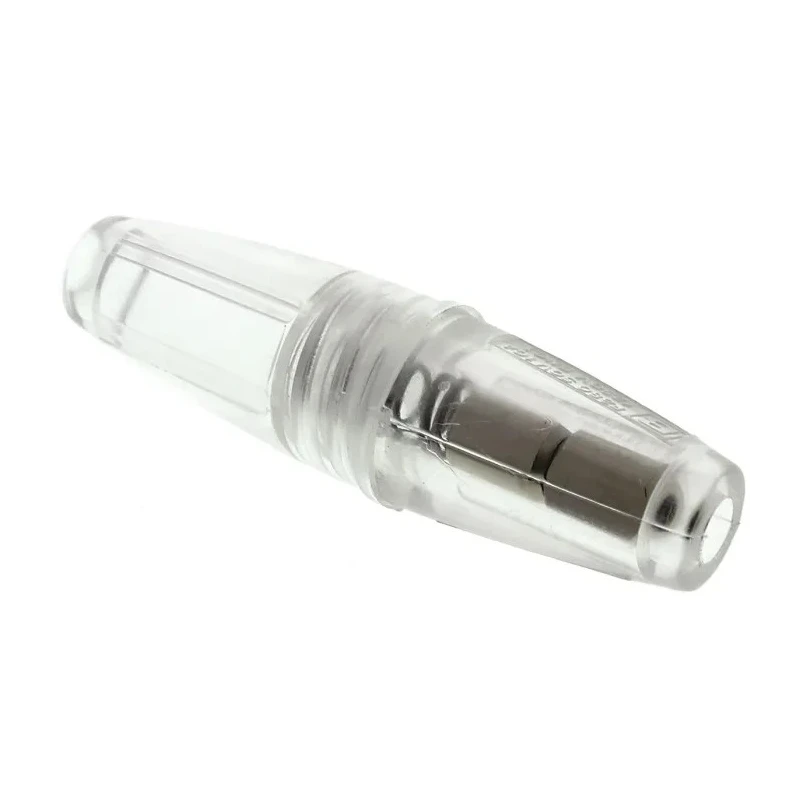

Bulgin 10A In-line Fuse Holder 250V AC, Multi-Material Construction, IP66/IP68 Rated FX0280
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Bulgin |
| Body Material | Glass Filled Nylon, Glass Filled Polyester, Nylon, Polyamide 6, Polybutene, Polycarbonate, Polyester, Polyvinyl Chloride |
| Model | FX0280 |
| IP Rating | IP66, IP68 |
| Contact Material | Brass, Nickel Plated, Phosphor Bronze, Silver Plated, Stainless Steel, Tin Plated |
| Series | FX0 |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -55°C |
| Terminal type | Screw |
| Standards/Approvals | CSA, EN60529:1992+A2:2013, IMQ, RoHS, UL, VDE |
| Lead Wire Size | 1mm² |
| IP66 versions to Protection Class to EN60529 | 1992+A2:2013 |
| Standards/Approvals CSA, EN60529 | 1992+A2:2013, IMQ, RoHS, UL, VDE |
| Bulgin 10A In-line Fuse Holder for 6.3 x 32 mm, 250Brand | Bulgin |
Key Features
- The fuse holder is suitable for cartridge fuses of sizes 5x20 mm, 6.3x25 mm, and 6.3x32 mm.
- Constructed from glass-filled nylon, polyester, polyamide 6, polycarbonate, PVC, and polybutene materials for durability and insulating properties.
- Rated for continuous operation from -55°C to 90°C with IP66 and IP68 protection class, making it suitable for harsh industrial environments.
- Equipped with brass and phosphor bronze contact parts plated with nickel, silver, stainless steel, and tin for reliable electrical connections.
- Features screw terminal type for easy and secure wire termination supporting up to 1mm² lead wire size.
- Compact and fully enclosed design provides convenience in installation and maintenance.
- The fuse holder is ideal for protecting electrical circuits in appliances, electronics, and industrial equipment.
- Available in standard and sealed IP66 versions with PVC grommet and nitrile O-ring for additional sealing.
Product Description
Bulgin FX0280 is a high-quality 10A in-line fuse holder rated for 250V AC, engineered for industrial and commercial electrical applications requiring reliable fuse protection.
It supports cartridge fuse dimensions of 5x20 mm, 6.3x25 mm, and 6.3x32 mm and offers robust protection with an IP66 and IP68 rating, making it suitable for environments exposed to dust, water ingress, and extreme temperatures from -55°C to 90°C.
Constructed using multiple high-grade materials including glass-filled nylon, glass-filled polyester, nylon, polyamide 6, polybutene, polycarbonate, polyester, and polyvinyl chloride, this fuse holder ensures exceptional mechanical strength and electrical insulation.
The contact components are made of brass and phosphor bronze with various platings such as nickel, silver, stainless steel, and tin to ensure corrosion resistance and excellent conductivity.
The screw terminal design facilitates quick installation and maintenance with lead wire size capacity of 1mm².
This fuse holder is fully enclosed for safety and is designed with a two-part construction for ease of access and fuse replacement. Sealed variants include PVC grommets and nitrile O-rings for enhanced ingress protection.
Typical applications include protection circuits for electrical appliances, portable electronics, LCD monitors, DVD players, game systems, laptops, printers, and battery packs. The fuse holder supports cartridge fuses of multiple sizes.
Constructed from durable, insulating multi-material plastics. Rated IP66/IP68 for dust and water resistance. Operating temperature range from -55°C to 90°C. Brass and phosphor bronze contacts with multiple plating types.
Screw terminal type for ease of wiring. Sealed versions available for harsh environments. Compact and fully enclosed design for electrical safety. Explore the Electronics & Electricals section at EnvMart for more fuse holders and related accessories to suit your industrial needs.
