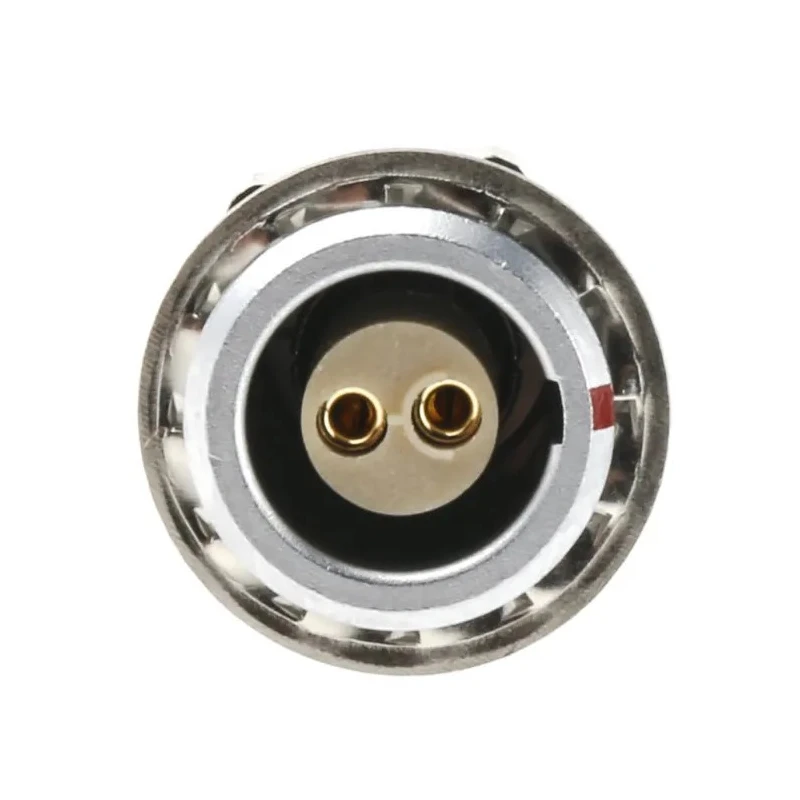

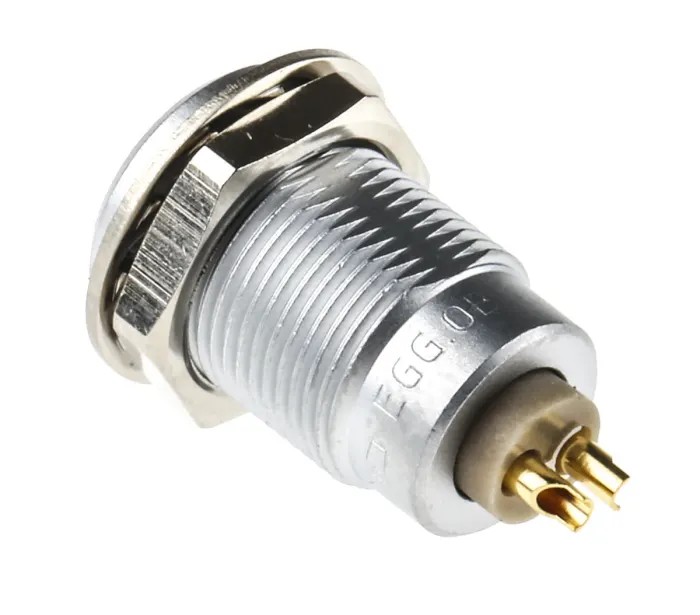

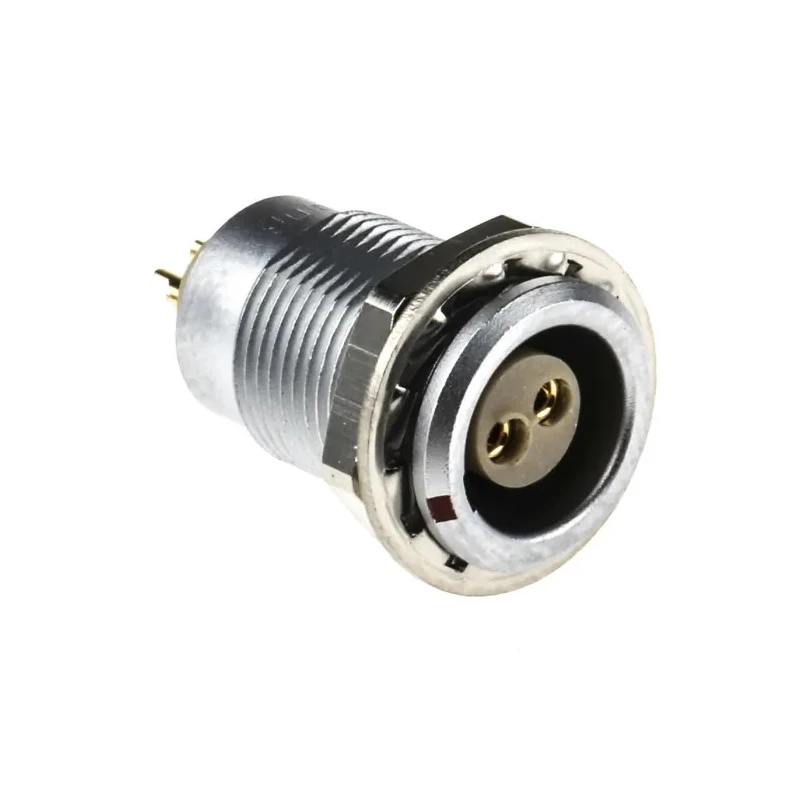

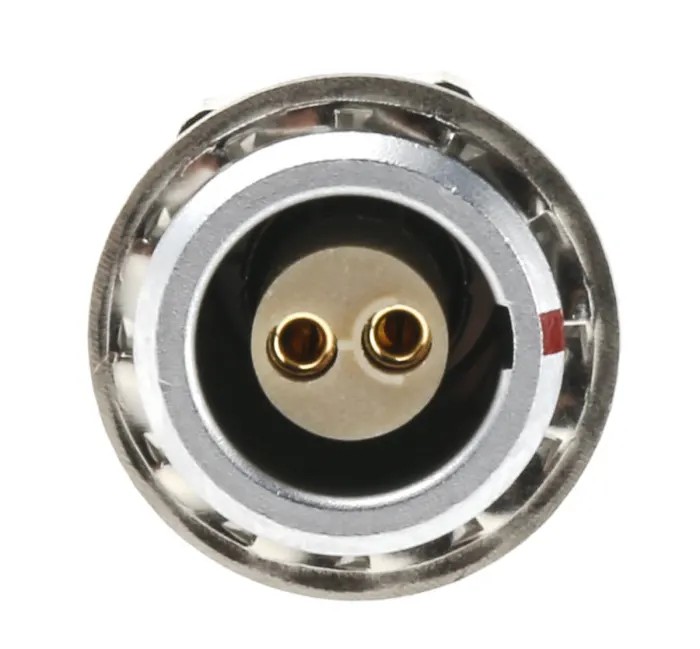

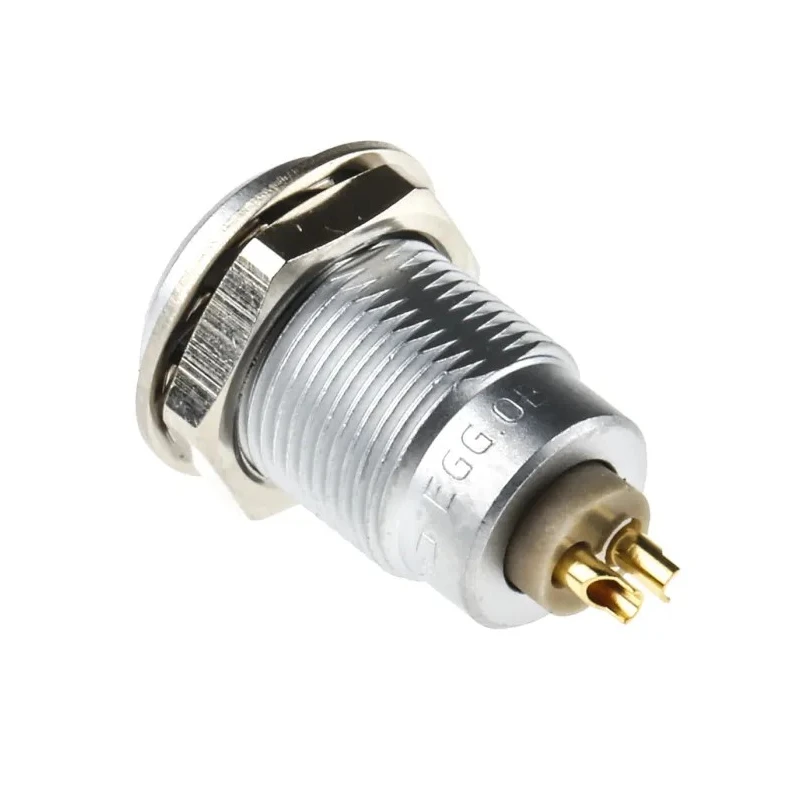

LEMO Circular Connector 2 Contacts Panel Mount 10 mm Socket Female IP50 0B Series EGG.0B.302.CLL

The LEMO EGG.0B.302.CLL is an industrial-grade circular connector engineered for applications demanding reliable and secure electrical connections. This model features two gold-plated brass contacts and a female socket, designed to be panel mounted with a connector size of 10 mm, making it ideal for electronic equipment where space efficiency is critical.

One of the defining features of this connector is its push-pull self-latching locking system, ensuring quick and secure mating. This mechanism is engineered to remain vibration and shockproof, providing stable performance in dynamic or high-impact environments. The 360-degree shielding delivers superior electromagnetic interference (EMI) protection, essential for high signal integrity in sensitive instrumentation and industrial control systems.

With an IP50 ingress protection rating, this connector is well-suited to indoor environments that require moderate dust protection but where liquid ingress is not a concern. The robust construction features a durable brass housing and solder termination contacts, supporting a maximum current of 10A and voltage up to 1490V. It is suitable for applications across industrial automation, medical devices, testing and measurement, sensors, actuators, audio/video systems, and instrumentation panels.

The socket uses a straight orientation and is designed to minimize risks of contact misalignment, supporting error-free and repeatable connections. The shell size is 0, and compact overall dimensions enable integration in high-density board layouts or equipment housings. With an operational temperature range spanning from -55°C to 250°C, this connector stands up to extreme working conditions.

Construction details include gold-plated contacts for low resistance and corrosion resistance, with both contacts and housing being precision manufactured from high-quality brass. The solder termination method simplifies wire attachment for stable, long-life operation, and the design supports additional accessories such as dust caps, cable collets, and strain relief components if required for the application.

Typical use cases for the LEMO EGG.0B.302.CLL include industrial machinery signal lines, field sensors and transmitters, laboratory instrumentation, medical device interconnects (where IP50 suffices), audio/video distribution in broadcast equipment, and automation panels requiring reliable, high-density connectivity. The connector's moderate dust resistance and robust physical design make it a preferred choice for secure connections in manufacturing, cleanroom, testing, and assembly environments where ingress protection up to IP50 is adequate but waterproofing is not required.
