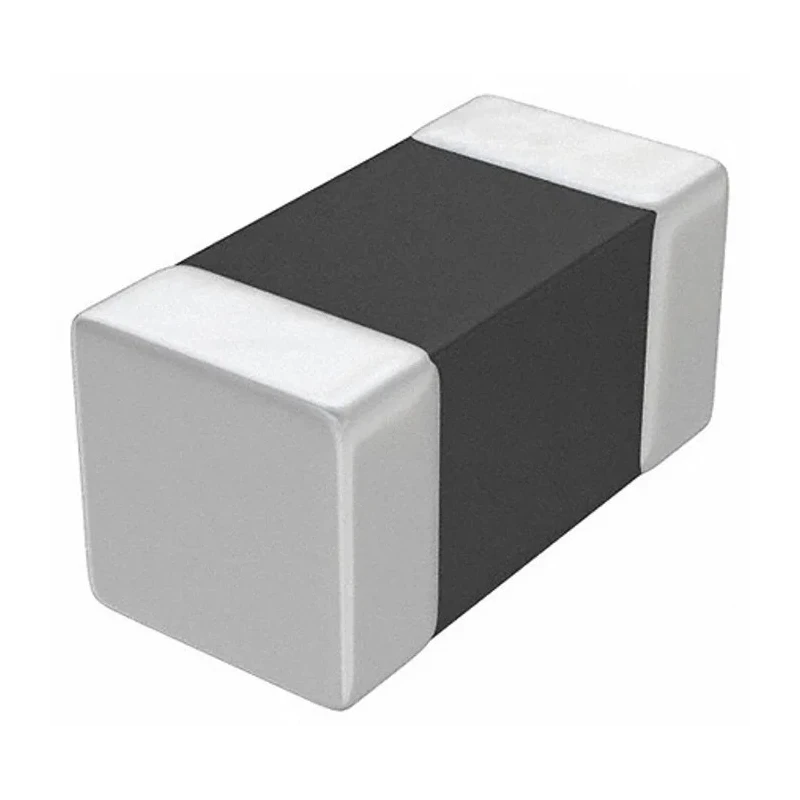

Murata 0.033 μH Unshielded Wirewound Surface Mount Inductor, 1005 Package, Multilayer, Non-Magnetic Ceramic Core LQG15HN

Murata LQG15HN33NJ02D 0.033 μH Unshielded Wirewound Surface Mount Inductor is expertly engineered for use in advanced high-frequency circuit designs. Featuring a robust multilayer construction and a non-magnetic ceramic core, this inductor offers excellent balance between size, rated current, quality factor, and inductance value tolerance, making it an optimal solution for demanding applications.

This SMD inductor comes in a compact 1005 (0402) package, measuring just 1 mm long, 0.5 mm wide, and 0.5 mm high. The compact form factor is specifically tailored for automated pick-and-place manufacturing processes, facilitating high-density PCB layouts in modern electronics production.

With an inductance of 0.033 μH and a tight tolerance of ±5%, the LQG15HN33NJ02D delivers stable, precise performance for frequency-critical assemblies. The inductor supports a maximum DC current of 200 mA while holding DC resistance to just 670 mΩ, enhancing circuit efficiency and minimizing power loss.

The non-magnetic ceramic core material is optimized for high stability across radio frequencies, supporting a maximum self-resonant frequency of 1500 MHz and a minimum quality factor of 8. The design is ideal for integration in RF circuits, WLAN equipment, chokes, resonant circuits, and mobile communications hardware.

This Murata inductor is unshielded, providing adequate performance in environments where minor cross-talk is permissible or board-level shielding is applied. Its termination style is compatible with solder reflow techniques for secure installation on PCBs. The unit is RoHS compliant and designed for use in a wide temperature range from -55°C to 125°C, ensuring operational reliability in automotive, industrial, and commercial electronics.

Unshielded multilayer wirewound construction for high-frequency surface mount applications. 0.033 μH nominal inductance with a ±5% tolerance for tight circuit control. 1005 (0402) metric package: 1 mm x 0.5 mm x 0.5 mm dimensions for ultra-compact layouts.

Non-magnetic ceramic core offers excellent frequency stability and minimal losses. Handles up to 200 mA DC current and a maximum of 670 mΩ DC resistance. Ideal for use in chokes, RF circuits, WLAN networks, and mobile communication devices.

Wide operating temperature range from -55°C to +125°C for consistent performance. Meets requirements for highly reliable multilayer inductors in critical circuit environments.

This inductor is well suited for applications in electronics manufacturing, telecommunications infrastructure, wireless RF modules, industrial automation, scientific instrumentation, and consumer electronics where high-frequency stability and compact size are paramount.
