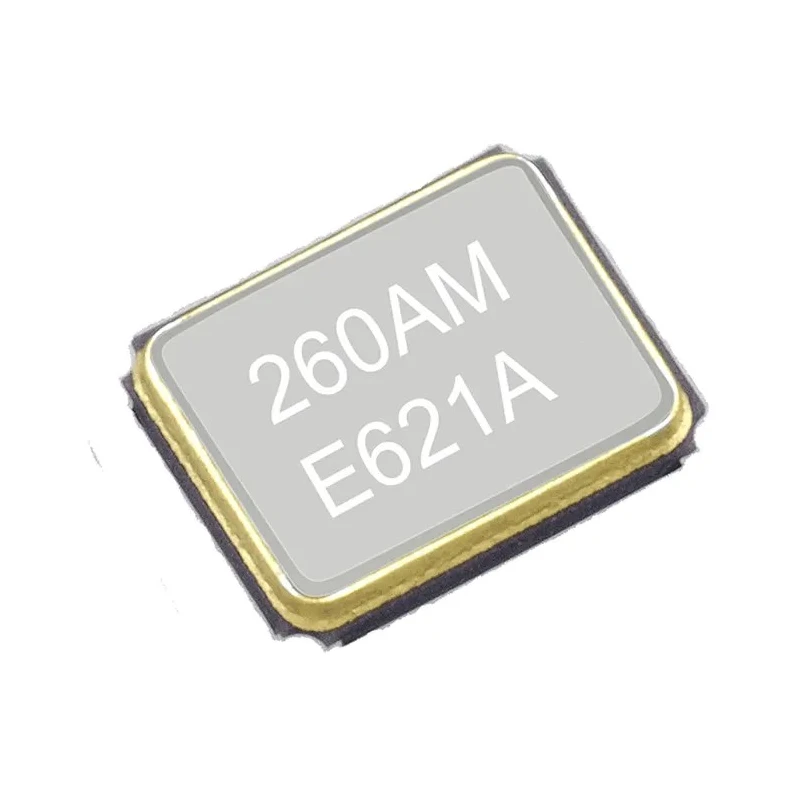

Epson 16 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin FA-20H Package Q24FA20H0005912

This miniature SMD crystal unit offers a frequency tolerance of ±10 ppm and a nominal frequency range spanning 12 MHz to 48 MHz, making it suitable for a wide array of electronic timing and frequency control needs.

The fundamental overtone order ensures stable and precise oscillation, complemented by a load capacitance of 6pF. Its series resistance of 150Ω supports reliable start-up and steady performance even in challenging environments. Operating temperatures from -40°C up to 85°C allow this crystal unit to perform consistently under various industrial, telecommunications, and consumer electronics conditions.

With a 4-pin FA-20H package, this unit facilitates compact and efficient PCB designs, meeting the demands of applications including mobile phones, Bluetooth devices, WLAN modules, ISM band radios, and microprocessor clocks.

Nominal frequency range from 12 MHz to 48 MHz. Compact dimensions of 2.5 x 2.0 x 0.55 mm. Fundamental overtone order for frequency stability. Load capacitance of 6pF for timing accuracy. Wide operating temperature range of -40°C to 85°C.

Series resistance 150Ω for steady oscillation. 4-pin FA-20H surface mount package. RoHS compliant ensuring environmental safety. Optimized for applications in mobile communications and computing.

This Epson crystal unit is designed to provide reliable frequency control and timing accuracy in electronic circuits. It is ideal for industrial, telecommunications, consumer electronics, and laboratory instrument applications where precise timing is critical.
