Epson 16 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.7 mm Height 3.2 mm Length 2.5 mm Width Q22FA2380042112

Free Delivery in India | Lowest Global Shipping Charges

Epson 16 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.7 mm Height 3.2 mm Length 2.5 mm Width Q22FA2380042112

Name: Epson 16 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.7 mm Height 3.2 mm Length 2.5 mm Width Q22FA2380042112
Brand: Epson
SKU: 129481
Price: 1.4 USD
Availability: InStock



Category Crystal Units Brand Epson Condition New

Specifications

Country of Origin	India
Frequency range	16 MHz to 60 MHz
Brand	Epson
Height	0.7mm
Length	3.2mm
Model	Q22FA2380042112
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Interfaces	LAN ISM band radio, Clock for MPU

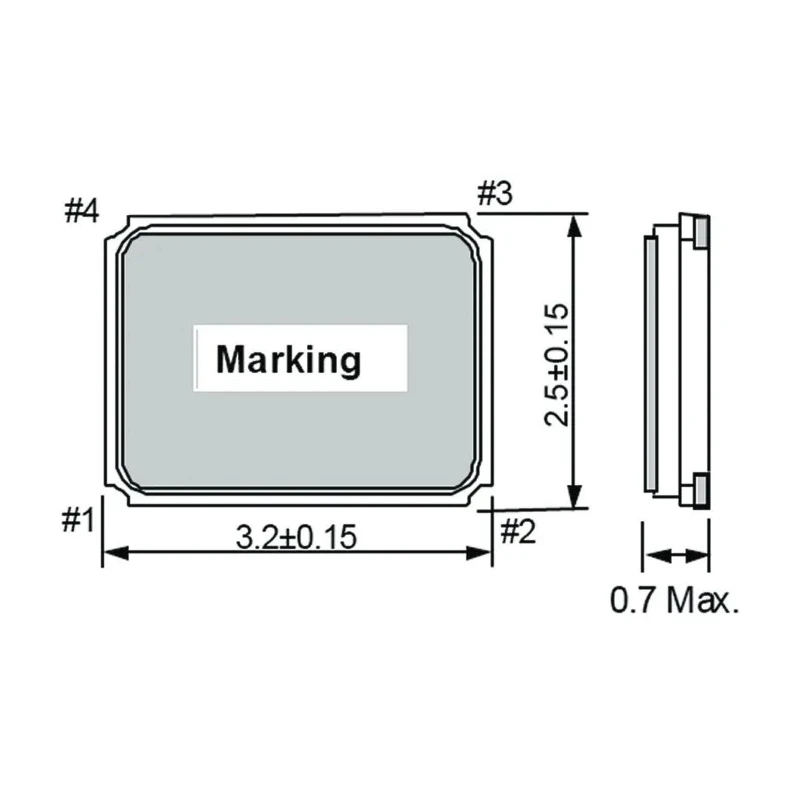

External Dimensions	3.2 x 2.5 x 0.7 mm
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	10pF
Series Resistance	80Ω
Overtone order	Fundamental

Key Features

Surface mount package with compact dimensions of 3.2 x 2.5 x 0.7 mm.
Rated for operating temperatures from -40°C to 85°C.
Load capacitance of 10 pF optimized for electronic circuit compatibility.
Series resistance of 80 Ω for low insertion loss.
Fundamental overtone order for reliable oscillation.
Suitable for mobile phones, Bluetooth, WLAN ISM band radios, and MPU clock applications.
RoHS compliant ensuring environmental safety.
Comes in tape and reel packaging, supporting automated assembly processes.

Product Description

Epson Q22FA2380042112 is a 16 MHz crystal unit designed with a ±50 ppm frequency tolerance and ±30 ppm frequency stability for precise timing applications. The surface mount 4-pin package has compact dimensions of 3.2 mm length, 2.5 mm width, and 0.7 mm height, making it ideal for high-density PCB layouts in modern electronics.

This crystal supports a load capacitance of 10 pF and operates reliably within a temperature range from -40°C to 85°C. With a series resistance of 80 Ω and a fundamental overtone order, the crystal delivers consistent performance suited for sensitive communication systems.

Typical applications include mobile phones, Bluetooth devices, WLAN ISM band radios, and MPU clock generation. The product conforms to RoHS standards, ensuring environmentally friendly manufacturing and use.

The packaging is supplied as tape and reel, compatible with automated placement machines, enhancing manufacturing efficiency and reducing handling errors. This miniature SMD crystal is part of Epson's FA-238 series, known for their low profile and consistency.

Frequency tolerance of ±50 ppm ensures stable frequency output. Compact surface mount 4-pin package dimensions: 3.2 x 2.5 x 0.7 mm. Operational temperature range from -40°C to 85°C. Load capacitance of 10 pF for circuit compatibility.

Series resistance of 80 Ω for low signal loss. Fundamental overtone order design. Ideal for mobile, wireless communication, and MPU clocking. RoHS compliant for environmental safety. Tape and reel packaging supports automated assembly.

Makes efficient use of PCB space with 4-pin compact layout.

This Epson crystal unit is a reliable and precise component for industrial, communication, consumer electronics, and manufacturing applications. Discover more electronics components and Crystal Units across EnvMart’s extensive catalog to optimize your designs and production workflows.
