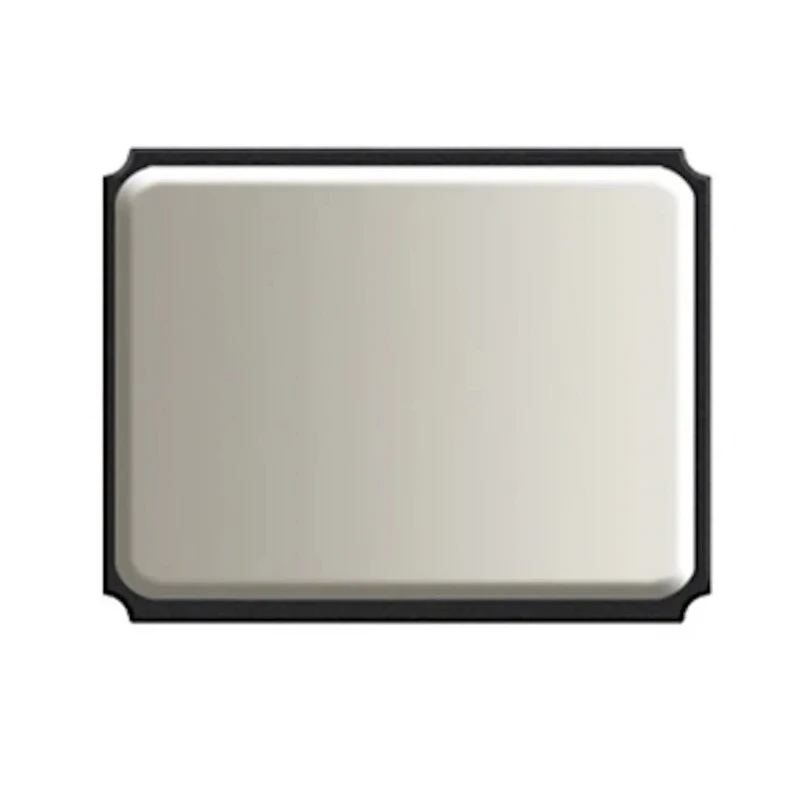

Abracon 16 MHz Crystal ±20 ppm Surface Mount Ceramic Base Ultra Miniature ABM10

Abracon ABM10 16 MHz Crystal is a surface mount device (SMD) ceramic base ultra miniature crystal designed for high precision oscillation applications. It features a sealed ceramic package which delivers excellent reliability and long-term frequency stability.

This crystal unit operates at a standard frequency of 16 MHz with a frequency tolerance of ±20 ppm, providing tight control over frequency variations essential for precise timing applications in electronics. Its frequency stability is ±30 ppm, supporting consistent oscillation over temperature fluctuations.

The surface mount package type and compact physical dimensions of 2.5 mm length, 2 mm width, and 0.7 mm height make it suitable for modern high-density circuit boards, enabling space-saving designs. The load capacitance is rated at 10 pF with a series resistance of 150 ohms, optimized for common oscillator circuits.

Operating temperature range extends from -40°C to +85°C, allowing use in industrial and commercial devices exposed to harsh environments. The crystal supports a wide range of applications including Bluetooth modules, wireless communications, microprocessor clocking, test equipment, portable radios, and MP3 players.

The product comes packaged on tape and reel to support automated pick-and-place assembly processes widely used in modern electronic manufacturing. Compliance with RoHS and REACH directives guarantees that it meets environmental safety requirements.

The ceramic base surface mount design ensures excellent stability and durability. Sealed package protects against environmental contaminants and mechanical stress. Precision frequency control with ±20 ppm tolerance and ±30 ppm stability.

Ideal for wireless, communication, and computing applications requiring compact timing components. Wide operating temperature range for industrial and commercial electronics. Surface mount packaging supports efficient automated manufacturing.

RoHS and REACH compliant. Available in tape and reel packaging for volume production.

This Abracon crystal specifically the ABM10 series is favored in industries requiring reliable, miniature oscillators with excellent frequency stability. Explore more Crystal Units at EnvMart for various frequency needs across electronic product designs and industrial applications.
