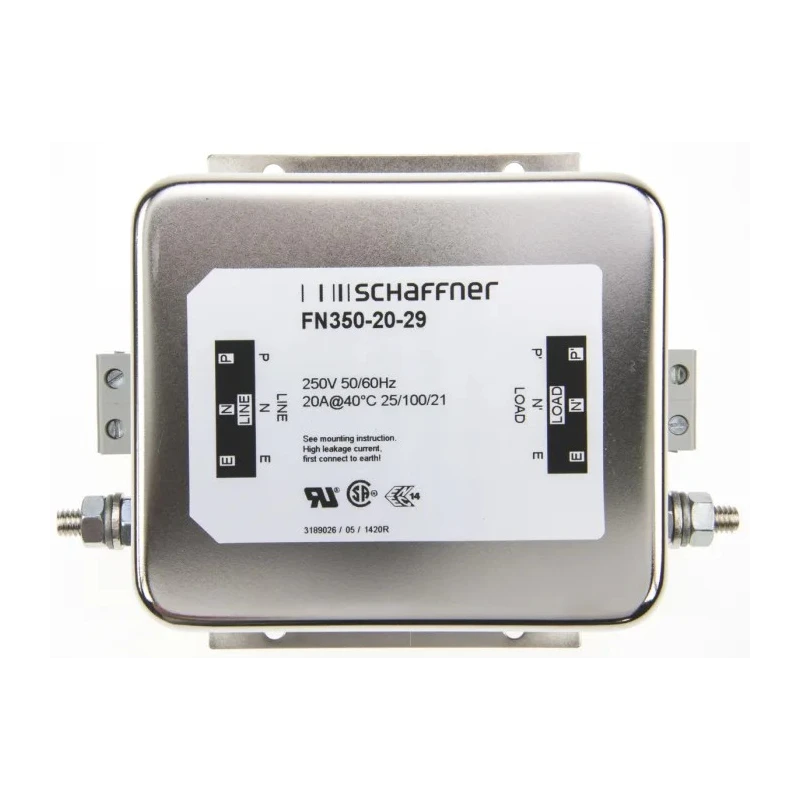

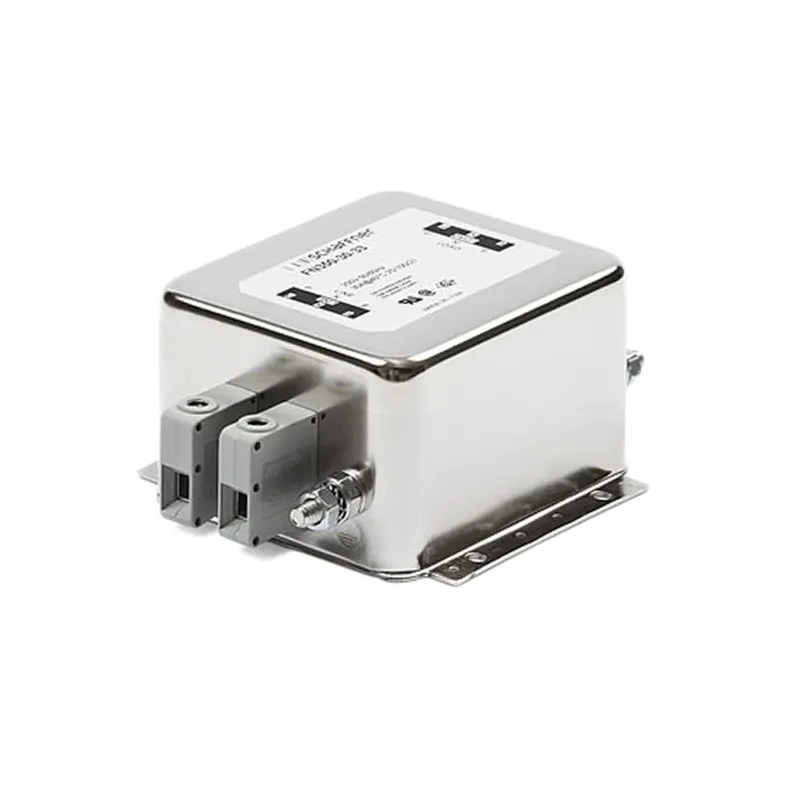

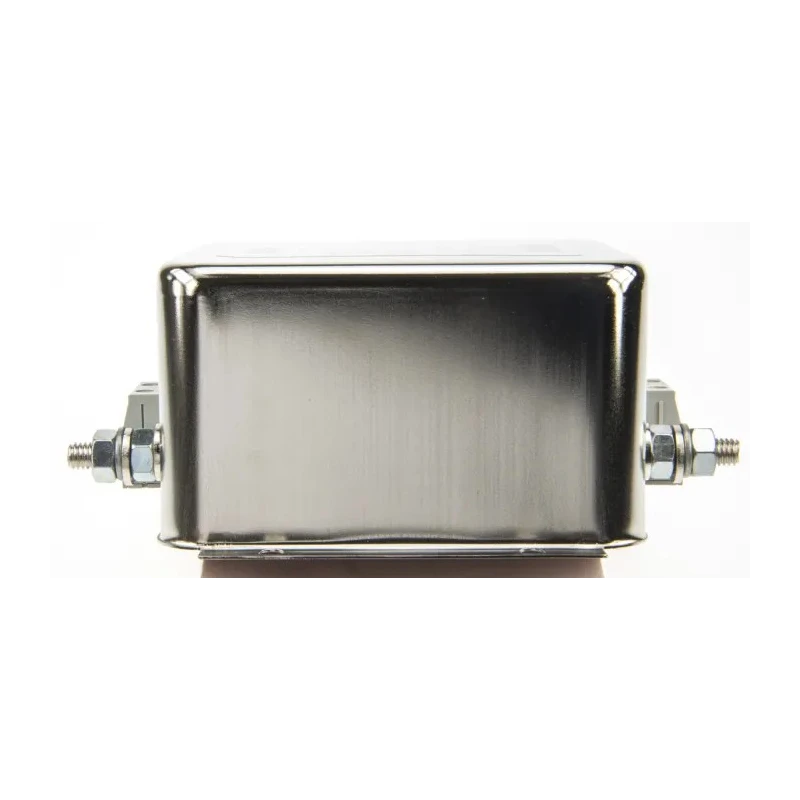

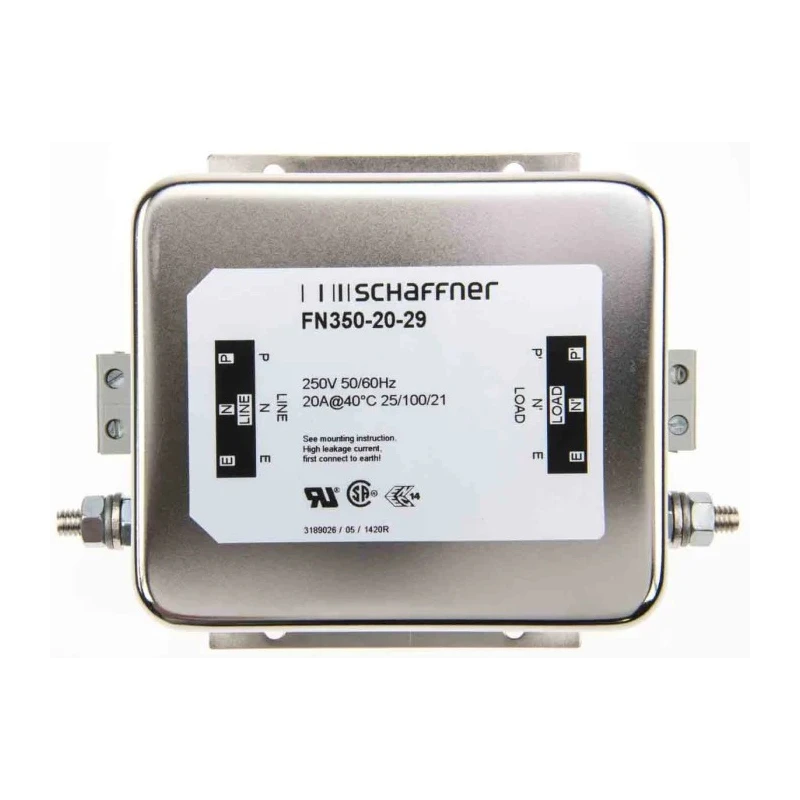

Schaffner Single Phase 20A 250V AC 400Hz Chassis Mount EMC Filter Terminal Block FN350
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 57mm |
| Length | 105mm |
| Model | FN350 |
| Depth | 138.5mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN350 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 4.7μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Leakage Current | 4.9mA |
| Maximum Voltage | 250V ac |
| Termination Style | Terminal Block |
| Power Loss | 6.1W |
Key Features
- Compact single stage EMI filter suitable for drives operating at 400Hz frequency.
- Rated maximum current of 20 amperes and voltage of 250 volts AC.

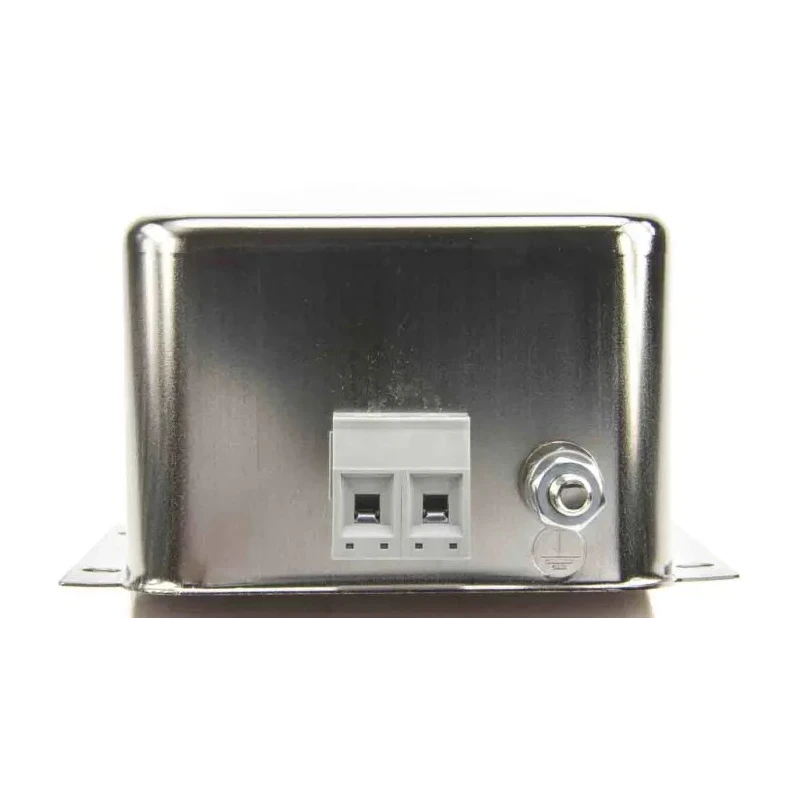

- Features industrial grade terminal block for secure chassis mounting installation.
- High component values ensure effective common and differential mode attenuation at low frequencies.
- Operating temperature range from -25°C to 100°C for reliable performance in diverse environments.
- Low leakage current of 4.9mA and power loss of 6.1 watts ensure energy-efficient operation.
- Compliant with IEC 60950 and tested to standards EN55011/14/22 IEC 950 for safety and performance.
- Ideal for use in automation, power supplies, testing, and office equipment applications.
Product Description
Schaffner FN350 is a single phase EMC (Electromagnetic Compatibility) filter optimized for high power motor drive applications at 400Hz frequency. This chassis mount filter offers a robust and compact solution with an industrial grade terminal block for quick and secure installation.
With a maximum current rating of 20A and maximum voltage of 250V AC, the FN350 filter provides high attenuation performance for both common mode and differential mode noise at low frequencies, ensuring improved electromagnetic interference control.
Operating reliably in temperature ranges from -25°C up to 100°C and featuring a low leakage current of 4.9mA paired with a power loss of only 6.1W, it is suitable for demanding industrial and commercial environments.
The filter dimensions are 105mm in length, 57mm in height, and 138.5mm in depth, allowing for easy integration into equipment chassis. The product is compliant with IEC 60950 standards and tested against EN55011/14/22 and IEC 950 for safety and EMI performance guarantees.
Typical applications include automation equipment, power supplies, SMPS units, testing and measurement devices, and office machines. This filter series offers a quality solution to reduce electromagnetic noise and enhance the reliability of single-phase drive systems.
Technical features include a single stage design with 4.7μF capacitance to provide effective EMI filtering. This makes the FN350 a preferred choice where space savings and high electrical performance are required.
Compact single stage EMI filter suitable for drives operating at 400Hz frequency. Rated maximum current of 20 amperes and voltage of 250 volts AC. Features industrial grade terminal block for secure chassis mounting installation.
High component values ensure effective common and differential mode attenuation at low frequencies. Operating temperature range from -25°C to 100°C for reliable performance in diverse environments. Low leakage current of 4.9mA and power loss of 6.1 watts ensure energy-efficient operation.
Physical dimensions: length 105mm, height 57mm, depth 138.5mm for compact installation. Compliant with IEC 60950 and tested to standards EN55011/14/22 IEC 950 for safety and performance. Ideal for use in automation, power supplies, testing, and office equipment applications.
Explore our Electronics Components category on EnvMart for more Schaffner products and EMC Filter solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN350 filter has a maximum current rating of 20 amperes.
It is rated for a maximum operating voltage of 250 volts AC.
This model operates at a frequency of 400Hz.
The dimensions of this filter are 105mm in length, 57mm in height, and 138.5mm in depth.
The capacitance value of this EMC filter is 4.7μF.
It operates reliably within a temperature range of -25°C to 100°C.
This model features a chassis mount design for secure installation.
The leakage current for this filter is 4.9mA.
The power loss for this EMC filter is 6.1 watts.
It is compliant with IEC 60950 and has been tested to EN55011/14/22 and IEC 950 standards.
This filter is ideal for use in automation equipment, power supplies, testing devices, and office machines.
The FN350 is designed as a single stage EMC filter.
