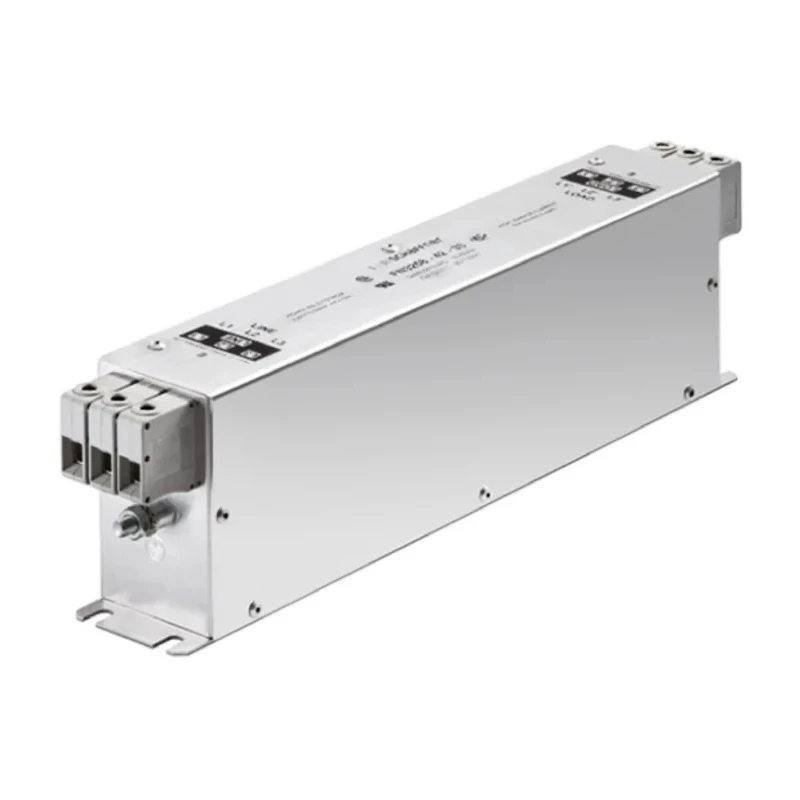

Schaffner 16A 480V AC 60Hz Chassis Mount EMC Filter with Terminal Block 3 Phase FN3258
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 70mm |
| Length | 250mm |
| Model | FN3258 |
| Depth | 45mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3258 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 3 |
| Leakage Current | 33mA |
| Maximum Voltage | 480V ac |
| Termination Style | Terminal Block |
| Power Loss | 6.1W |
Key Features
- Compact design with dimensions 250mm length, 70mm height, and 45mm depth.
- Offers excellent attenuation performance from 150 kHz to 30 MHz range.
- Robust thermal behavior with operating temperature range from -25°C to 100°C.
- Incorporates a leakage current of 33mA ensuring safe operation.
- Designed for use in variable speed motor drives, servo drives, inverters, converters, HVAC, and power supplies.
- Lightweight construction suitable for installations with limited mounting space.
- Chokes exhibit superior saturation resistance supporting cable lengths up to 50m.
- Certified by CSA for Canada and US markets, complying with EN 133200 and IEC 60939 standards.
Product Description
Schaffner FN3258 chassis mount EMC filter is crafted for demanding industrial and commercial applications requiring electromagnetic interference suppression in 3 phase electrical systems. Rated at 16A current and operating voltage of 480V AC at 60Hz, this filter is suitable for installations with limited space due to its compact dimensions: 250mm length, 70mm height, and 45mm depth.
The filter features high attenuation ranging from 150 kHz to 30 MHz, protecting sensitive equipment from electrical noise. Its robust design includes superior choke saturation resistance allowing use with cable lengths up to 50 meters, ensuring operational integrity under heavy load.
Designed specifically to meet industrial standards EN 133200 and IEC 60939, the FN3258 filter incorporates a leakage current of 33mA, enabling safe operation from a minimum temperature of -25°C up to 100°C. The chassis mount installation combined with terminal block connections simplifies integration within motor drives, servo drives, inverters, converters, HVAC equipment, elevators, and power supply systems.
Lightweight yet durable, this EMC filter offers a reliable solution for enhancing electromagnetic compatibility in electrical networks. Certified by CSA for North American markets, the unit ensures compliance and performance for demanding applications.
Compact dimensions allow for installation in tight mounting spaces. Exceptional attenuation performance from 150 kHz to 30 MHz. Wide temperature range supports diverse environmental conditions. Low leakage current for enhanced safety.
Robust design with choke saturation resistance for long cable runs. Certified to international standards EN 133200 and IEC 60939. Ideal for variable speed drives, HVAC systems, and power supplies.
This Schaffner EMC filter is an essential component for ensuring electromagnetic compatibility in industrial and commercial installations. Explore more high-quality electronic components and EMC solutions through EnvMart's comprehensive catalog.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This EMC filter operates at a voltage of 480V AC and a frequency of 60Hz.
The FN3258 model has dimensions of 250mm in length, 70mm in height, and 45mm in depth.
The maximum current rating for this filter is 16A.
It can operate safely within a temperature range of -25°C to 100°C.
The leakage current for this unit is 33mA, ensuring safe operation.
It offers excellent attenuation performance across a frequency range from 150 kHz to 30 MHz.
This filter is designed for chassis mount installation.
It is designed for use in variable speed motor drives, servo drives, inverters, converters, HVAC systems, and power supplies.
The filter features a terminal block termination style for easy integration.
It complies with EN 133200 and IEC 60939 standards and is certified by CSA for the North American market.
The power loss for this EMC filter is rated at 6.1W.
The design includes superior choke saturation resistance, allowing use with cable lengths up to 50 meters.
