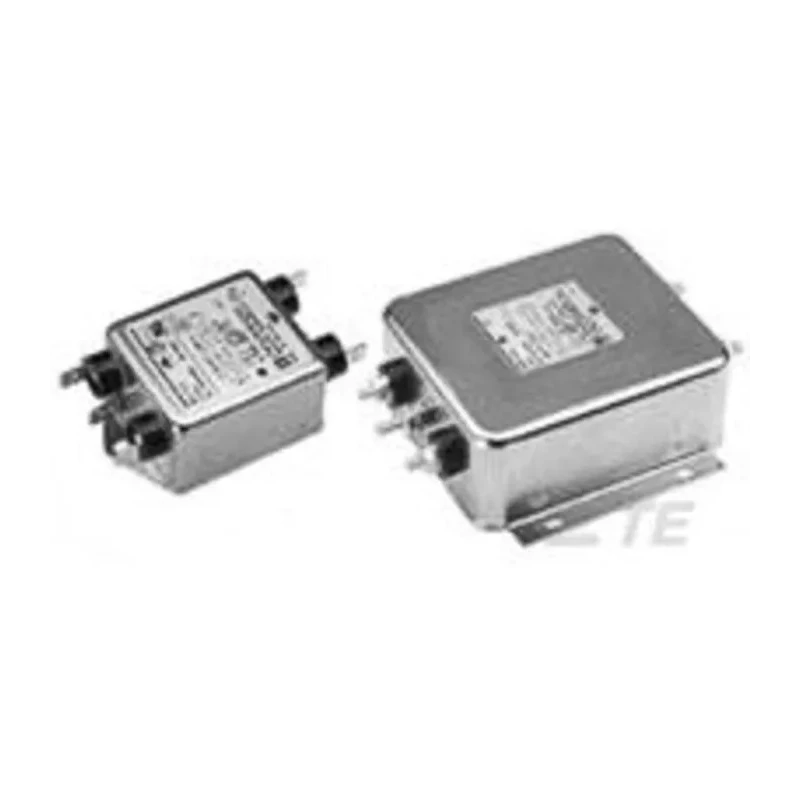

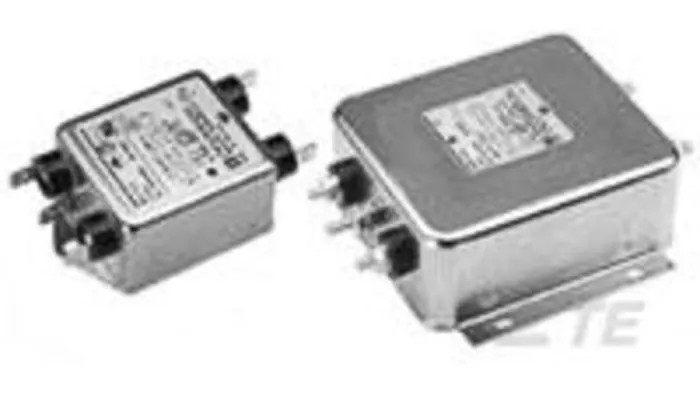

TE Connectivity Corcom W Series Power Line RFI Filter 3A 250V AC Flange Mount Fast-On 1 Phase 3VW1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 46.2mm |
| Length | 85.3mm |
| Model | 3VW1 |
| Depth | 32.5mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | Corcom W |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 3A |
| Number of Phases | 1 |
| Maximum Voltage | 250V ac |
| Standards/Approvals | RoHS |
| Termination Style | Fast-On |
Key Features
- Designed for emission control in power line applications.
- Provides high impedance for common mode and differential mode interference suppression.
- Operates effectively at 50 Hz and 60 Hz frequencies.
- Compact size with length 85.3 mm, height 46.2 mm, and depth 32.5 mm.
- Suits consumer electronics, small machine tools, and measurement equipment.
- Flange mounting style enables secure installation.
- Fast-On termination facilitates easy electrical connections.
- Compatible with SCR and T2L circuit equipment.
Product Description
TE Connectivity 3VW1 Corcom W Series Power Line RFI Filter is a multipurpose electrical component designed for emission control in industrial and electronic equipment. It provides robust interference suppression by offering a doubled line-to-ground (N=4) impedance in common mode and a doubled pi configuration (N=5) for line-to-line differential mode interference. The filter supports a maximum current of 3 A and a voltage rating of 250 V AC, making it suitable for numerous consumer electronics, small machine tools, food service equipment, and precision measurement & instrumentation applications.
Equipped with a flange mount and Fast-On termination style, the 3VW1 model ensures easy installation and secure connections in 1-phase power circuits. Its operational frequency bandwidth covers both 50 Hz and 60 Hz, offering flexibility for different supply standards. The dimensions of 85.3 mm length, 46.2 mm height, and 32.5 mm depth make it compact yet effective for tight mounting spaces.
The W Series filter is optimized for high impedance frequency ranges, providing excellent noise and interference attenuation when integrated within devices using silicon controlled rectifiers (SCR) or T2L control circuits. Manufactured to meet RoHS compliance, the product assures environmental responsibility and safety.
Designed to suppress EMI and RFI in power lines effectively. Features flange mounting for easy and reliable installation. Fast-On terminations reduce assembly time and improve maintenance. Compatible with single-phase electrical systems at 250 V AC.
Suitable for consumer electronics, machine tools, and instrumentation. Compact physical size allows versatility in integration. Supports operating temperatures ranging from -10°C to 40°C for reliable performance. Manufactured in China following strict quality standards.
Explore the complete range of Power Line Filters at EnvMart for your industrial and electronic emission control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 3 A.
This filter has a voltage rating of 250 V AC.
The dimensions are 85.3 mm in length, 46.2 mm in height, and 32.5 mm in depth.
It features a flange mounting style for secure installation.
The 3VW1 is equipped with a Fast-On termination style, facilitating easy electrical connections.
It operates effectively at both 50 Hz and 60 Hz frequencies.
The operating temperature range is from -10°C to 40°C.
Yes, it is manufactured to meet RoHS compliance, ensuring environmental responsibility.
It is suitable for consumer electronics, small machine tools, food service equipment, and precision measurement applications.
It provides high impedance for common mode and differential mode interference suppression.
This filter is compatible with single-phase electrical systems.
It is manufactured in China following strict quality standards.
