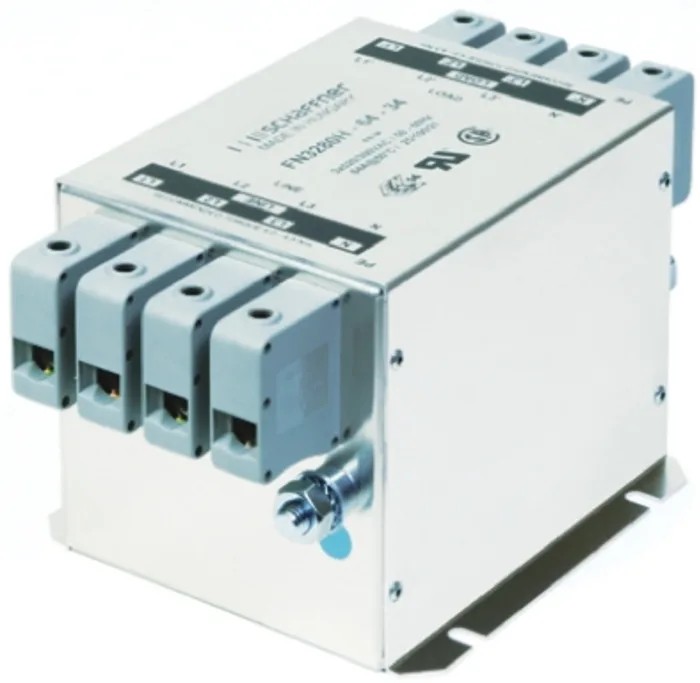

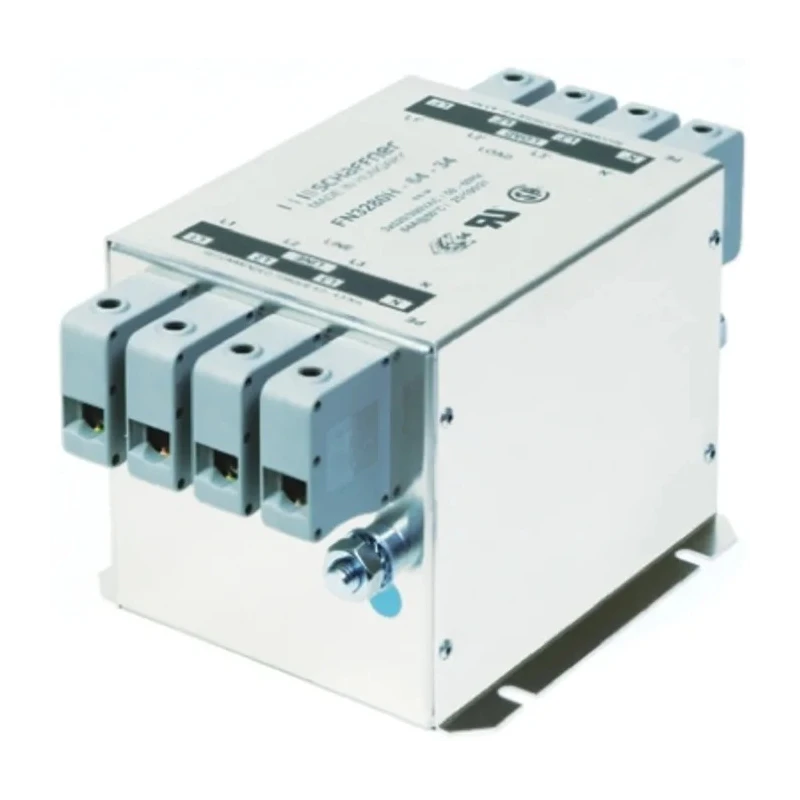

Schaffner Chassis Mount 3 Phase EMI Filter 16A 520V AC 60Hz Terminal Block FN3280
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 80mm |
| Length | 143mm |
| Model | FN3280 |
| Depth | 142.8mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3280 |
| Maximum Operating Temperature | 100°C |
| Resistance | 1500kΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 3 |
| Leakage Current | 1mA |
| Maximum Voltage | 520V ac |
| Termination Style | Terminal Block |
| Power Loss | 6W |
Key Features
- Designed for compact and lightweight industrial equipment noise attenuation.
- Provides low leakage current of 1mA, suitable for domestic and industrial environments.
- Operates reliably between -25°C to 100°C temperature range.
- Constructed with solid, touch-safe terminal blocks according to EN 60204-1 standards.
- Installation optimized for ease with good accessibility for both automatic and hand tools.
- Aligned to common fuse values facilitating convenient current rating matching.
- Power loss rated at 6 Watts allowing efficient operation.
- Robust resistance of 1500kΩ ensures electrical durability and filtering performance.
Product Description
Schaffner FN3280 EMI filter chassis mount model is designed for 3 phase power line filtering applications requiring a maximum current of 16A and maximum voltage of 520V AC at 60Hz frequency. The filter features a terminal block termination style optimized for industrial and mixed domestic environments, achieving exceptional noise attenuation with low leakage current of 1mA.
The compact and lightweight FN3280 series enables easy integration into industrial equipment, meeting standard electrical machinery requirements and increasing mains input immunity. The chassis mount design with solid, touch-safe terminal blocks complies with EN 60204-1 for safe operation and installation. Operating temperature ranges from -25°C to 100°C, ensuring durability in varying ambient conditions.
Installation is simplified by providing excellent accessibility for automatic and manual hand tools, supporting efficient assembly processes. The filter’s current ratings correspond closely with common fuse values, simplifying selection and replacement in electrical systems.
Physical dimensions are 143mm length, 142.8mm depth, and 80mm height, providing a compact footprint suitable for various industrial enclosures. The device exhibits a power loss of 6 Watts under operational loading and an electrical resistance of 1500 kΩ for reliable signal attenuation and filtering performance.
Manufactured in Thailand, this EMI filter is ideal for industrial, manufacturing, HVAC, and electronic equipment applications requiring effective suppression of electrical noise on 3 phase power lines.
Designed for compact and lightweight industrial noise attenuation applications. Low leakage current of 1mA for safety and efficiency. Robust chassis mount form factor aiding installation. Terminal block connection ensuring secure wiring.
Wide operating temperature range from -25°C to 100°C. Power loss of 6W enabling efficient functionality. Dimensions: 143 x 142.8 x 80mm for space saving integration. Aligns with common fuse ratings for easy electrical coordination.
High resistance of 1500 kΩ for dependable filtering. Manufactured in Thailand, maintaining quality standards. Explore more Schaffner EMI filters and related electronics components at EnvMart for a wide range of industrial and commercial applications.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 16A.
This model operates at a maximum voltage of 520V AC.
It operates reliably within a temperature range of -25°C to 100°C.
The filter features a chassis mount design, allowing for secure installation.
The leakage current is rated at 1mA, making it suitable for both domestic and industrial environments.
The physical dimensions are 143mm in length, 142.8mm in depth, and 80mm in height.
The power loss is rated at 6 Watts, allowing for efficient operation.
It uses a terminal block termination style, optimized for industrial applications.
The electrical resistance is 1500 kΩ, ensuring effective filtering performance.
This EMI filter is manufactured in Thailand.
This model is ideal for industrial, manufacturing, HVAC, and electronic equipment applications requiring electrical noise suppression.
Installation is optimized for accessibility, accommodating both automatic and hand tools for efficient assembly.
