Schaffner 16 A 250V ac/dc 400Hz Chassis Mount EMI Filter Fast-On Terminals FN2070

Free Delivery in India | Lowest Global Shipping Charges

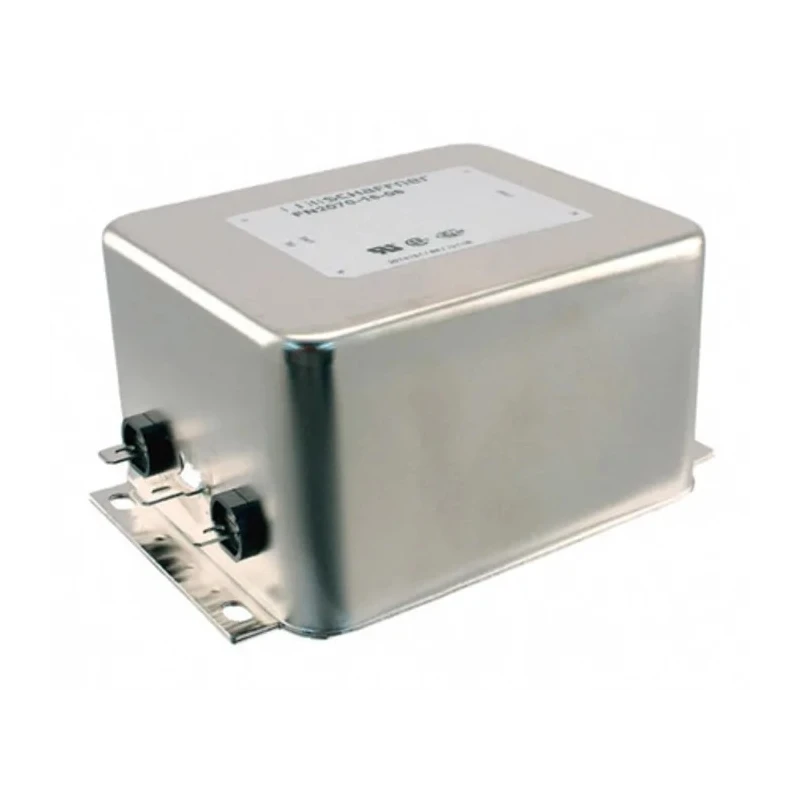

Schaffner 16 A 250V ac/dc 400Hz Chassis Mount EMI Filter Fast-On Terminals FN2070

Name: Schaffner 16 A 250V ac/dc 400Hz Chassis Mount EMI Filter Fast-On Terminals FN2070
Brand: Schaffner
SKU: 289937
Price: 110.61 USD
Availability: InStock



Category EMI Filter Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	57.6mm
Length	85.5mm
Model	FN2070
Depth	119mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	FN2070
Maximum Operating Temperature	100°C
Number Of Stages	2
Resistance	220kΩ
Capacitance	4.7nF
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	1
Leakage Current	734μA
Maximum Voltage	250V ac/dc
Inductance	2.8mH
Termination Style	Fast-On

Key Features

Two-stage design provides high attenuation performance in differential and common modes.
Features 0.25 inch Fast-On terminals for quick and secure chassis mounting.
Compact aluminium case measuring 85.5 mm length, 119 mm depth, and 57.6 mm height.
Suitable for electrical, electronic equipment, medical devices, machinery, and industrial automation.
Operates reliably between -25°C and 100°C with a leakage current of 734 μA.
Capacitance of 4.7 nF and inductance of 2.8 mH ensure effective EMI filtering.
Resistance of 220 kΩ for stable and consistent filtering characteristics.
Designed to meet demanding EMI suppression needs without certification claims.

Product Description

Schaffner FN2070 chassis mount EMI filter, model FN2070-16-06, is a two-stage EMI filter designed for high performance in industrial electronic applications. It supports a maximum continuous current of 16 A and maximum voltage of 250 V AC/DC at an operating frequency of 400 Hz.

Constructed in a robust aluminium case, this EMI filter uses chokes with high saturation resistance and excellent thermal behavior to provide effective noise reduction in both differential and common modes. The compact dimensions of 85.5 mm length, 119 mm depth, and 57.6 mm height allow for easy chassis mounting using the Fast-On 0.25 inch terminals.

Operating temperature ranges from -25°C to 100°C with a leakage current of 734 μA ensure reliable performance under harsh conditions. The capacitance of 4.7 nF and inductance of 2.8 mH contribute to efficient suppression of electromagnetic interference. The 220 kΩ resistance provides stability for filtering effectiveness in diverse applications.

This EMI filter series is ideal for electrical and electronic equipment, industrial machinery, building automation, and medical devices where good filter performance is essential to reduce noise and improve electromagnetic compatibility. The filter's two-stage design enhances suppression of unwanted signals especially at high frequencies. Fast-On terminals facilitate quick and stable mounting on a chassis.

The FN2070 series includes optional medical (B type) and safety (A type) versions; this particular filter is a standard type without specific approvals. It is targeted for commercial and industrial use where robust EMI control is required.

Two-stage chassis mount EMI filter in an aluminium case. High conducted attenuation by chokes with high saturation resistance. Operation up to 16 A current and 250 V AC/DC voltage. Fast-On 1-phase connection facilitates easy installation.

Compact dimensions suitable for various equipment. Thermal stable and durable with wide operating temperature range. Suppresses electromagnetic interference at 400 Hz frequency. Reliable choice for industrial, medical, and automation applications.

Explore the extensive range of Schaffner EMI Filters and power line filters available on EnvMart for enhanced electrical noise control solutions.
