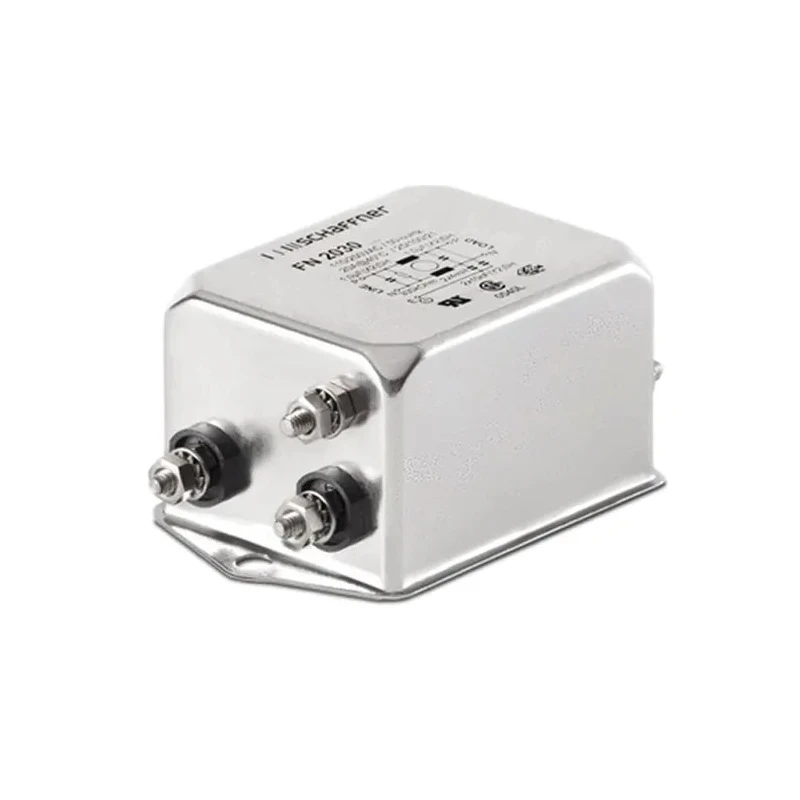

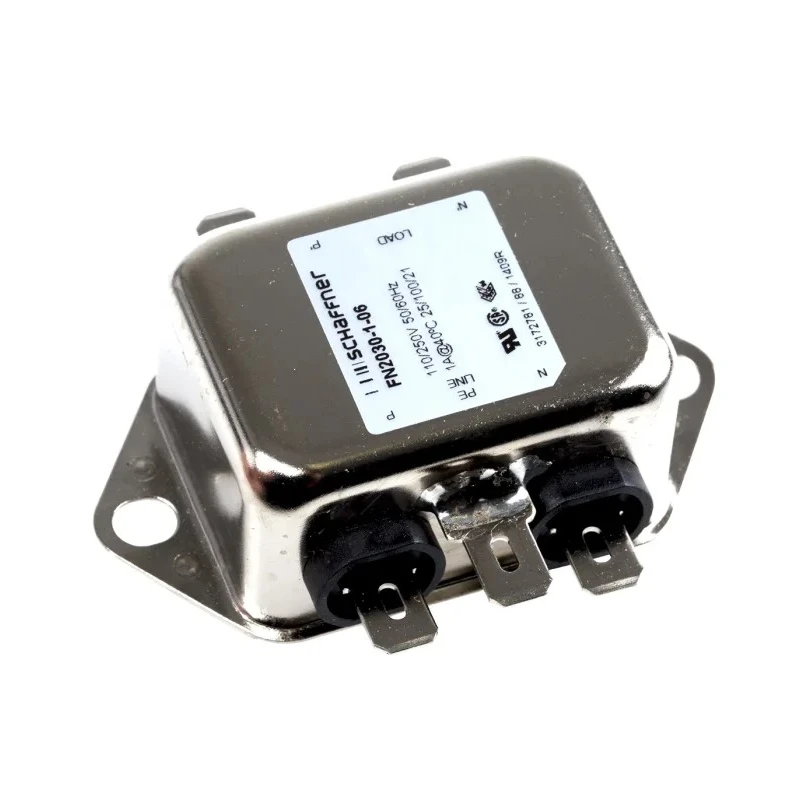

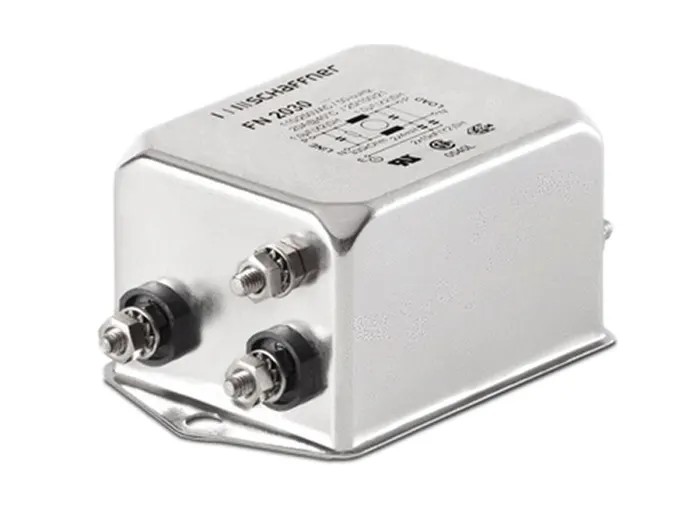

Schaffner 1A 250V AC/DC 400Hz Chassis Mount EMI Filter, Fast-On, 1 Phase FN2030

The Schaffner FN2030-1-06 is a high-performance EMI filter designed for industrial, commercial, and instrumentation applications where effective electromagnetic interference attenuation is essential. With a rated current of 1 ampere and a voltage rating of 250V for both AC and DC power systems, this filter is engineered to minimize unwanted conducted noise and enhance equipment performance in sensitive environments.

This model features a compact, easy-to-install chassis mount form factor, making it suitable for integration into control panels, industrial automation machinery, power supplies, and consumer devices. The fast-on termination style provides efficient, secure electrical connections, minimizing wiring time and maintenance in demanding system layouts.

The FN2030-1-06 filter employs high-permeability magnetic core materials and robust thermal design, ensuring exceptional attenuation performance and reliable operation across a wide operating frequency range, including both DC applications and AC supplies up to 400Hz. The component supports a single phase and features one filter stage, optimizing installation for environments where space is at a premium without sacrificing filtering effectiveness.

Engineered for safety and stability, the filter operates within a broad ambient temperature window from -25°C to +100°C and maintains low leakage current (340μA), supporting compliance with common safety requirements. The specified 220nF capacitance and 20mH inductance contribute to superior differential mode noise reduction.

Typical applications span from electrical and electronic equipment, laboratory and medical devices (with specialized variants available for medical safety), and electronic data processing systems, to power conditioning in noisy industrial or commercial electrical installations. The filter’s compact size (64mm × 35mm × 24.3mm), low power loss (0.9W), and rugged build quality make it an excellent fit for modern, high-density system architectures.

The Schaffner FN2030-1-06 EMI filter is widely selected in manufacturing, automation, HVAC systems, laboratory instruments, communications equipment, and various sectors requiring robust EMI mitigation for compliance with EMC regulations.
