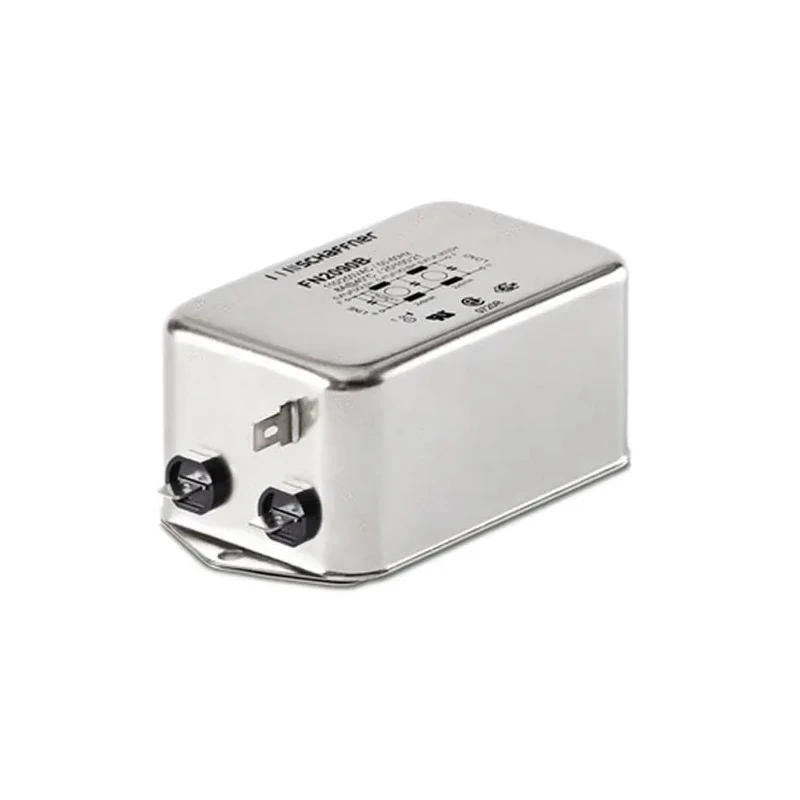

Schaffner Chassis Mount EMI Filter 30 A 250V ac/dc 0Hz-400 Hz Stud Termination 1 Phase FN2090

Schaffner FN2090 EMI Filter is a chassis mount type designed for suppression of electromagnetic interference in electrical and electronic devices. This 1-phase filter supports maximum current of 30 A and voltage rating of 250V ac/dc. Featuring a two-stage design, it ensures very high differential and common-mode attenuation, making it well-suited for noisy industrial applications.

The filter has a stud termination style and operates efficiently across a frequency spectrum ranging from DC (0 Hz) up to 400 Hz. Its construction allows stable operation within temperatures from -25°C to 100°C. Dimensions are compact at 94 mm in length, 57.5 mm depth, and 45.4 mm height, enabling easy chassis mounting and integration into existing equipment.

Electrical parameters include an inductance of 1.5 mH and leakage current of 1.02 mA, with resistance rated at 220 kΩ. The filter is predominantly used in electrical and electronic equipment, consumer goods, building automation, machinery, medical devices, communication equipment, and office automation where EMI suppression is critical for performance and regulatory compliance.

While no specific certifications or standards approvals are indicated, the robust design and Schaffner brand reliability assure dependable function in various industrial, commercial, and laboratory environments. Optional types in the FN 2090 series include medical and safety variants as well as overvoltage protection models that cater to specialized user requirements.

Equipped with a two-stage filter for excellent attenuation of conducted noise. Designed for chassis mounting, facilitating easy installation. Operates effectively over 0 Hz to 400 Hz frequency range. Specified for a maximum operating temperature of 100°C and minimum of -25°C.

Compact dimensions with length 94 mm, depth 57.5 mm, and height 45.4 mm. Features inductance of 1.5 mH and leakage current of 1.02 mA. Resistance value is 220 kΩ delivering stable electrical performance. Ideal for use in electrical and electronic equipment requiring EMI suppression.

Absence of certifications noted; standard compliance details unavailable. Robust construction meets industrial application demands including machinery and medical equipment.
