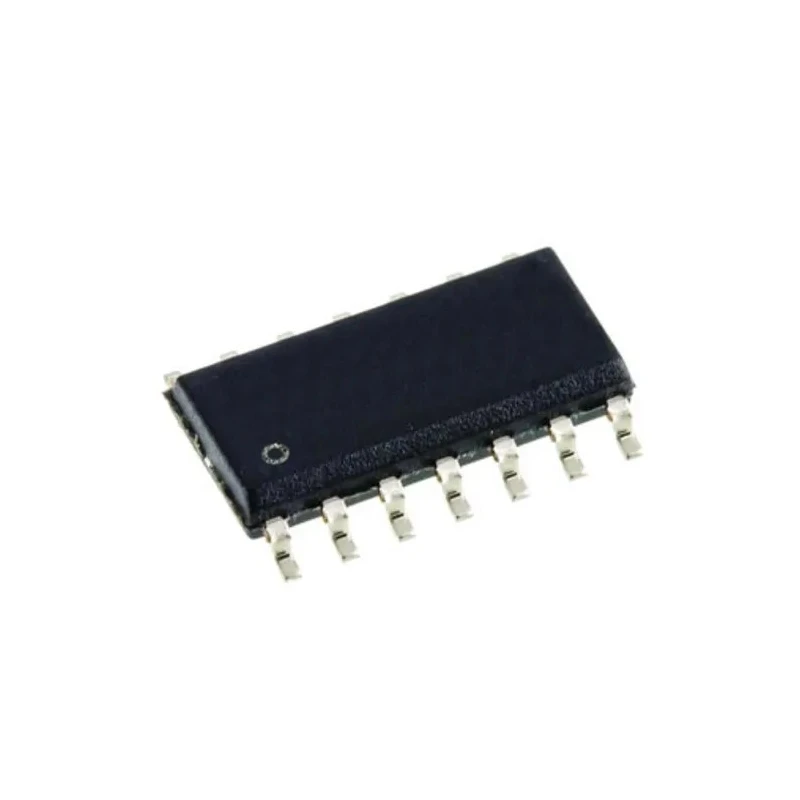

Infineon High Side Power Switch IC 2 Outputs Surface Mount 14-Pin DSO BTS51802EKAXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon High Side Power Switch IC 2 Outputs Surface Mount 14-Pin DSO BTS51802EKAXUMA1

Name: Infineon High Side Power Switch IC 2 Outputs Surface Mount 14-Pin DSO BTS51802EKAXUMA1
Brand: Infineon
SKU: 138875
Price: 1.54 USD
Availability: InStock



Category Power Switch IC Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.47mm
Length	8.65mm
Model	BTS51802EKAXUMA1
Width	3.9mm
Mount Type	Surface
Number of inputs	2
Series	PROFET
Maximum Operating Temperature	150°C
Package Type	DSO-14
Minimum Operating Temperature	-40°C
Operating Current	2A
Number of outputs	2
Pin Count	14
Automotive Standard	AEC
Maximum Supply Voltage	28V
Minimum Supply Voltage	-0.3V
Switch On Resistance RdsOn	360mΩ

Key Features

Offers integrated overload, short-circuit, thermal shutdown, and overvoltage protection.
Provides very low on-resistance of 360 milliohms for efficient current flow.
Supports operation with supply voltages from -0.3V up to 28V.
Designed for automotive AEC applications with robust electrostatic discharge (ESD) protection.
Operates reliably over a wide temperature range from -40°C to 150°C.
Compact DSO-14 package measures 8.65 mm length, 3.9 mm width, and 1.47 mm height.
Standard surface mount type with 14 pins for easy PCB integration.
Maximum continuous operating current of 2A for multi-channel power management.

Product Description

Infineon BTS51802EKAXUMA1 is a PROFET Smart High-Side Power Switch IC designed for automotive and industrial power management applications. Featuring two high-side output channels, it offers efficient load switching with integrated protections against overload, short-circuit, thermal shutdown, and overvoltage events. This control IC is implemented in a compact 14-pin DSO-14 surface mount package, making it ideal for space-constrained PCB layouts.

Designed to handle supply voltages up to 28V and maximum operating currents of 2A, the BTS51802EKAXUMA1 delivers low conduction losses due to its 360 milliohm on-resistance. It provides robust ESD protection and complies with automotive AEC standards, ensuring reliable operation under harsh environments and wide temperature ranges from -40°C to 150°C.

The small form factor with dimensions 8.65 mm × 3.9 mm × 1.47 mm makes it suitable for demanding automotive and industrial control boards. Its surface mount configuration facilitates automated assembly processes, improving production efficiency in manufacturing facilities.

Typical applications include automotive body electronics such as lamp control, heater controls, and motor drives, as well as industrial and household appliances requiring protected high-side switching capabilities.

Integrated overload, current limitation, short-circuit, thermal shutdown, and overvoltage protections. Highly efficient low RdsOn of 360 mΩ minimizes power losses. Operational voltage range from -0.3 V to 28 V supports diverse power rails.

Automotive qualified per AEC standards ensuring quality and reliability. RoHS compliant power switch IC supports environmental regulations. Compact surface mount DSO-14 package suitable for space-saving designs. Designed for 2-channel control with 14-pin interface.

Infineon BTS51802EKAXUMA1 High Side Power Switch IC is a reliable solution for complex power switching needs in automotive and industrial sectors. Browse EnvMart for more power management ICs and Infineon product ranges suitable for precision and durability.
