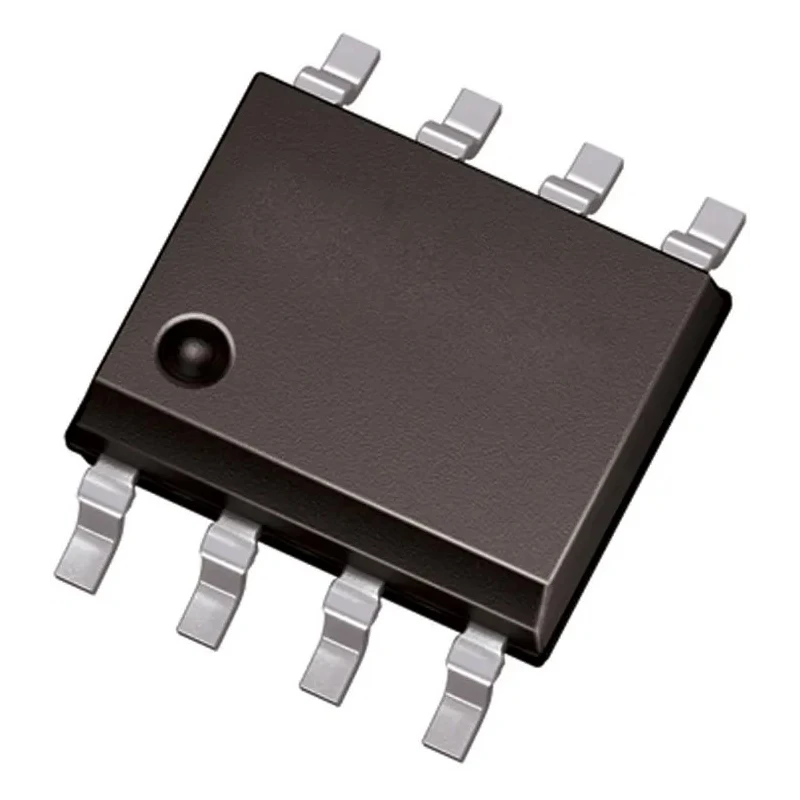

Infineon High Side Power Switch IC Single Channel 3A Current Surface Mount 8-Pin DSO-8 BTS50901EJAXUMA1

The Infineon BTS50901EJAXUMA1 is a high side power switch integrated circuit designed for efficient current management in electronic circuits. Featuring a single high side switch channel capable of delivering up to 3 amperes, this surface mount device in an 8-pin DSO-8 package is suitable for industrial, automotive, and electronic applications requiring reliable power switching.

Designed with a low switch on resistance of 180 milliohms, the device minimizes conduction losses and improves overall system efficiency. It is capable of operating from supply voltages as low as -0.3V up to 28 volts and supports five outputs and one input, providing flexible control capabilities.

The device is built to endure extreme temperature ranges from -40°C to 150°C, making it suitable for automotive environments and demanding industrial conditions. Protection features integrated into the BTS50901EJAXUMA1 include overload protection, current limitation, short-circuit shutdown, thermal shutdown, and overvoltage protection, increasing the device's robustness and reliability in application.

This power switch IC complies with the Automotive Electronics Council (AEC) standard, affirming its appropriateness for automotive electronic systems and applications requiring high reliability and stringent quality controls.

Its compact dimensions of 4.9mm length, 3.9mm width, and 1.45mm height facilitate space-saving PCB designs, and the surface mount DSO-8 package aids automated assembly and reduces parasitic inductances.

High side switch topology for efficient load control. Low switch on resistance of 180mΩ to optimize power consumption. Overvoltage and thermal protections for enhanced durability. Automotive compliant (AEC standard) for stringent quality needs.

Wide operating temperature range from -40°C to 150°C. Compact 8-pin DSO package for automated surface mounting. Single channel supporting 3A continuous current. Multiple protections including short-circuit and overload. Designed for industrial, automotive, and electronic circuit applications.

Part of the PROFET series providing smart power switching solutions.

The Infineon BTS50901EJAXUMA1 is a premium choice for engineers and designers looking for a reliable high side power switch IC for a broad range of applications including automotive electronics, industrial control systems, and power management circuits. Explore more products in the Power Switch ICs category and other Power Management ICs at EnvMart to find compatible components and solutions.
