| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.15mm |
| Length | 0.58mm |
| Model | ESD200B1CSP0201XTSA1 |
| Width | 0.28mm |
| Mount Type | Surface |
| Series | ESD |
| Maximum Operating Temperature | 125°C |
| Package Type | WLL-2-1 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 45W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 100nA |

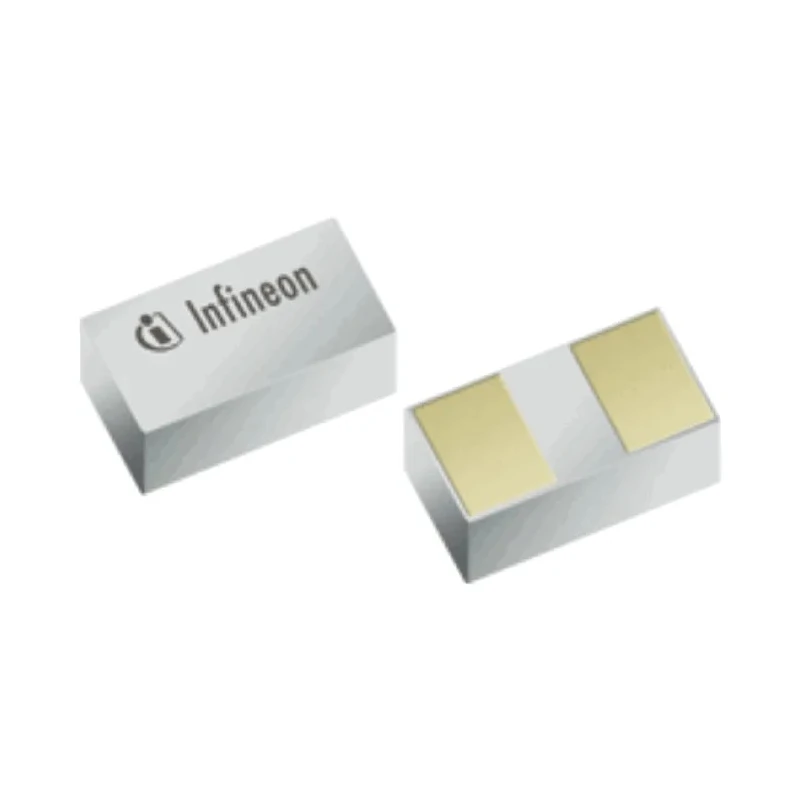

Infineon ESD200B1CSP0201XTSA1 is a high-performance 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. It offers a peak pulse power dissipation of 45 W in a compact 2-pin WLL-2-1 package, ensuring effective protection of electronic circuits against electrostatic discharges and transient voltage spikes.
This TVS diode features a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5.5 V, making it suitable for sensitive low-voltage electronics. It provides extremely low leakage current up to 100 nA which minimizes power loss, and a low capacitance value of 6.5 pF typical, allowing high-speed data line protection without signal degradation.
The device's small form factor with dimensions of 0.58 mm length, 0.28 mm width, and 0.15 mm height is ideal for compact PCB layouts in consumer electronics such as notebooks, tablets, mobile communication devices, and audio interfaces.
With an operating temperature range spanning -55°C to 125°C, this diode ensures reliability in diverse environmental conditions. It also features a maximum peak pulse current rating of 3 A and a typical ultra low dynamic resistance of 0.20 Ω for rapid clamping of transient events.
This bi-directional TVS diode from Infineon provides robust ESD protection, safeguarding components like keypads, touchpads, convenience keys, LCD displays, cameras, and audio lines against damaging surges.
Bi-directional diode configuration with single element per chip. Surface mount WLL-2-1 package type with 2 pins. Low capacitance and leakage current suited for multimedia and communication devices. Wide temperature operating range for industrial and consumer product reliability.
45 W peak pulse power for transient suppression in sensitive electronics. Compact dimensions for space-efficient PCB design. Ideal for applications in portable and desktop electronic devices. Explore our extensive range of TVS Diodes and semiconductor components at EnvMart for your industrial and commercial electronics protection needs.
