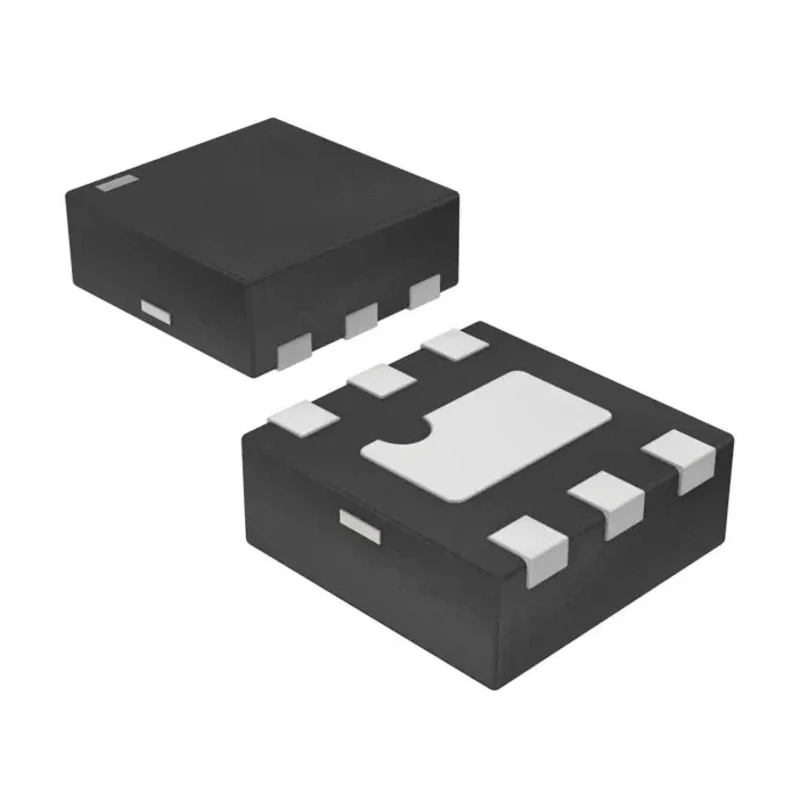

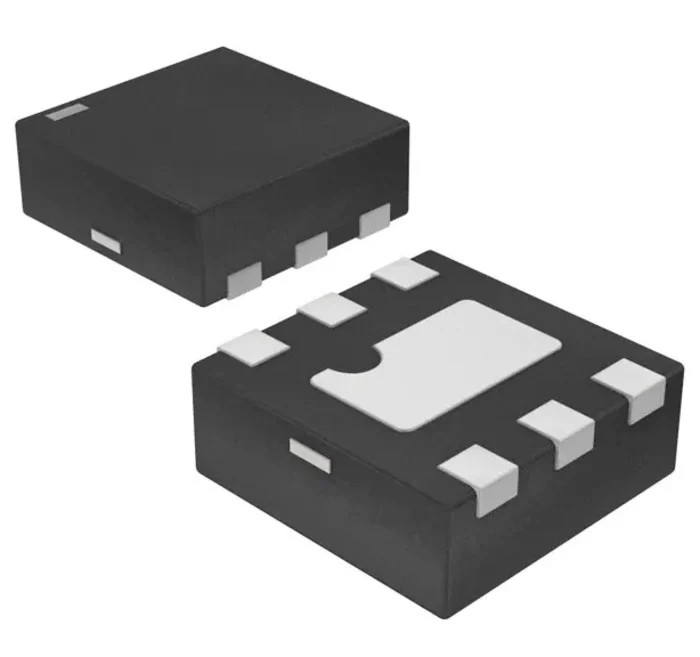

Vishay 3-Element Uni-Directional TVS Diode 54W 7-Pin LLP75 VBUS053CZ-HAF-G-08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Model | VBUS053CZ-HAF-G-08 |
| Mount Type | Surface |
| Series | VBUS |
| Maximum Operating Temperature | 125°C |
| Package Type | LLP75 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Number of Elements per Chip | 3 |
| Clamping Voltage VC | 12V |
| Diode Configuration | Triple |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.5V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 54W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 20nA |
Key Features
- Triple diode configuration for enhanced circuit protection.
- Provides uni-directional transient voltage suppression up to 54W peak pulse power.
- Features a 7-pin LLP75 surface-mount package for compact installation.
- Minimum breakdown voltage rated at 6.5V with a maximum reverse stand-off voltage of 5.5V.
- Offers clamping voltage capability of 12V, supporting robust surge protection.
- ESD protection for sensitive electronics, rated for ±15kV air gap and contact discharge.
- Low leakage current and high maximum peak pulse current of 3A for dependable performance.
- Wide operating temperature range from -40°C to 125°C ensures reliability in varied environments.
Product Description
The Vishay VBUS053CZ-HAF-G-08 is a high-performance 3-element uni-directional TVS diode, designed for circuit protection against fast voltage transients. It incorporates three individual diodes in a single chip, housed in a compact 7-pin LLP75 surface-mount package, making it ideal for PCBs where space is limited.
This diode is engineered for uni-directional transient voltage suppression, supporting a peak pulse power dissipation of 54W. Its triple diode configuration enables superior protection for multi-line applications, especially in sensitive electronic assemblies requiring robust surge management.
With a minimum breakdown voltage of 6.5V and maximum reverse stand-off voltage of 5.5V, the VBUS053CZ-HAF-G-08 maintains circuit integrity under unpredictable surge events. The device's clamping voltage capability of 12V provides further peace of mind against voltage spikes.
The diode includes ESD protection compliant with ±15kV air gap and contact discharge scenarios, safeguarding against static-induced failure. Its low leakage current (max 20nA) and high maximum peak pulse current of 3A ensure stable, reliable performance in demanding industrial and commercial applications.
Operating reliably across a wide temperature range from -40°C to 125°C, this TVS diode is suitable for deployment in environments subject to temperature extremes. Designed without automotive standard compliance, it is oriented toward electronics, semiconductors, and discrete device manufacturers.
Triple diode configuration assures enhanced transient voltage suppression. Surface-mount LLP75 package simplifies integration for PCB designers. Maximum operating temperature up to 125°C for industrial settings. Low leakage and robust pulse handling ideal for sensitive electronics.
Suitable for surge protection in communication, interface, and power supply circuits.
Applications include industrial and commercial electronics, PCB protection, semiconductor device manufacturing, and situations needing high energy surge protection. Explore further Vishay TVS Diodes for specialized requirements in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a peak pulse power dissipation of 54W, providing effective transient voltage suppression.
The clamping voltage capability of the VBUS053CZ-HAF-G-08 is 12V, which helps protect against voltage spikes.
The minimum breakdown voltage is rated at 6.5V, ensuring circuit integrity during surge events.
The maximum reverse stand-off voltage for this model is 5.5V, providing a safe operating limit for the device.
It can handle a maximum peak pulse current of 3A, ensuring robust performance under transient conditions.
The operating temperature range is from -40°C to 125°C, making it suitable for various environments.
This model features a triple diode configuration, incorporating three individual diodes in a single chip.
The VBUS053CZ-HAF-G-08 is housed in a 7-pin LLP75 surface-mount package for compact installation.
The maximum reverse leakage current is 20nA, indicating low power loss during operation.
It is suitable for surge protection in communication, interface, and power supply circuits, as well as industrial and commercial electronics.
This diode is uni-directional, designed specifically for transient voltage suppression in one direction.
The test current for this model is 1mA, which is used for evaluating its performance characteristics.
