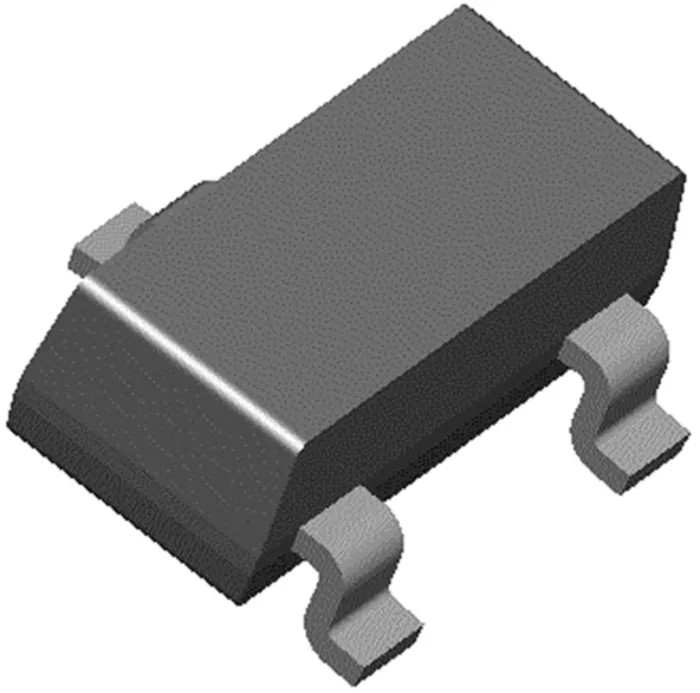

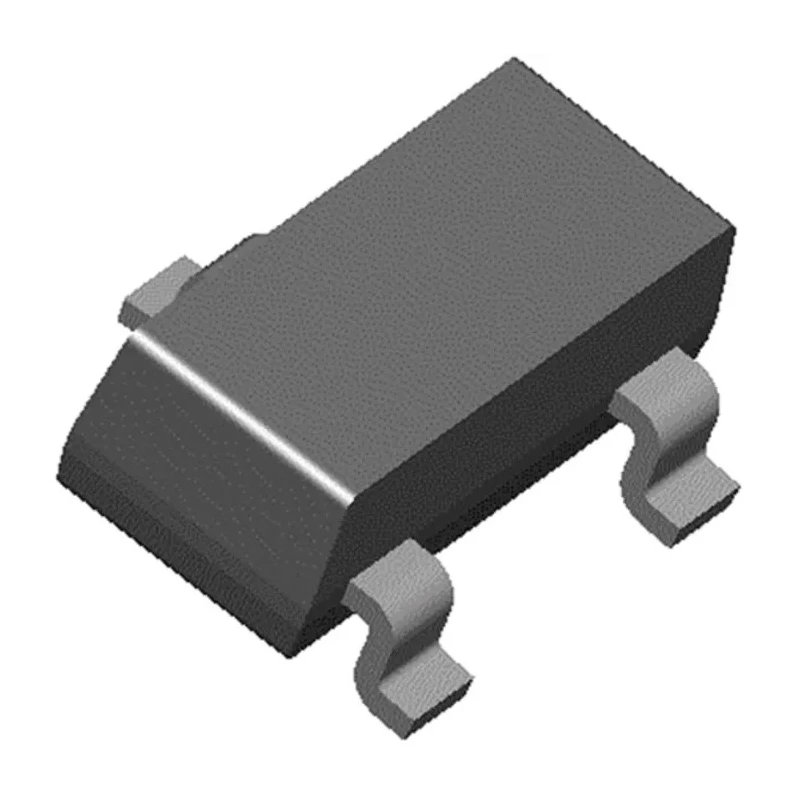

Taiwan Semiconductor Surface Hall Effect Sensor Bipolar 3-Pin SOT-23 2.5 V to 24V TSH188CX RFG
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Taiwan Semiconductor |
| Response time | 0.45μs |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | TSH188CX RFG |
| Technology | Chopper-Stabilised DMOS |
| Sensor Type | Hall Effect Sensors |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | TSH188 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 5mA |
| Magnetic Type | Bipolar |
| Maximum Frequency Response | 69kHz |
Key Features
- Features bipolar magnetic sensing for accurate detection.
- Integrates chopper-stabilised DMOS technology for improved stability.
- Compact SOT-23 package with 3 pins suitable for surface mounting.
- Operates reliably within -40°C to 125°C temperature range.
- Response time of 0.45 microseconds enables fast switching applications.
- Maximum frequency response up to 69 kHz for dynamic sensing performance.
- Low supply current of 5 mA for efficient operation.
- Designed without automotive standard certifications but suitable for general motion sensor IC applications.
Product Description
Taiwan Semiconductor TSH188CX RFG Surface Hall Effect Sensor is a high-performance sensor IC used for magnetic field detection and switching applications. It features bipolar magnetic sensing technology combined with chopper-stabilised DMOS circuitry, ensuring superior stability and sensitivity in detecting magnetic fields.
This sensor operates within a supply voltage range of 2.5 V to a maximum of 24 V, making it suitable for various industrial and commercial electronics applications requiring precise magnetic sensing.
Packaged in a compact SOT-23 surface mount device with 3 pins, the sensor facilitates easy integration into compact PCB layouts where space conservation is critical. Its small physical dimensions of 2.9 mm length, 1.6 mm width, and 1.1 mm height enable use in miniature electronic assemblies.
The sensor is designed to operate reliably across an extended temperature range from -40°C to 125°C, supporting demanding environmental conditions in industrial, automotive (non-certified), and instrumentation sectors. The fast response time of 0.45 microseconds and maximum frequency response of 69 kHz make it well-suited for dynamic motion sensing and switching tasks.
Features bipolar magnetic sensing for accurate detection. Employs chopper-stabilised DMOS technology for enhanced signal stability. Compact SOT-23 3-pin surface mount package for ease of PCB integration. Wide operating temperature range from -40°C to 125°C for robust performance.
Fast response time of 0.45 μs enables quick switching. Maximum frequency response of 69 kHz supports dynamic sensing applications. Low supply current of 5 mA reduces power consumption. Physical size enables use in compact electronic assemblies.
Non-automotive certified but suitable for general motion sensor applications.
The TSH188CX RFG sensor finds applications in motion detection systems, electronic switches, proximity sensing, and other industrial and consumer electronics requiring reliable magnetic field sensing. Its design supports use in varied environments including instrumentation, industrial control, automotive electronics (non-certified), and general electronic component systems.
Country of origin is Taiwan, Province Of China. EnvMart offers this sensor as part of the Semiconductor Sensor ICs category, catering to industrial, electronic design, and laboratory inventory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2.5 V to a maximum of 24 V.
The response time of the TSH188CX RFG is 0.45 microseconds, enabling fast switching applications.
It has a maximum frequency response of 69 kHz, suitable for dynamic sensing performance.
This unit has a length of 2.9 mm, a width of 1.6 mm, and a height of 1.1 mm, making it compact for surface mounting.
It employs chopper-stabilised DMOS technology for improved stability and sensitivity in detecting magnetic fields.
The sensor operates reliably within a temperature range of -40°C to 125°C.
This model features a 3-pin configuration, suitable for surface mounting.
It utilizes bipolar magnetic sensing technology for accurate detection of magnetic fields.
The supply current for this sensor is 5 mA, which contributes to its efficient operation.
This sensor is designed without automotive standard certifications but is suitable for general motion sensor applications.
It is suitable for applications such as motion detection systems, electronic switches, and proximity sensing in various electronic devices.
The country of origin for this sensor is Taiwan, Province Of China.
