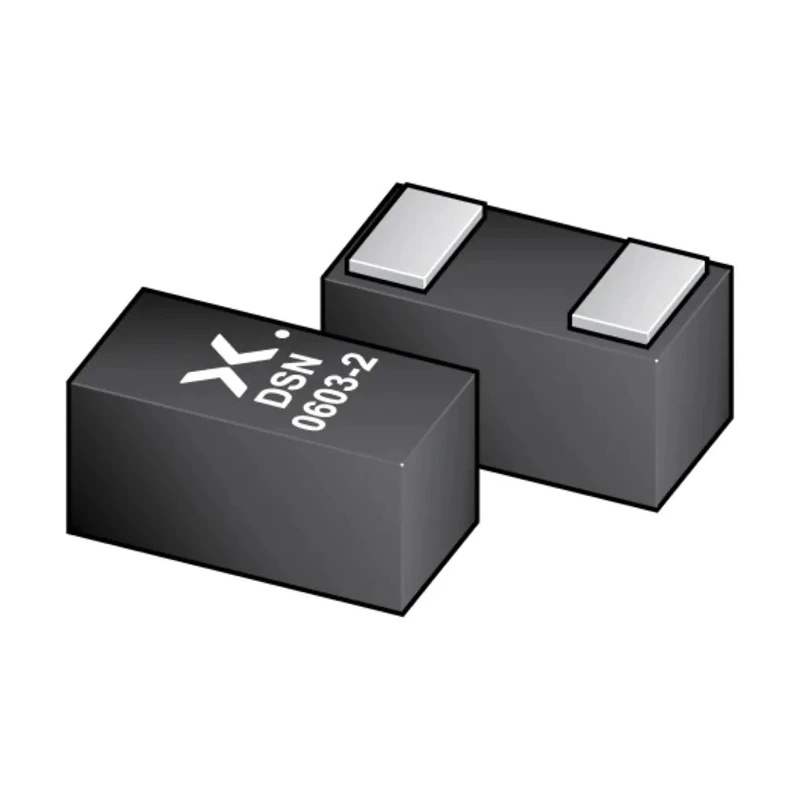

Nexperia 2-Element Bi-Directional ESD Protection Diode 2-Pin DSN-0603 PESD5V0C1BSFYL

Nexperia PESD5V0C1BSFYL is a compact two-element bi-directional ESD protection diode engineered for safeguarding the most sensitive high-speed digital interfaces from electrostatic discharges. Featuring ultra low capacitance (Cd = 0.2 pF), this diode is built for applications requiring minimal signal distortion and reliable ESD mitigation in demanding industrial and consumer environments.

Packaged in an ultra small DSN-0603 (SOD962) leadless surface-mount device, the PESD5V0C1BSFYL allows integration into board layouts where space conservation is critical. Its dual-diode configuration supports bi-directional protection for a single high-speed line, making it ideal for USB, HDMI, display, and other fast communication interfaces.

The device supports a maximum breakdown voltage (Vbr) of 6V and a maximum reverse stand-off voltage (Vwm) of 5V, with a clamping voltage of 5.5V to efficiently dissipate transient surges. It can handle peak pulse currents up to 9A and ensures reliable operation across an extended temperature range (-40°C to 125°C). The reverse leakage current is limited to 50 nA, ensuring compatibility with sensitive electronics.

The PESD5V0C1BSFYL is part of Nexperia's TrEOS Protection family, optimized for high robustness against ESD pulses up to ±20 kV according to IEC 61000-4-2 standards. Its performance, ultra-low capacitance, and dual-chip design deliver both signal integrity and enhanced component durability.

Applications include ESD protection for mobile devices, industrial control equipment, consumer electronics, high-speed communication ports, medical instrumentation, and automotive electronics not requiring AEC-Q standard. Installation is straightforward with its DSN-0603 surface-mount footprint, supporting mass production in automated assembly.

This diode represents an essential component wherever ESD protection is mandatory for system reliability across manufacturing, laboratory instrumentation, commercial, and high-tech consumer devices.

Ultra low capacitance bi-directional ESD protection of one high-speed line. Dual-diode configuration for enhanced robustness and signal stability. Clamping voltage of 5.5V and breakdown voltage of 6V. Handles 9A maximum peak pulse current to protect critical circuits.

Suitable for tight PCB layouts with its DSN-0603 leadless SMD package. Extended operating temperature range for wide environmental compatibility. ESD protection up to ±20 kV as per IEC 61000-4-2. Minimal leakage current - ideal for sensitive chipsets.
