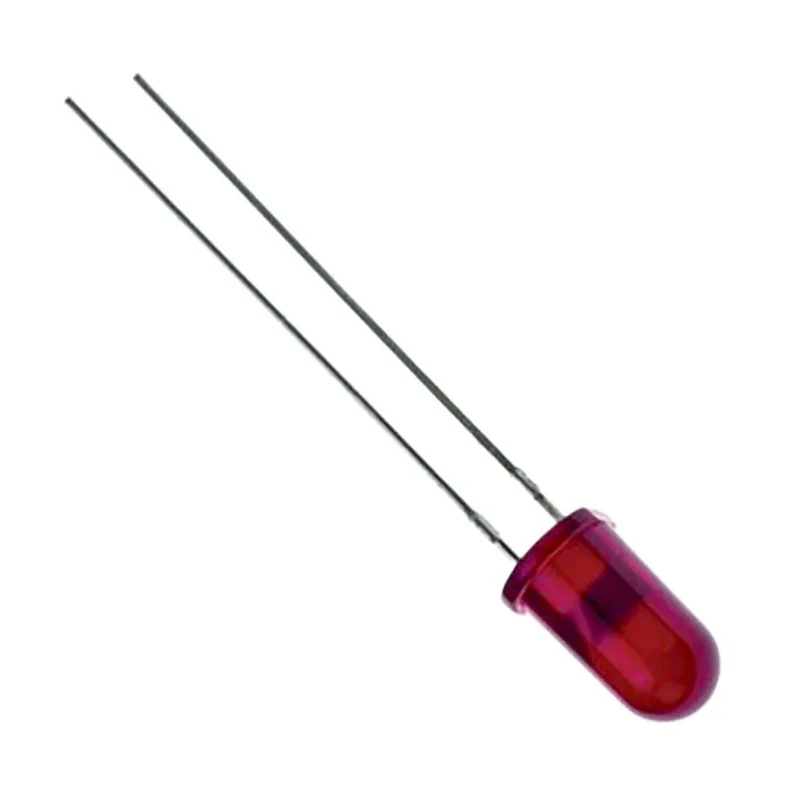

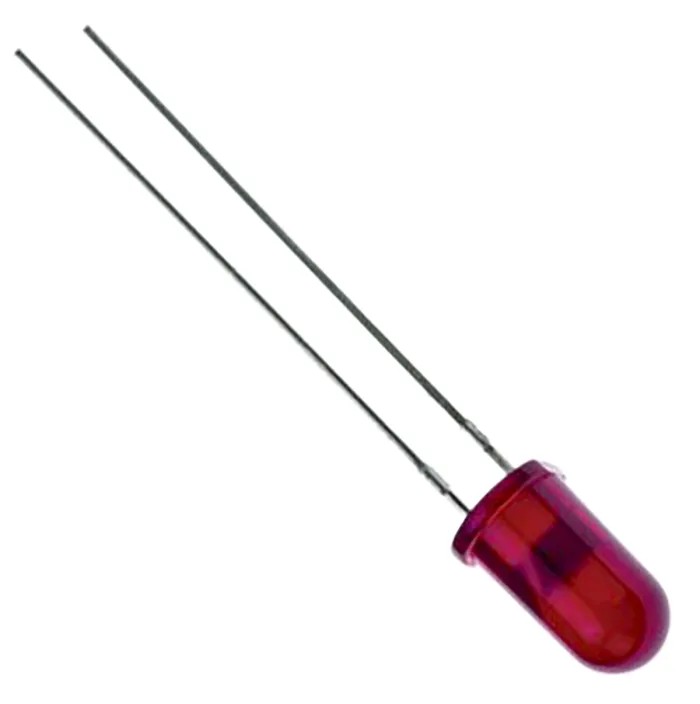

Broadcom Red LED 5 mm T-1 3/4 Through Hole, 1.7V, 7mA, 14mW, HLMP-4700
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HLMP-4700 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | HLMP |
| Maximum forward current | 7mA |
| Viewing angle | 50 ° |
| Package Type | 5 mm (T-1 3/4) |
| Lens Colour | Red |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.7V |
| Number of Pins | 2 |
| LED Luminosity | 2.3 mcd |
| Maximum Power Dissipation | 14mW |
| Lens Dimensions | 8.43 x 5.08 mm |
| Lens Shape | Round |
| Lens Finish | Tinted, Diffused |
| Avago1.7 V Red LED 5mm Through Hole, HLMP HLMP-4700Brand | Avago Technologies |
Key Features
- Provides clear red illumination at 1.7V forward voltage.
- Industry-standard T-1 3/4 (5 mm) round through hole package.
- Low current operation with a maximum forward current of 7mA.
- Wide 50° viewing angle for effective indicator visibility.
- Bulk packaging ideal for production and automated insertion.
- Lens is tinted and diffused for uniform light output.
- Operates with high efficiency and low power dissipation, 14mW max.
- Suitable for DC circuits, telecommunications, and keyboard indicators.
Product Description
The Broadcom HLMP-4700 is a red LED intended for use in a wide variety of indicator applications. Featuring a classic T-1 3/4 (5 mm) round through hole package, it is designed to provide brilliant red light at low currents, making it ideal for low-power and energy-sensitive installations.
This LED operates at a forward voltage of 1.7V with a maximum forward current rating of 7mA, resulting in a maximum power dissipation of only 14mW. Its tinted, diffused lens delivers uniform light output and a wide viewing angle of 50°, making it well-suited for applications requiring clear visibility from various directions. The LED has a dominant wavelength of 626nm, providing a vivid red illumination, while its 2.3 mcd luminosity ensures suitable brightness for indicator purposes.
With a robust through hole mount, the HLMP-4700 is easily integrated into printed circuit boards. The two-pin package is provided in bulk for convenient high-volume assembly and is compatible with automated insertion equipment. Its round lens shape, red tint, and diffused finish help reduce glare and ensure consistent, diffuse illumination in display panels.
The product meets RoHS standards, offering environmental compliance for manufacturers. Thanks to its CMOS-MOS and TTL compatibility, the HLMP-4700 can fit into digital circuits and logic-driven devices, while its low operating current makes it an excellent choice for power-limited applications.
Common use cases include functioning as a status indicator on telecom equipment, portable electronics, low-power DC circuits, and various consumer and industrial panels. The broad viewing angle and reliable electrical performance ensure that the device is ideal for both general signal indication and more specialized roles in custom assemblies. Whether used in manufacturing lines or in final products, this LED provides consistent, efficient, and versatile indicator capability.
Explore a full range of Broadcom optoelectronic solutions in the LEDs - Light Emitting Diodes category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HLMP-4700 LED operates at a forward voltage of 1.7V.
This model has a maximum forward current rating of 7mA.
It features a wide viewing angle of 50° for effective indicator visibility.
The maximum power dissipation for the HLMP-4700 is 14mW.
This model uses a through hole mounting type, making it suitable for integration into printed circuit boards.
The lens dimensions are 8.43 x 5.08 mm.
The dominant wavelength is 626nm, providing vivid red illumination.
The LED has a luminosity of 2.3 mcd, ensuring suitable brightness for indicator purposes.
It is provided in bulk packaging, which is ideal for production and automated insertion.
Yes, it meets RoHS standards for environmental compliance.
Common applications include status indicators on telecom equipment, portable electronics, and various consumer and industrial panels.
This LED has a two-pin package, facilitating easy integration into circuits.
