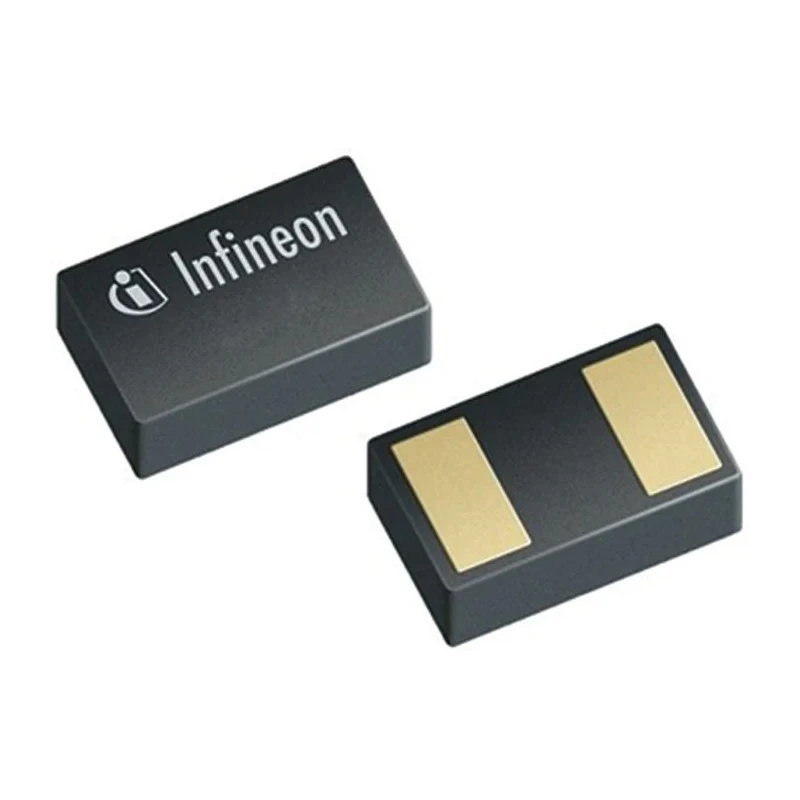

Infineon 1-Element Bi-Directional TVS Diode, 65 W, 2-Pin TSLP ESD207B102ELE6327XTMA1

Infineon ESD207B102ELE6327XTMA1 is a high-performance 1-element bi-directional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic equipment from electrostatic discharge (ESD) and transient voltage spikes. With a peak pulse power dissipation rating of 65 W, it effectively clamps and dissipates surge energy to prevent damage to downstream components.

This device features a single diode configuration housed in a compact 2-pin TSLP surface mount package, allowing for easy integration into modern PCB layouts focused on space savings. The bi-directional nature of the diode ensures comprehensive protection against both positive and negative transient voltage events.

The ESD207B102ELE6327XTMA1 operates reliably across a wide temperature range from -55°C to 125°C, making it well suited for automotive, industrial, and consumer electronics environments where temperature extremes may be encountered. Its low maximum reverse leakage current of 20 nA helps maintain circuit efficiency during normal operation.

The diode clamps transient voltages at 22 V and can handle peak pulse currents up to 5 A, enabling it to absorb significant transient energy without failure. Its test current of 10 mA ensures robust electrical characteristics for consistent device performance.

Physical dimensions of the diode are compact with a length of 1 mm, width of 0.6 mm, and height of 0.26 mm, facilitating dense PCB packing and lightweight designs. This TVS diode provides effective ESD protection in industrial manufacturing, automotive electronics, telecommunications, and other electronic assemblies requiring high-speed surge suppression.

Engineered by Infineon, a trusted brand in semiconductor protection devices, this model is part of the ESD series designed for superior transient voltage suppression. The diode’s surface mount technology enables automated assembly for improved production efficiency.

Choose the Infineon ESD207B102ELE6327XTMA1 for reliable transient voltage protection in electronic component design, ensuring enhanced device longevity and operational stability in critical applications.

Explore more advanced semiconductor and TVS diode solutions in the Electronics & Electricals category at EnvMart for your project and industrial requirements. Single diode configuration for precise voltage suppression. Bi-directional design protects circuits from positive and negative voltage spikes.

Compact 2-pin TSLP surface mount package suitable for flexible PCB mounting. Operating temperature range from -55°C to 125°C ensures durability in harsh conditions. Low leakage current of 20nA minimizes power loss during normal operation.

Clamp voltage of 22 V protects sensitive components from transient overvoltage. Peak pulse current capacity of 5 A for effective transient suppression. Designed for ESD protection in electronic circuits and industrial applications.

Compact dimensions: length 1 mm, width 0.6 mm, height 0.26 mm. Test current of 10 mA verifies diode performance under stress. Find related TVS Diodes and semiconductor devices within the EnvMart Electronics & Electricals catalog.
