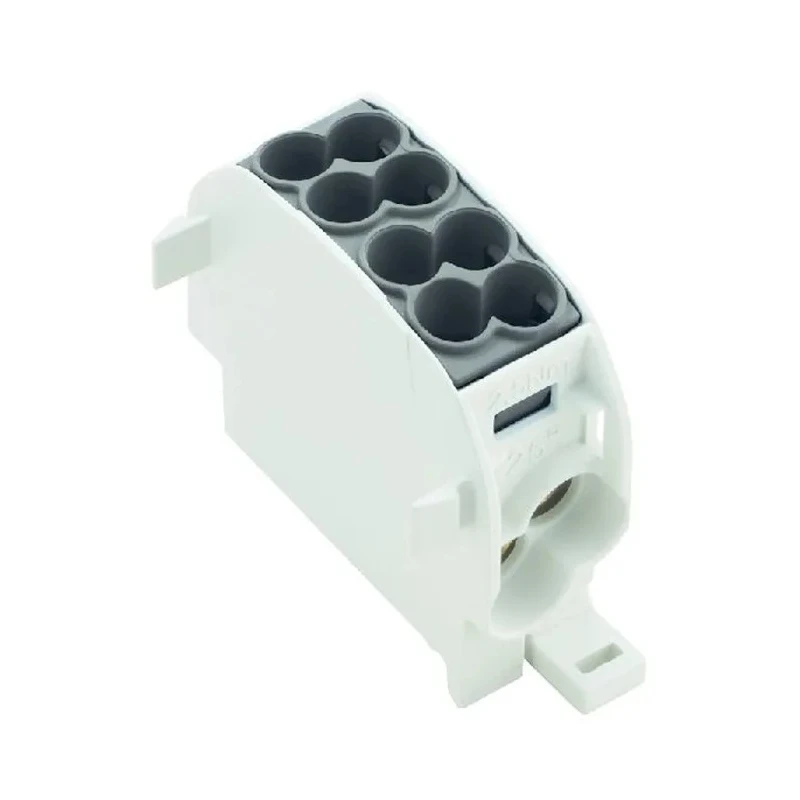

Weidmüller Distribution Block 2 Way 1 kV AC 1kV DC 152A Black 1561100000

Weidmüller 1561100000 distribution block is a precision-engineered electrical connector designed to provide safe and reliable power distribution. With 2 ways and a continuous current rating of 152A, it suits various industrial and commercial electrical installations requiring up to 1 kV AC and 1 kV DC voltage levels.

The housing is made of Wemid nylon 6.6, offering enhanced mechanical strength, thermal stability, and electrical insulation. This material is self-extinguishing to UL94V-0 standards, free from halogens and cadmium, ensuring environmentally safer usage and high fire resistance.

Featuring screw type terminations, the block secures conductor wires sized from 14 to 4 AWG efficiently. The terminals are specifically designed for mounting on symmetric 'Top Hat' DIN rails compliant with the BS5584:1978 and EN 50022 standards, simplifying installation and ensuring compatibility with standard industrial panel equipment.

Its compact footprint with dimensions of 55.7 mm height, 17.8 mm length, and 49.3 mm width allows for space-efficient integration into control panels and distribution boards. The product operates reliably over a broad temperature range from -50°C up to 130°C, making it suitable for harsh industrial environments.

The current bars inside are fabricated from 10 mm electrolytic copper to guarantee a current load exceeding nominal ratings for durability and performance. The touch-proof design compliant with BS 3042 protects users from electrical shock hazards during handling and maintenance.

This distribution block is ideal for power supply and distribution applications in manufacturing plants, electrical panels, automation systems, and other industrial installations where dependable and safe electrical connections are critical.

Suitable for distributing electrical power safely with 2 way screw termination. Constructed with high-quality Wemid housing material for durability and safety. Operational voltage rating of 1 kV AC and 1 kV DC supports diverse applications.

Designed to handle continuous current up to 152 amperes without compromise. Compact size with dimensions 55.7 mm height, 17.8 mm length, and 49.3 mm width. Operating temperature range from -50°C minimum to 130°C maximum for harsh environments.

Terminals mount on symmetric 'Top Hat' DIN rails following BS5584:1978 and EN 50022 standards. Self-extinguishing nylon 6.6 construction ensures electrical insulation and fire safety. Touch proof design compliant with BS 3042 enhances user safety during installation and maintenance.
