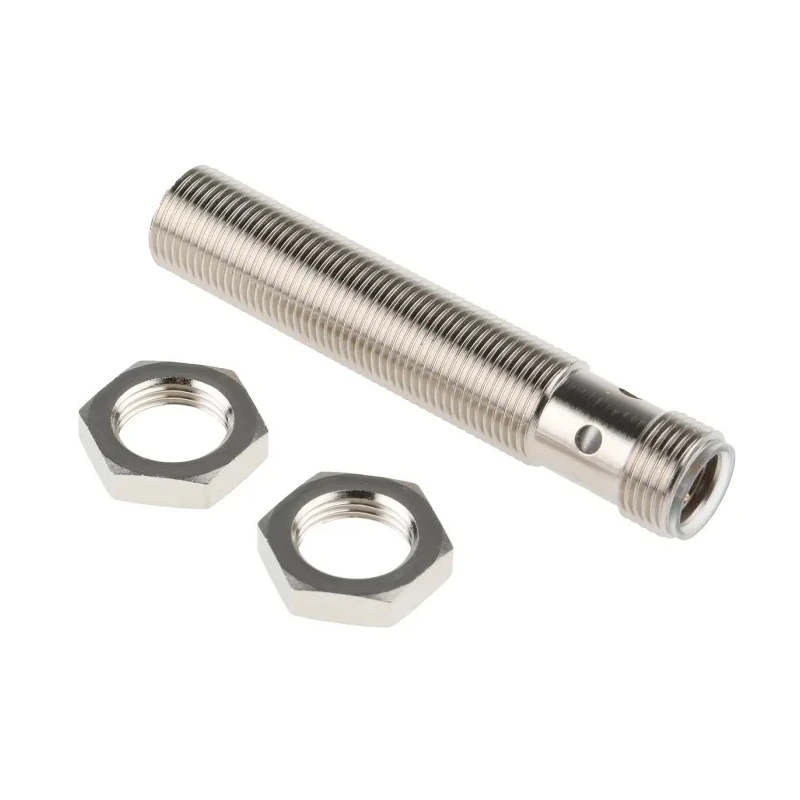

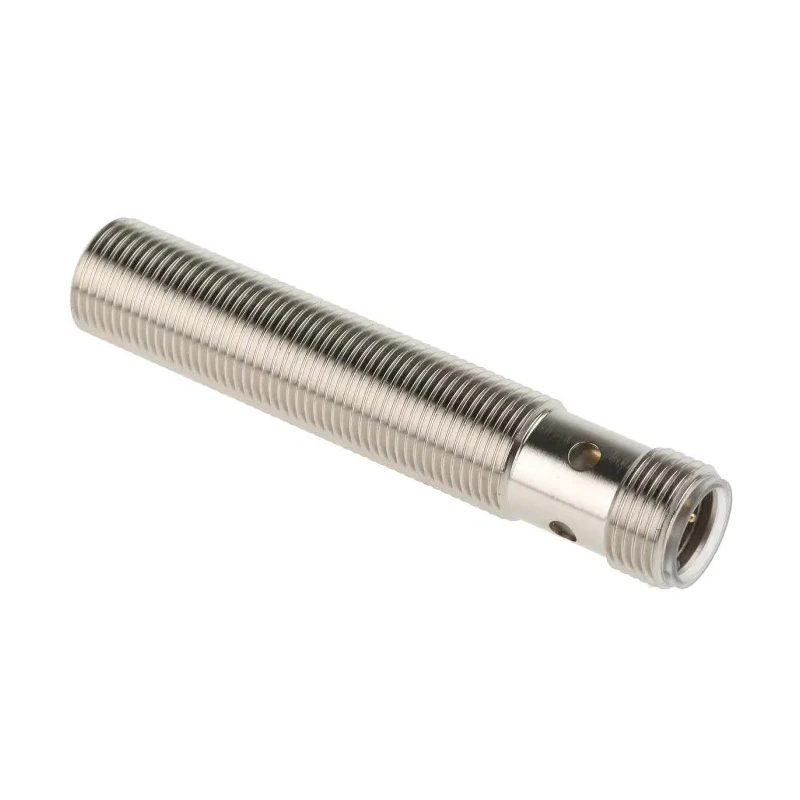

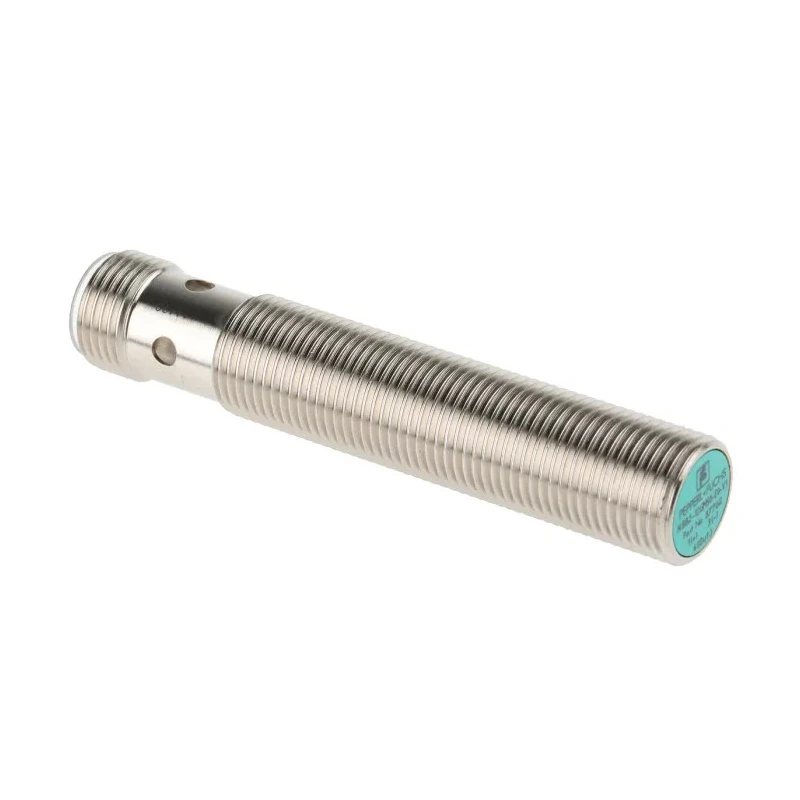

RS PRO Threaded Barrel Inductive Proximity Sensor M12 NPN 36V 2 mm 200mA NBB2-12GM50-E0-V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 65mm |
| Model | NBB2-12GM50-E0-V1 |
| Depth | 12mm |
| IP Rating | IP68 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | NPN |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 3.5kHz |
| Standards/Approvals | DNV GL rules for classification - Ships |
| Maximum Supply Voltage | 36V |
| Materials Detected | Inductive |
| Maximum Detection | 2mm |
| PLUG IN PROX SW. M12 NPNBrand | NEUTRAL |
Key Features
- The sensor features a brass white bronze coated housing for durability and corrosion resistance.
- Compact M12 threaded barrel body style with a length of 65 mm and width of 12 mm.
- Supports a maximum supply voltage of 36 V dc and switching current up to 200 mA.
- Provides ingress protection rating IP68 suitable for harsh industrial environments.
- Operates within an ambient temperature range from -40°C to 85°C.
- Equipped with NPN output type and shielded switching for precise inductive material detection.
- Maximum switching frequency of 3.5 kHz enables rapid response in automation applications.
- Flush mount type for embeddable installation in industrial machinery.
Product Description
Pepperl + Fuchs NBB2-12GM50-E0-V1 is a high-performance threaded barrel inductive Proximity Sensor designed for industrial automation and control applications. It features a robust brass housing with white bronze coating to ensure long-lasting corrosion resistance and mechanical stability in demanding environments.

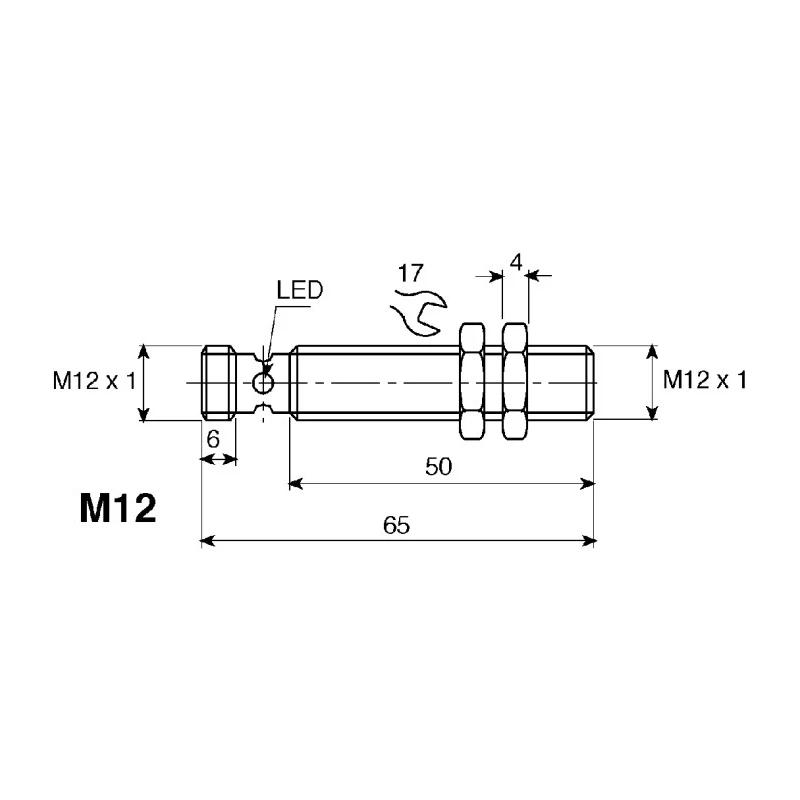

This sensor accommodates flush mounting, with a compact M12 threaded barrel form factor measuring 65 mm in length and 12 mm in diameter, making it suitable for installation into confined spaces. Its detection capabilities span a maximum of 2 mm for inductive materials, leveraging a shielded sensing face for high precision and noise immunity.

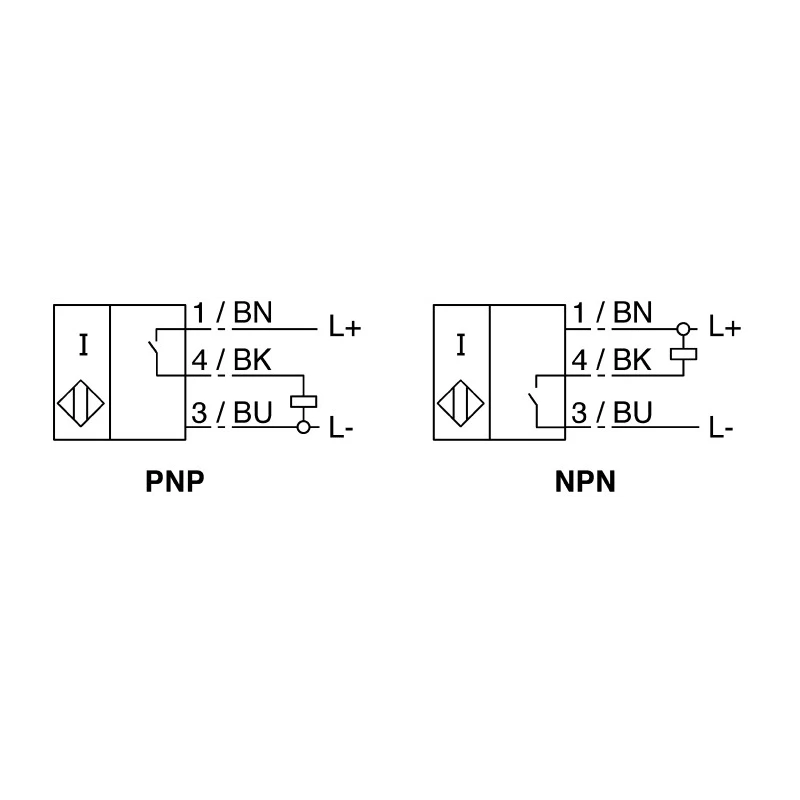

Powering the sensor requires a maximum operating voltage of 36 V dc, supporting a switching current of up to 200 mA and a maximum switching frequency of 3.5 kHz for real-time object detection in fast industrial processes. The NPN output type enables easy integration with standard industrial control systems.
Designed for reliability under harsh conditions, the sensor carries an IP68 ingress protection rating, ensuring resistant to dust and water ingress even under continuous submersion. It operates reliably across a wide temperature range from -40°C to 85°C, making it versatile for various industrial environments, including automation systems, manufacturing lines, and shipboard machinery compliant with DNV GL classification rules.
The sensor is embedded flush with surrounding materials to prevent false triggers and mechanical damage. LED indication allows easy status monitoring of sensor operation. Offers short circuit and reverse polarity protections to safeguard connected devices.
Proven suited for applications requiring robust, precise, and fast detection of metallic objects in automation and process control. Typical use cases span industrial automation, manufacturing equipment, conveyor systems, and safety interlocking.
Pepperl + Fuchs products excel in ruggedness and reliability, making the NBB2-12GM50-E0-V1 model an excellent choice for engineers seeking precision sensing solutions in industrial automation and control gear.
Explore more Pepperl + Fuchs sensors and proximity devices in the Electronics & Electricals > Sensors category at EnvMart for efficient procurement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range for this model is 2 mm for inductive materials.
This sensor operates with a maximum supply voltage of 36 V dc.
The RS PRO NBB2-12GM50-E0-V1 features an NPN output type for easy integration with industrial control systems.
It has an IP68 ingress protection rating, making it resistant to dust and water ingress, even under continuous submersion.
The sensor has a length of 65 mm and a diameter of 12 mm.
The maximum switching frequency is 3.5 kHz, allowing for rapid response in automation applications.
This model is designed to detect inductive materials.
The sensor operates reliably within an ambient temperature range from -40°C to 85°C.
It supports flush mounting, allowing it to be embedded into surrounding materials for precise installation.
The housing is made of brass with a white bronze coating for corrosion resistance and durability.
Yes, it includes short circuit and reverse polarity protections to safeguard connected devices.
The sensor complies with DNV GL rules for classification of ships, ensuring its suitability for marine applications.
