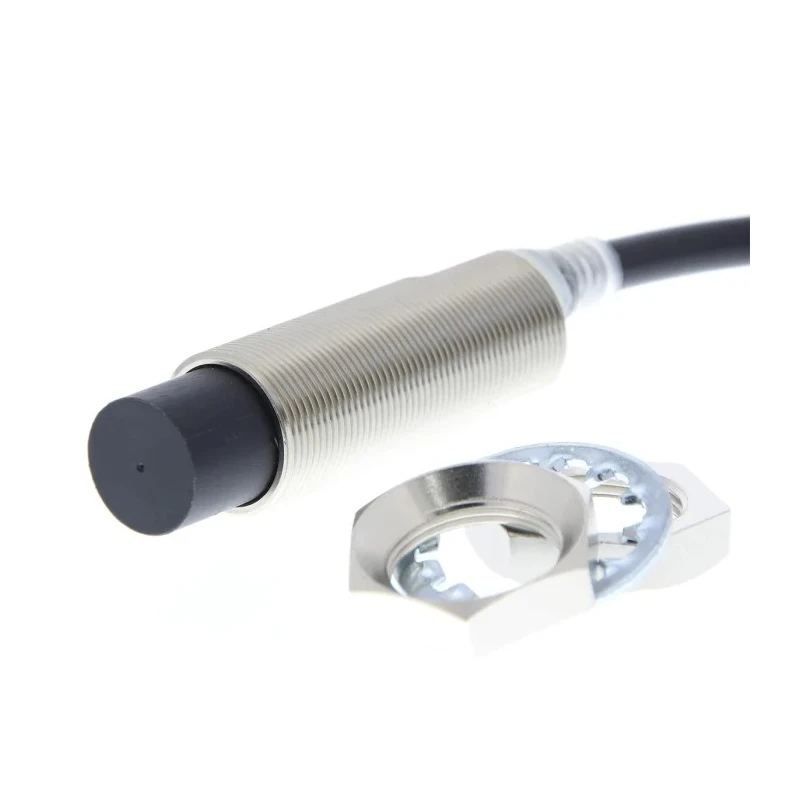

Omron Threaded Barrel Inductive Proximity Sensor M18 2-Wire 3V 20 mm Detection Range 30 V DC 100mA E2E-X20MD2L18-T 2M
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Length | 77.3mm |
| Model | E2E-X20MD2L18-T 2M |
| Depth | 29mm |
| IP Rating | IP67 |
| Width | 29mm |
| Mount Type | Non-Flush |
| Housing Material | Brass |
| Output type | 2-Wire |
| Series | E2E-NEXT |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 200Hz |
| Standards/Approvals | CE Certificate, CSA C22.2 No.14-13, UL 508, UL Certified |
| Maximum Supply Voltage | 3V |
| Materials Detected | Aluminium, Iron, Stainless Steel |
| Maximum Detection | 20mm |
Key Features
- Threaded M18 barrel design ensures easy mounting and installation.
- Operates with 2-wire output and a maximum switching current of 100mA.
- Equipped with high-brightness LED indicator visible from all directions.
- Unshielded sensor detects Aluminium, Iron, and Stainless Steel.
- Supports operating temperature range from -25°C to 70°C for harsh environments.
- IP67 rated housing made of durable brass for protection against dust and water.
- Maximum supply voltage of 3V and maximum DC voltage of 30V DC.
- Maximum switching frequency of 200Hz for responsive sensing.
Product Description
Omron E2E-X20MD2L18-T 2M is a high-precision threaded barrel inductive proximity sensor with a 20 mm detection range, designed for robust industrial automation applications. It features a rugged brass housing with IP67 protection, ensuring reliable operation in demanding environments.
The sensor utilizes advanced E2E-NEXT technology featuring Thermal Distance Control, which minimizes sensing distance variation caused by temperature changes, providing stable and consistent detection performance.
Its 2-wire unshielded design detects metallic targets including Aluminium, Iron, and Stainless Steel with a maximum switching current of 100mA at a supply voltage of 3V DC, ensuring energy-efficient operation.
The pre-cabled terminal and threaded M18 mounting enable quick and secure installation in non-flush applications. The sensor includes a 360° visible high-brightness LED indicator for easy monitoring of status.
Its operating temperature range of -25°C to 70°C allows use in harsh industrial, manufacturing, and automation environments. Compliance with standards such as CE, UL 508, and CSA C22.2 No.14-13 underlines its safety and reliability credentials.
Threaded barrel sensor with M18 thread size. Unshielded sensing head with 20 mm maximum detection. Durable brass housing and IP67 ingress protection. Operating voltage range up to 30 V DC with 3 V supply voltage. 2-wire output type with switching frequency up to 200Hz.
Pre-cabled terminal and non-flush mount type. Detects Aluminium, Iron, Stainless Steel metals. Suitable for industrial, manufacturing, and automation use cases.
This Omron inductive Proximity Sensor is ideal for precise metal object detection in automated production lines, robotics, conveyor systems, and quality control processes. It delivers robust performance and long service life in challenging industrial settings.
Discover a wide range of Omron sensors and automation products at EnvMart for your industrial detection and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum detection range of 20 mm.
The maximum switching current for this sensor is 100mA.
It can detect Aluminium, Iron, and Stainless Steel.
The operating temperature range is from -25°C to 70°C.
The sensor has an IP67 rating, providing protection against dust and water.
It operates with a 2-wire output type.
The housing is made of brass, ensuring durability.
The maximum supply voltage is 3V DC, with a maximum DC voltage of 30V.
It features a non-flush mount type with a threaded M18 design for easy installation.
The maximum switching frequency is 200Hz, allowing for responsive sensing.
It complies with CE, UL 508, and CSA C22.2 No.14-13 standards.
The sensor measures 77.3 mm in length and 29 mm in width.
