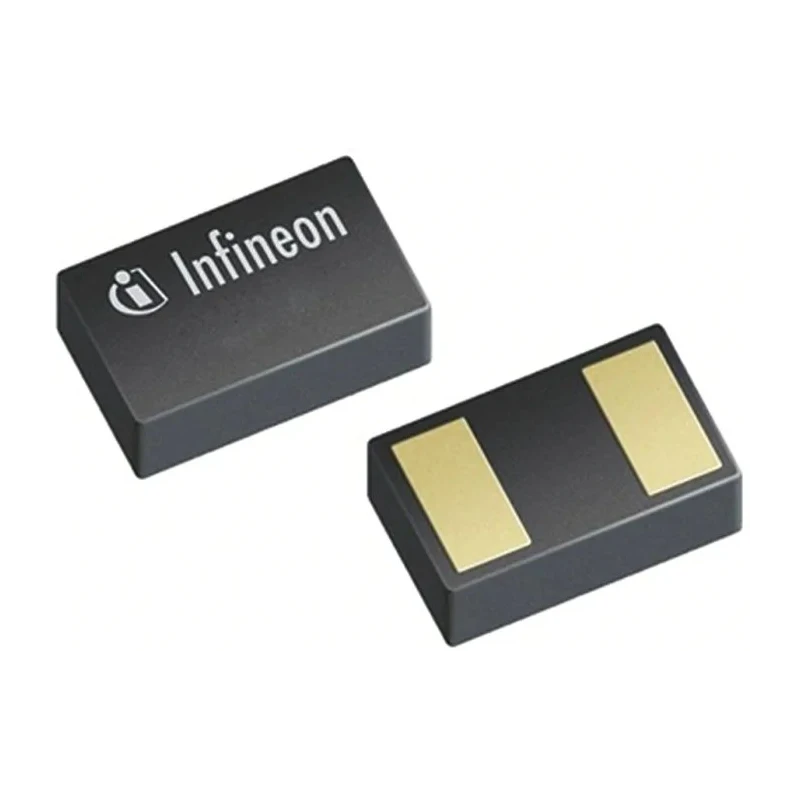

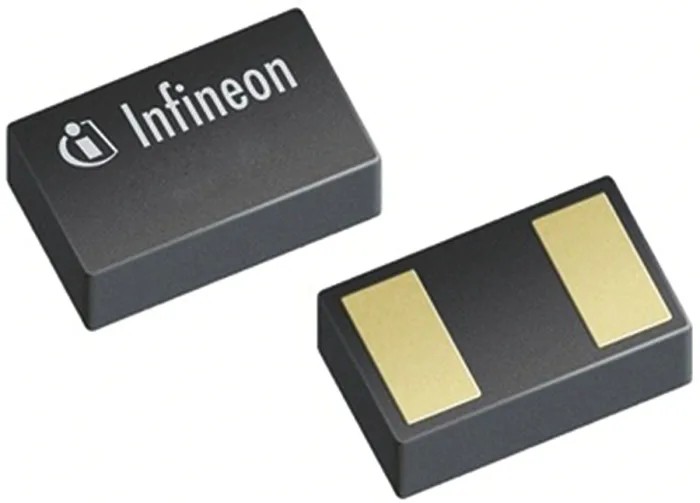

Infineon 1-Element Bi-Directional ESD Protection Diode 2-Pin TSSLP ESD103B102ELSE6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.26mm |
| Length | 0.62mm |
| Model | ESD103B102ELSE6327XTSA1 |
| Width | 0.32mm |
| Mount Type | Surface |
| Series | ESD |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSLP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 15V |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Single diode configuration ensures effective transient voltage suppression.
- Bi-directional design suitable for protecting circuits against voltage surges.
- Compact surface mount TSSLP package with dimensions 0.62mm x 0.32mm x 0.26mm.
- Maximum reverse stand-off voltage of 15 V and clamping voltage of 48 V for reliable performance.
- Operates across a wide temperature range from -55°C to 125°C.
- Peak pulse current capacity of 16 A supports high transient events.
- Extremely low leakage current of 50 nA enhances circuit stability.
- Designed for integration in sensitive electronic and semiconductor protection applications.
Product Description
Infineon ESD103B102ELSE6327XTSA1 is a 1-Element Bi-Directional ESD Protection Diode designed for protecting sensitive electronic components against electrostatic discharge and transient overvoltages. Housed in a compact 2-Pin TSSLP surface mount package, this diode offers effective transient voltage suppression with a maximum reverse stand-off voltage of 15 volts and a clamping voltage of 48 volts. It delivers a maximum peak pulse current capacity of 16 amperes, ensuring robust protection during high-energy transient events.
This diode operates efficiently over a wide temperature span, from -55°C to 125°C, making it suitable for diverse industrial, automotive, and electronic applications. The device exhibits very low maximum reverse leakage current of 50 nanoamperes, contributing to circuit reliability and low power dissipation. Its single diode configuration and bi-directional capability allow protection of both positive and negative voltage spikes.
The small dimensions of 0.62 mm length, 0.32 mm width, and 0.26 mm height make it ideal for high-density PCB layouts in compact assemblies. This ESD Protection Diode is extensively used in semiconductor manufacturing, electronics assembly, communication devices, and automotive systems requiring reliable electrostatic discharge safeguarding.
Single diode configuration ensures effective transient voltage suppression. Bi-directional design suitable for protecting circuits against voltage surges. Compact surface mount TSSLP package with dimensions 0.62mm x 0.32mm x 0.26mm.
Maximum reverse stand-off voltage of 15 V and clamping voltage of 48 V for reliable performance. Operates across a wide temperature range from -55°C to 125°C. Peak pulse current capacity of 16 A supports high transient events.
Extremely low leakage current of 50 nA enhances circuit stability. Designed for integration in sensitive electronic and semiconductor protection applications.
This product is ideal for industrial, electronic, semiconductor, automotive, and communication equipment applications where high-speed ESD protection is required. Choose Infineon ESD103B102ELSE6327XTSA1 for reliable, robust, and efficient transient voltage suppression on your PCBs and electronic assemblies.
Explore more ESD protection components and semiconductor devices in EnvMart's comprehensive catalog to find the right solutions for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 15 V.
The clamping voltage for this model is 48 V.
It has a peak pulse current capacity of 16 A, which supports high transient events.
The dimensions of the TSSLP package are 0.62 mm in length, 0.32 mm in width, and 0.26 mm in height.
This model operates across a temperature range from -55°C to 125°C.
The maximum reverse leakage current is 50 nA, which enhances circuit stability.
This diode has a 2-pin configuration.
It uses a single diode configuration, which ensures effective transient voltage suppression.
Yes, this diode is designed as a bi-directional device, suitable for protecting against both positive and negative voltage surges.
It is suitable for applications in industrial, automotive, and communication equipment where high-speed ESD protection is required.
This diode supports surface mounting, making it ideal for high-density PCB layouts.
This model belongs to the ESD series, specifically designed for electrostatic discharge protection.
