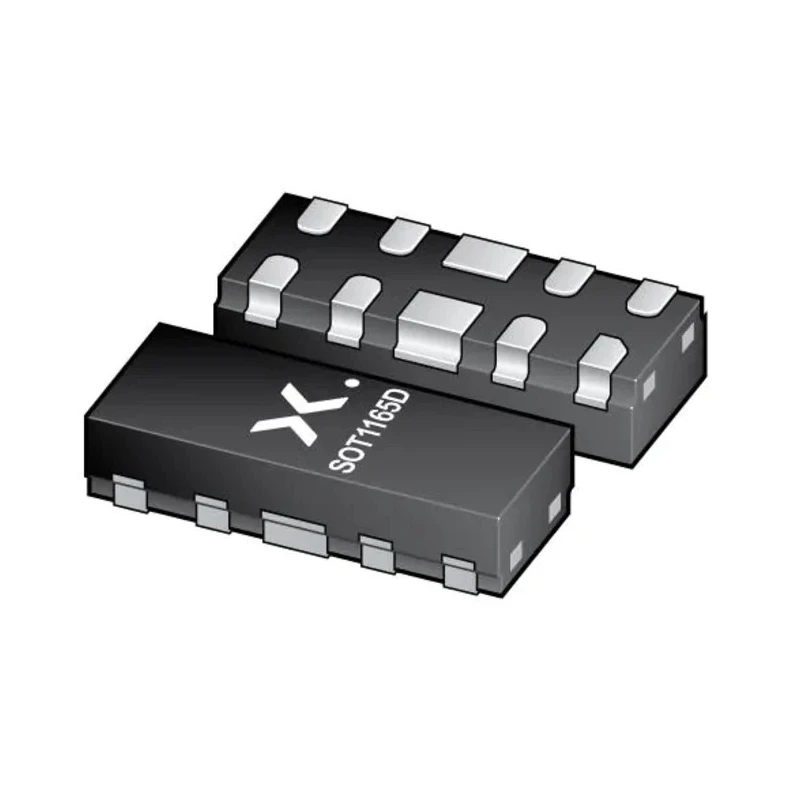

Nexperia Uni-Directional ESD Protection Device 10-Pin DFN2510D PESD4USB3U-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3U-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB3U |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for high-speed interfaces including USB 3.2, HDMI, and Display Port.
- Uni-directional protection with a minimum breakdown voltage of 6V.
- Compact DFN2510D package with 10 pins, suitable for surface mounting.
- High ESD protection level up to ±15 kV, compliant with ISO10605 and IEC61000-4-2 Level 4.
- Operating temperature range from -55°C up to 150°C for industrial applications.
- Low line capacitance of 0.5 pF per channel ensures signal integrity.
- Outstanding system protection with extremely deep snap-back and dynamic resistance of 0.4 Ω.
- Automotive standard certified AEC-Q101 for reliable use in automotive environments.
Product Description
The Nexperia PESD4USB3U-TTSX is a uni-directional ESD protection device housed in a compact 10-pin DFN2510D surface-mount package designed to safeguard high-speed electronic interfaces. It offers a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 3.3V to protect sensitive circuits against electrostatic discharge events.
With a robust maximum peak pulse current rating of 7A and a low clamping voltage of 3.5V, this device ensures excellent system protection while maintaining data signal integrity due to its low line capacitance of 0.5 pF per channel. It features an extremely deep snap-back characteristic combined with a dynamic resistance of 0.4 Ω for enhanced performance under transient conditions.
The device operates reliably across a wide temperature range from -55°C to 150°C and meets stringent automotive standards AEC-Q101, making it suitable for automotive audio-video monitors, displays, and camera systems. Its matched 0.5 mm trace spacing and side-wettable flanks facilitate ease of PCB layout and soldering.
This ESD protection device supports multiple interface types such as SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, external Serial ATA (eSATA), Low Voltage Differential Signalling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) applications.
Certified to industry standards ISO10605 and IEC61000-4-2 Level 4, the PESD4USB3U-TTSX provides reliable surge protection in demanding industrial, automotive, and consumer electronics contexts.
Designed for high-speed data interfaces including USB 3.2, HDMI, Display Port, and eSATA. Uni-directional ESD protection with clamping voltage of 3.5V enhances circuit safety. Low line capacitance prevents signal degradation in sensitive high-speed circuits.
Robust automotive qualification ensures suitability for vehicle infotainment systems. Surface mount DFN2510D package with 10 pins enables compact PCB design. Wide temperature range supports harsh industrial environments.
Complies with ISO10605 and IEC61000-4-2 standards for electrostatic discharge protection. Matched trace spacing and side-wettable flanks facilitate manufacturing and soldering. Suitable for consumer, automotive, industrial, and communication applications.
Explore other semiconductor and ESD protection devices available at EnvMart to meet your electronic design requirements.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 3.5V, which helps enhance circuit safety during electrostatic discharge events.
It has a maximum peak pulse current rating of 7A, providing robust protection against transient events.
This unit operates reliably within a temperature range from -55°C to 150°C, making it suitable for industrial applications.
The device complies with ISO10605 and IEC61000-4-2 Level 4 standards for electrostatic discharge protection.
It is housed in a compact 10-pin DFN2510D surface-mount package, which is suitable for PCB design.
The minimum breakdown voltage is 6V, which helps protect sensitive circuits from electrostatic discharge.
This ESD protection device supports multiple interfaces including USB 3.2, HDMI, Display Port, and eSATA.
It features a dynamic resistance of 0.4 Ω, enhancing performance under transient conditions.
The dimensions of this model are as follows: height is 0.75mm, length is 2.5mm, and width is 1mm.
It is certified to the automotive standard AEC-Q101, ensuring reliability in automotive environments.
The maximum reverse stand-off voltage is 3.3V, which protects sensitive circuits effectively.
The line capacitance is low at 0.5 pF per channel, which helps maintain signal integrity in high-speed applications.
