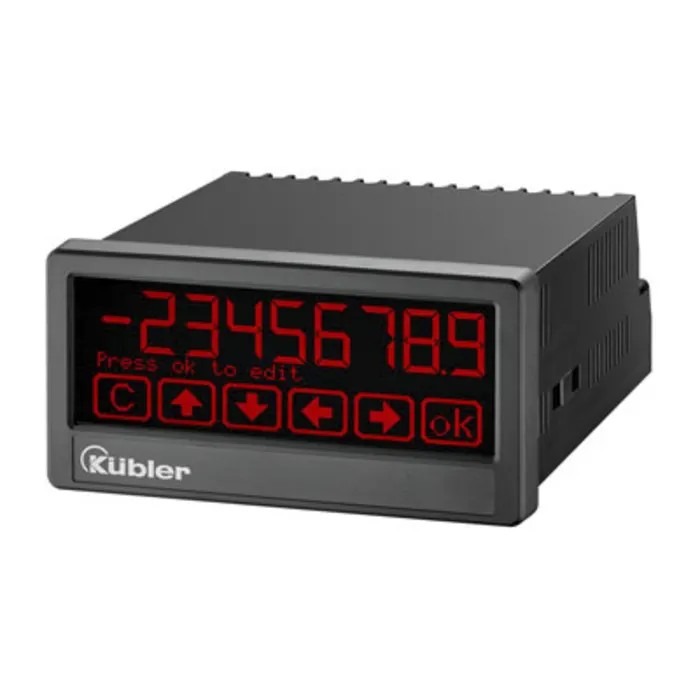

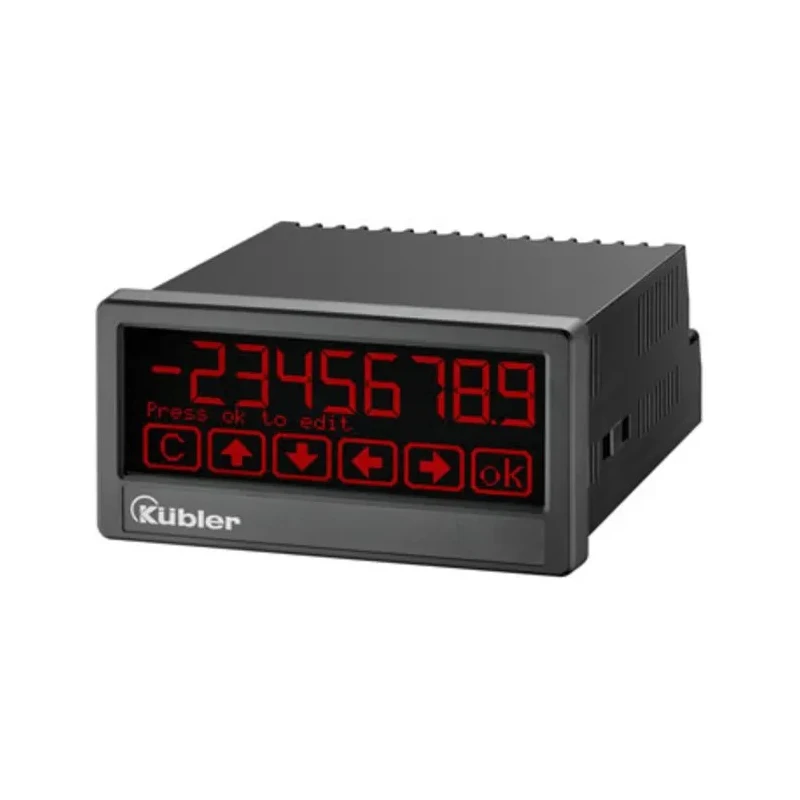

Kubler Multifunction Preset Counter Display Unit LCD 30V 6.571T.012.302

Free Delivery in India | Lowest Global Shipping Charges

Kubler Multifunction Preset Counter Display Unit LCD 30V 6.571T.012.302

Name: Kubler Multifunction Preset Counter Display Unit LCD 30V 6.571T.012.302
Brand: Kubler
SKU: 247710
Price: 521.53 USD
Availability: InStock



Category Counter Brand Kubler Condition New

Specifications

Country of Origin	Germany
Display Type	LCD
Brand	Kubler
Function	Counter
Model	6.571T.012.302
Depth	105mm
Gross Weight	200g
Maximum Operating Temperature	60°C
Minimum Operating Temperature	20°C
Maximum Supply Voltage	30V

Key Features

Supports fast counting tasks with up to 250 kHz count frequency.
Functions include tachometer, stopwatch, machine cycle time, and throughput time measurement.
Equipped with RS232 or RS485 serial interfaces for data communication.
Includes 2 relay outputs programmable to limit values and 4 switching outputs with tracking preset capability.
Features a large 13 mm high, 8-digit tri-color LCD display with adjustable brightness.
Operates in temperature range from 20°C to 60°C.
Compact 96 x 48 mm DIN housing for efficient panel installation.
Sensor power supply options include 24 V DC / 150 mA (AC version) or UB - 1 V / max. 250 mA (DC version).

Product Description

The Kubler 6.571T.012.302 multifunction preset counter display unit offers versatile and reliable counting functionalities ideal for industrial automation and electronic component applications. Featuring a fast count input supporting frequencies up to 250 kHz, it is well suited for tachometer readings, short time metering, stop-watch functions, and precise measurement of machine cycle or throughput times.

Constructed with a clear and bright 8-digit tri-color LCD display with 13 mm high digits and adjustable brightness, this device provides excellent readability and user-friendly menu-driven programming. The compact 96 x 48 mm DIN housing ensures easy integration into control panels and industrial environments.

The unit supports both AC and DC power supply within a single enclosure and includes sensor power supply options of 24 V DC / 150 mA or UB - 1 V / max. 250 mA, accommodating a wide range of sensors. Two relay outputs can be assigned to limit values, while four additional switching outputs offer programmable tracking presets for complex control tasks.

Communications are enhanced with serial interface options RS232 or RS485, facilitating data read and write operations for system integration and monitoring. A display linearization teach function enables customized calibration and improved measurement accuracy.

Operating reliably within a temperature range of 20°C to 60°C, the device is ideal for industrial automation, manufacturing process control, and electronic counting applications requiring precision and robustness. Manufactured in Germany, it ensures high build quality and long-term durability.

Supports fast counting up to 250 kHz. Multiple output relays and switching outputs for flexible control. Clear 8-digit tri-color LCD display with adjustable brightness. RS232/RS485 communication interface for easy data integration.

AC/DC combined power supply for versatile installation. Explore more industrial Counters and display units on EnvMart for your automation needs.
