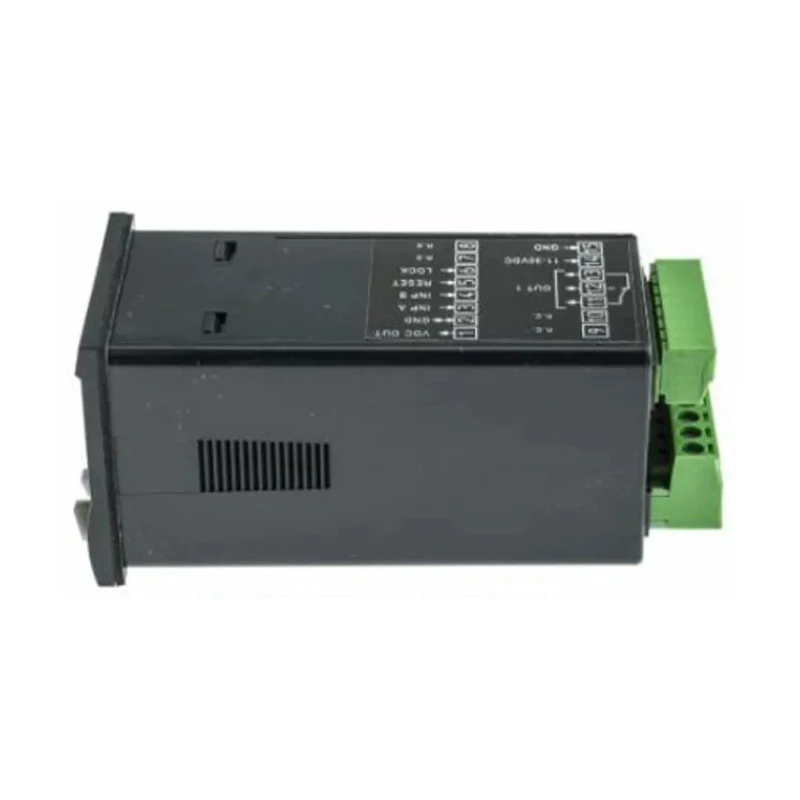

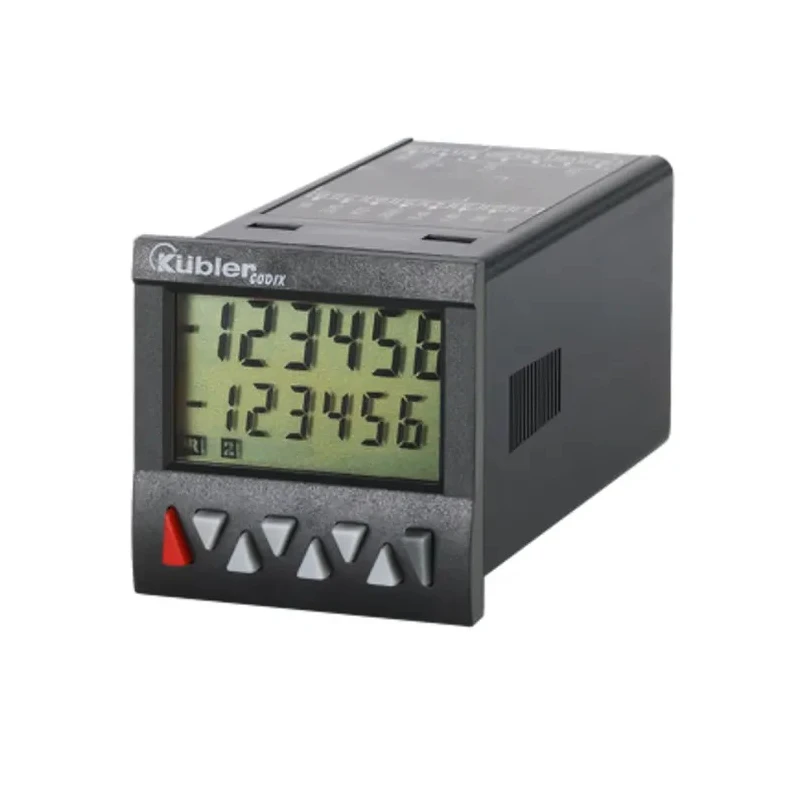

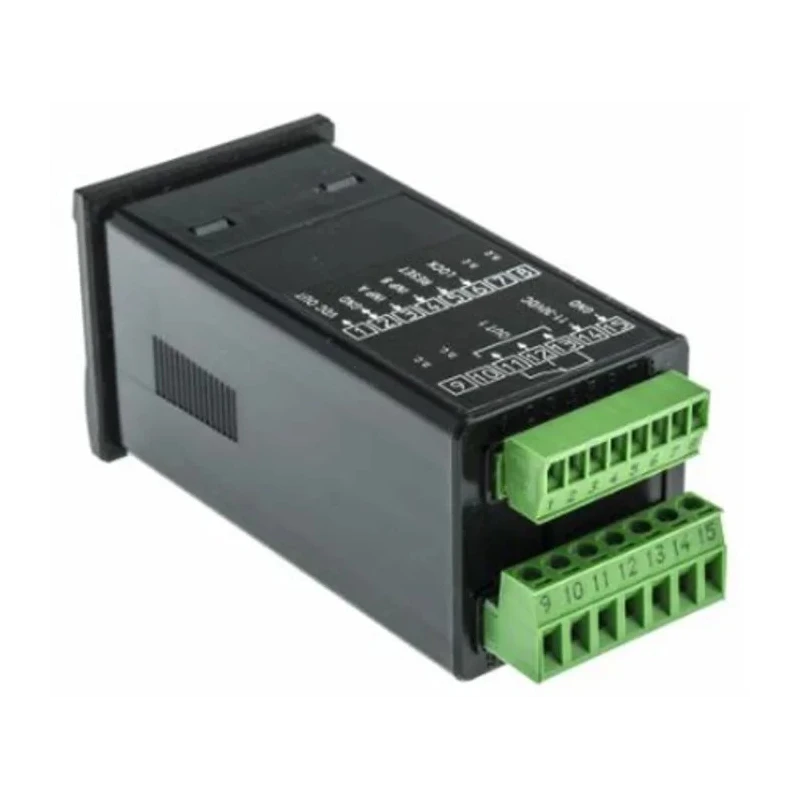

Kubler 12 Digit LCD Preset Panel Mount Counter, Lock Reset, Max Switching Voltage 250 Vac / 110 Vdc, 3 A 6.908.0100.3A0

Kubler 6.908.0100.3A0 Codix 908 is a sophisticated 12 digit LCD preset counter designed for panel mounting with a 48 x 48 mm cutout. It offers reliable lock reset functionality and supports complex counting tasks with pulse, time, and position counting modes, as well as adding and subtracting operations. The large 85 mm digit height enhances readability on the 2 x 6 digit display, which features preset annunciators for clearer status indication.

This counter operates within a maximum switching voltage of 250 Vac and 110 Vdc and can handle a max switching current of 3 A AC/DC, providing flexibility across various industrial electronics applications. The device’s high protection rating of IP65 at the front fascia guarantees durability even in harsh environments, making it suitable for industrial automation, manufacturing machinery, and process control systems.

The menu-driven programming is facilitated via a decade keypad for each digit, enabling easy setup and calibration to specific operational requirements. The counter’s range spans from -999999 to +999999, suited for applications demanding high-count accuracy.

Additional features include a maximum switching capacity of 750 VA / 90 W, ensuring robust performance under typical electrical loads. The Kubler CODIX 908 is engineered in Germany with CE certification compliance, reflecting adherence to strict quality and safety standards.

This counter is ideal for use in industrial, automation, manufacturing, and process monitoring environments requiring precise, durable, and user-friendly counting solutions. It retains data for more than ten years, providing long-term operational reliability.

Features a 12 digit display with 85mm digit height for clear visibility. Equipped with pulse, time, position, adding, and subtracting functions. Menu-driven programming with decade keypad for each digit. Dual 6 digit display with preset annunciators allowing values from -999999 to +999999.

High protection rating of IP65 ensuring durability in industrial environments. Supports max switching capacity of 750 VA / 90 W for versatile applications. Panel mounting dimension standardized at 48 x 48 mm for easy installation.

Data retention capability extends beyond 10 years, ensuring reliable operation. Explore a range of Kubler electronic Counters and automation tools at EnvMart for integration into your industrial control systems and manufacturing equipment.
