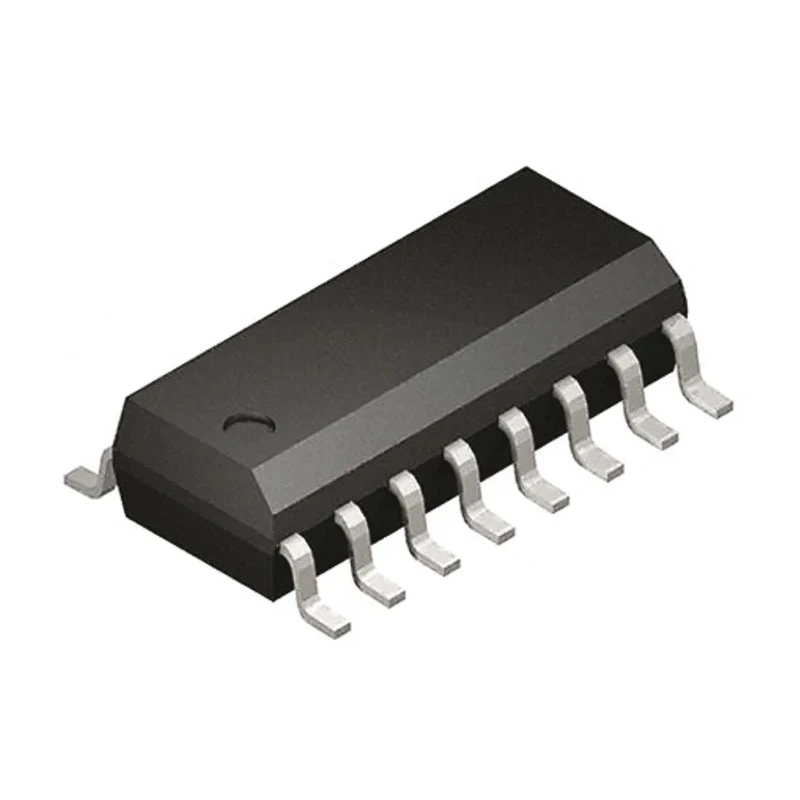

onsemi 12-Stage Binary Ripple Counter Logic IC MC74AC4040DG, AC, Single Ended, 16-Pin SOIC MC74AC4040DG

onsemi MC74AC4040DG is a 12-stage binary ripple counter logic IC designed for use in high-speed digital applications. This IC belongs to the 74AC family and supports operation with AC input signals in a single ended configuration, delivering precise counting capabilities in digital circuits.

Encapsulated in a 16-pin SOIC surface mount package measuring 10mm in length and 1.5mm in height, it is compact and integrates easily into PCB layouts. The device supports a wide supply voltage range from 2V to 6V, allowing flexibility in embedded and industrial environments.

Featuring a maximum clock frequency of 140MHz and a maximum propagation delay of 10ns, this IC enables high-performance timing and counting suitable for industrial automation, consumer electronics, and communication equipment.

The flip-flop type is configured as a counter with a negative edge clock trigger, suitable for synchronous operations. It is rated for operation across a wide temperature range from -40°C to 85°C to meet demanding environmental conditions.

Safety and reliability are confirmed by compliance with UL 94 V-0 flammability standards, making it a robust choice for electronic designs requiring certification. This logic IC belongs to the 74AC family and offers high-speed operation.

It features a 12-stage binary ripple counter with single ended input and output. The device is supplied in a compact 16-pin SOIC package with a length of 10mm and height of 1.5mm. Operating voltage ranges from 2V minimum to 6V maximum, suitable for various low voltage applications.

The maximum clock frequency supported is 140MHz, enabling fast counting rates. It has a maximum propagation delay time of 10ns at specified load conditions. Designed to operate reliably from -40°C to 85°C ambient temperatures.

Mount type is surface mount making it ideal for modern PCBs. This logic IC uses negative edge triggering, supporting accurate timing applications. Meets UL 94 V-0 flammability standards ensuring safety compliance.

This product finds application in industrial automation systems, digital electronics, communication devices, and other high-speed digital counting needs. Designers looking for dependable Counter ICs will benefit from the MC74AC4040DG’s performance and form factor. Explore more semiconductors and flip flop ICs in EnvMart’s extensive catalog for comprehensive industrial solutions.
