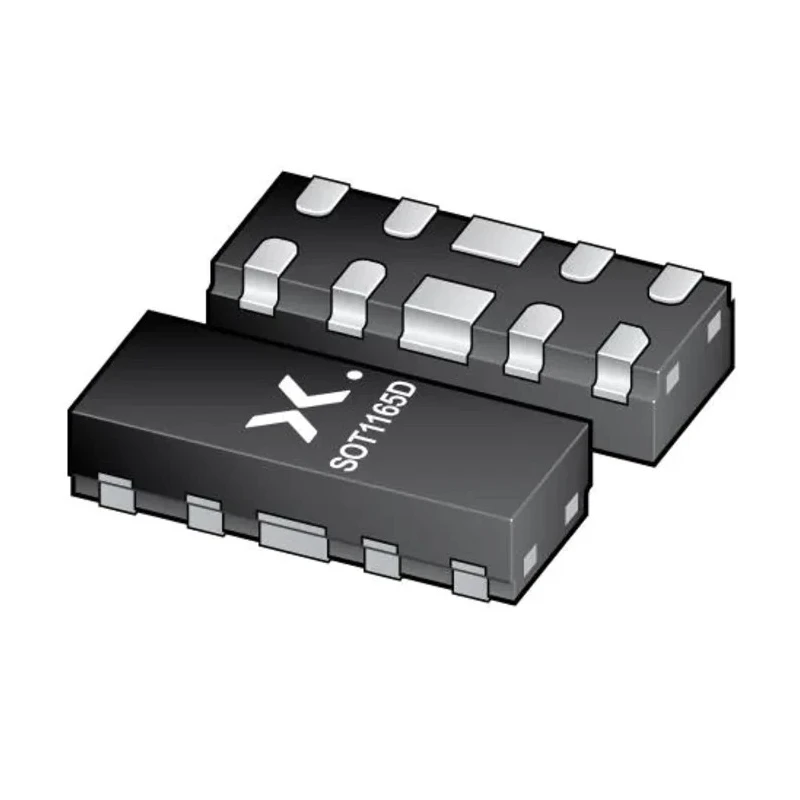

Nexperia Bi-Directional ESD Protection Diode, 10-Pin DFN2510D, 6V Breakdown Voltage, 7A Peak Pulse Current PESD4USB3B-TTS

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bi-Directional ESD Protection Diode, 10-Pin DFN2510D, 6V Breakdown Voltage, 7A Peak Pulse Current PESD4USB3B-TTS

Name: Nexperia Bi-Directional ESD Protection Diode, 10-Pin DFN2510D, 6V Breakdown Voltage, 7A Peak Pulse Current PESD4USB3B-TTS
Brand: Nexperia
SKU: 115511
Price: 0.58 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.75mm
Length	2.5mm
Model	PESD4USB3B-TTS
Width	1mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	DFN2510D
Minimum Operating Temperature	-55°C
Interfaces	USB 2
Standards/Approvals	ISO10605, IEC61000-4-2
Pin Count	10
Clamping Voltage VC	5.5V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	6V
Maximum Reverse Stand-off Voltage Vwm	3.3V
Maximum Peak Pulse Current Ippm	7A
Maximum Reverse Leakage Current	100nA
Infotainment applications	USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT

Key Features

Offers bi-directional ESD protection suitable for high-speed data interfaces.
Features a minimum breakdown voltage of 6V and maximum clamp voltage of 5.5V.
Designed with a 10-pin DFN2510D surface mount package for compact PCB layout.
Supports maximum peak pulse current up to 7A with low clamping voltage characteristics.
Operates over a wide temperature range from -55°C to 150°C.
Complies with automotive standard AEC-Q101 and industry standards ISO10605, IEC61000-4-2.
Applications include protection for USB 2.0, SuperSpeed USB 3.2 (10 Gbps), HDMI 2.0, DisplayPort, eSATA, and LVDS interfaces.
Package dimensions are 2.5 mm length, 1 mm width, and 0.75 mm height.

Product Description

Nexperia PESD4USB3B-TTS is a bi-directional ESD Protection Diode designed to safeguard high-speed signal interfaces such as SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, LVDS, and GMSL Serializer/Deserializer devices from electrostatic discharge. The device is implemented in a compact 10-pin DFN2510D surface-mount package, featuring a low line capacitance of 0.5 pF per channel, enabling signal integrity in sensitive data lines.

Built with advanced snap-back protection and dynamic resistance of 0.4 Ω, this diode ensures outstanding system-level protection against transient pulses. It supports a maximum peak pulse current of 7A and clamps voltage at 5.5V, with a minimum breakdown voltage of 6V and maximum reverse stand-off voltage at 3.3V. The component operates reliably within a temperature range of -55°C to 150°C, making it suitable for robust industrial and automotive applications.

This Nexperia diode meets the automotive standard AEC-Q101 as well as ISO10605 and IEC61000-4-2 anti-ESD certifications. It is ideal for infotainment applications including HDMI 2.0, HDBaseT, automotive AV monitors, cameras, and SerDes interfaces such as GMSL, FPD-Link, and LVDS. Its matched 0.5 mm trace spacing and side-wettable flanks ensure design-friendly pass-through signal routing on printed circuit boards.

Package dimensions are 2.5 mm (length) x 1 mm (width) x 0.75 mm (height), optimized for modern compact electronic assemblies. Offers bi-directional ESD protection for high-speed interfaces. Low line capacitance of 0.5 pF per channel preserves signal quality.

Compliant with automotive and industrial standards for durability and safety. Designed for compact PCB mounting with DFN2510D package. Reliable operation from -55°C to 150°C for harsh environments.

This product is well-suited for industrial, automotive, and electronic consumer applications where sensitive signal line protection is critical. Explore more Nexperia components and ESD protection solutions at EnvMart to enhance your electronic design projects.
