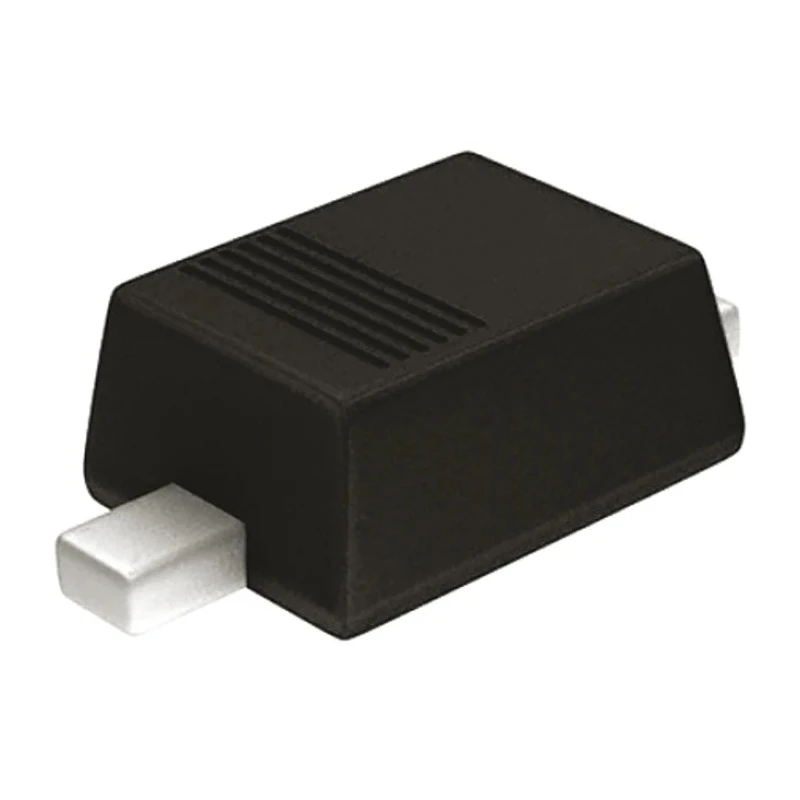

Nexperia 1-Element Uni-Directional ESD Protection Diode 600 W 2-Pin SOD-323 PESD12VS1UJ,115
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.8mm |
| Length | 1.8mm |
| Model | PESD12VS1UJ,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | PESD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 27V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 13.3V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 22.5A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Single-element diode configuration suitable for ESD protection.
- Uni-directional design ensures effective transient voltage suppression.
- Maximum peak pulse current of 22.5 A providing robust protection.
- Operational temperature range from -55°C to 150°C for versatile applications.
- Clamping voltage rating of 27 V for safe operation under transient conditions.
- Compact dimensions of 1.8 mm length, 1.35 mm width, and 0.8 mm height.
- Automotive standard AEC-Q101 compliant, ensuring high reliability.
- Surface mount design enabling easy PCB integration.
Product Description
Nexperia PESD12VS1UJ,115 1-Element Uni-Directional ESD Protection Diode with a rated peak pulse power dissipation of 600 W is engineered for transient voltage suppression in sensitive electronic circuits. Housed in a compact 2-Pin SOD-323 surface mount package, this diode ensures superior electrostatic discharge protection for one signal line.
The device features a single diode element with a uni-directional configuration, exhibiting a minimum breakdown voltage of 13.3 V and a maximum reverse stand-off voltage of 12 V. It delivers a peak pulse current of 22.5 A and clamps voltage at 27 V during transient events, safeguarding components against voltage spikes.
Designed for robust performance, it supports wide operating temperatures from -55°C up to 150°C and complies with the automotive AEC-Q101 standard, making it suitable for demanding industrial and automotive applications. Its minimal reverse leakage current of 100 nA ensures energy efficiency in high-reliability environments.
The diode measures 1.8 mm in length, 1.35 mm in width, and 0.8 mm in height, offering easy integration into densely packed PCBs. It is perfect for applications needing effective ESD protection like telecommunications, automotive electronics, industrial controls, and computing systems.
Single-element diode configuration suitable for ESD protection. Uni-directional design ensures effective transient voltage suppression. Maximum peak pulse current of 22.5 A providing robust protection. Operational temperature range from -55°C to 150°C for versatile applications.
Clamping voltage rating of 27 V for safe operation under transient conditions. Compact dimensions of 1.8 mm length, 1.35 mm width, and 0.8 mm height. Automotive standard AEC-Q101 compliant, ensuring high reliability. Surface mount design enabling easy PCB integration.
Maximum reverse leakage current of 100 nA minimizing power losses. Ideal for protecting sensitive electronics in industrial and automotive environments.
This diode is widely used in electronics manufacturing, automotive safety systems, and industrial machinery to protect critical components from electrostatic discharge damage. Explore comprehensive semiconductor and ESD protection solutions in the EnvMart Electronics & Electricals category for advanced industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse current of the Nexperia PESD12VS1UJ,115 is 22.5 A, providing robust protection against transient voltage spikes.
This diode operates within a temperature range of -55°C to 150°C, making it suitable for various applications in demanding environments.
The diode measures 1.8 mm in length, 1.35 mm in width, and 0.8 mm in height, allowing for easy integration into compact PCB designs.
The clamping voltage rating of this model is 27 V, ensuring safe operation during transient conditions.
It features a single-element diode configuration with a uni-directional design, which is effective for transient voltage suppression.
Yes, it complies with the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
The maximum reverse leakage current is 100 nA, which helps minimize power losses in high-reliability environments.
This diode is housed in a compact SOD-323 surface mount package, facilitating easy integration into electronic circuits.
The minimum breakdown voltage is 13.3 V, which is essential for ensuring effective protection against voltage spikes.
It is suitable for protecting sensitive electronics in telecommunications, automotive electronics, industrial controls, and computing systems.
The peak pulse power dissipation rating is 600 W, which indicates its capability to handle significant transient events.
This model has one element per chip, designed specifically for ESD protection in electronic circuits.
