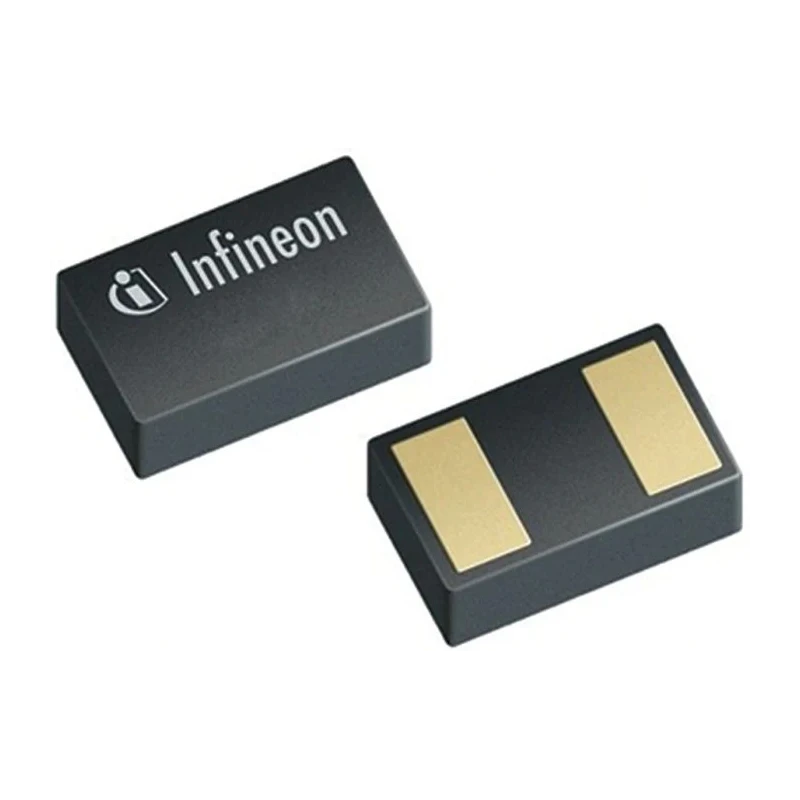

Infineon 1-Element Bi-Directional TVS Diode, 65 W, 2-Pin TSLP ESD207B102ELE6327XTMA1

Infineon ESD207B102ELE6327XTMA1 is a 1-element bi-directional transient voltage suppression (TVS) diode designed for high-speed electrostatic discharge (ESD) protection. It provides robust protection capable of dissipating peak pulse power of up to 65 watts, ensuring reliable defense against voltage transients that can damage sensitive semiconductor devices.

This diode is configured as a single device with a bi-directional direction type, making it suitable for AC and DC applications requiring bidirectional voltage clamping. It features a surface mount TSLP package measuring 1 mm in length, 0.6 mm in width, and 0.26 mm in height, ideal for compact PCB layouts in modern electronics manufacturing.

The diode has a minimum breakdown voltage of 3.65 V and a maximum reverse stand-off voltage of 3.3 V. The clamping voltage of 22 V protects circuitry by limiting transient voltages to safe levels. It operates effectively across a broad temperature range from -55°C to 125°C, enabling use in demanding industrial, automotive, and consumer electronic environments.

The peak pulse current rating of 5 A and a test current of 10 mA ensure stable operation under transient conditions, while the extremely low maximum reverse leakage current of 20 nA minimizes power dissipation and improves circuit efficiency.

Designed for high reliability, the product contains one element per chip and is part of Infineon's ESD series, optimized specifically for transient voltage suppression applications on sensitive electronic components. It lacks formal standards or automotive certifications but excels in transient protection roles.

Single element bi-directional TVS diode engineered for ESD protection. Suitable for industrial, automotive, telecommunications, and consumer electronics applications. High pulse power dissipation rating of 65 watts ensures strong transient protection.

Compact TSLP surface-mount package facilitates space-saving PCB design. Wide operating temperature range supports harsh operational environments. Low leakage current enhances energy efficiency in active circuits. Reliable clamping and breakdown voltages safeguard voltage-sensitive components.

Easy integration into automated manufacturing due to 2-pin design and reel packaging. Supported by Infineon's technical documentation and compliance guidelines.

This Infineon ESD207B102ELE6327XTMA1 diode is ideal for engineers and product designers seeking dependable transient voltage suppression components for electronic device protection. It plays a crucial role in increasing product durability, safety, and functional integrity across demanding applications.
