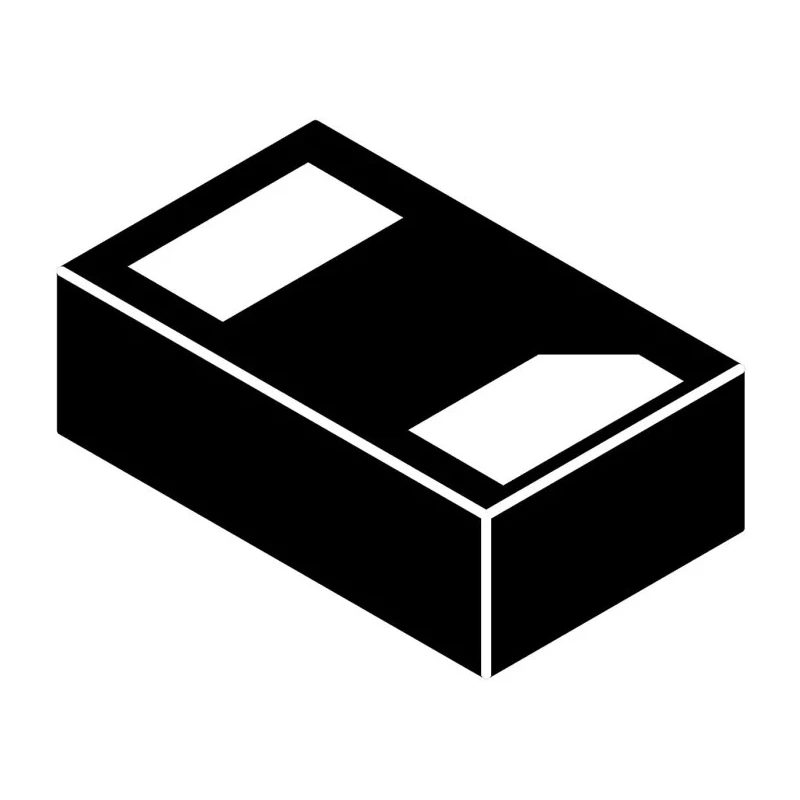

onsemi 1-Element Bi-Directional ESD Protection Diode 0.3W 2-Pin X2-DFN SZESD7462N2T5G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.35mm |
| Length | 1mm |
| Model | SZESD7462N2T5G |
| Width | 0.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | X2-DFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 47V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 16.5V |
| Maximum Reverse Stand-off Voltage Vwm | 16V |
| Peak Pulse Power Dissipation Pppm | 0.3W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- This diode features a single-element, bi-directional diode configuration.
- It provides 0.3 W peak pulse power dissipation for effective transient voltage suppression.
- Surface mount package in compact 2-pin X2-DFN form factor measuring 1mm x 0.6mm.
- Offers a minimum breakdown voltage of 16.5 V with a maximum reverse stand-off voltage of 16 V.
- Maximum peak pulse current rating of 16 A ensures robust surge protection.
- Operating temperature range is from -55°C to 150°C for harsh environment reliability.
- Complies with Automotive Standard AEC-Q101, suitable for automotive ESD protection.
- Maximum clamping voltage is 47 V to protect sensitive circuits.
Product Description
onsemi SZESD7462N2T5G is a high-performance 1-element bi-directional ESD Protection Diode optimized for automotive and industrial digital signal lines.
This device dissipates transient pulse power up to 0.3 watts, provided in a compact 2-pin X2-DFN surface mount package with dimensions of 1.0 mm length, 0.6 mm width, and 0.35 mm height.
It features a minimum breakdown voltage of 16.5 V and maximum reverse stand-off voltage of 16 V to ensure reliable clamping under surge conditions, with a maximum clamping voltage of 47 V.
With its maximum peak pulse current of 16 A and low reverse leakage current of 100 nA, it provides efficient protection against voltage spikes and electrostatic discharges. The diode operates reliably over a broad temperature range from -55°C to 150°C, meeting the stringent AEC-Q101 automotive industry standard for ESD protection devices.
This product is ideal for protecting sensitive electronic components in automotive, industrial control, and communication systems where electrostatic discharge is a concern. Single element bi-directional diode configuration.
Surface mountable 2-pin X2-DFN package. Handles peak pulse power of 0.3 W. Operates within a wide temperature range from -55°C to 150°C. Automotive-grade standard compliant - AEC-Q101. Low leakage current for minimal power loss.
High reliability for industrial and automotive applications. This diode is a component choice for automotive electrical systems, consumer electronics, industrial machinery, and communication devices requiring robust ESD protection.
Explore a wide range of semiconductor protection solutions and devices in EnvMart's comprehensive product catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of this diode is 0.3 watts.
The dimensions of the X2-DFN package are 1.0 mm in length, 0.6 mm in width, and 0.35 mm in height.
This model operates reliably over a temperature range from -55°C to 150°C.
The minimum breakdown voltage of this diode is 16.5 volts.
The maximum reverse stand-off voltage is 16 volts.
The maximum clamping voltage for this diode is 47 volts.
The maximum peak pulse current rating is 16 amperes.
This diode complies with the Automotive Standard AEC-Q101.
This diode has a pin count of 2.
This model features a single-element, bi-directional diode configuration.
The maximum reverse leakage current is 100 nA.
This diode is suitable for protecting sensitive electronic components in automotive, industrial control, and communication systems against electrostatic discharge.
